7 inch capacitive touch panel for industrial
1.Model number: 051ACSR070GG-V2.0 2.Application: Automotive, Smart control, Medical device, etc 3.Structure: Cover lens+Glass Sensor+FPC 4.Touch type: Multi touch 5.Certificates: RoHS, Reach, ISO9001
Description
Product Feature

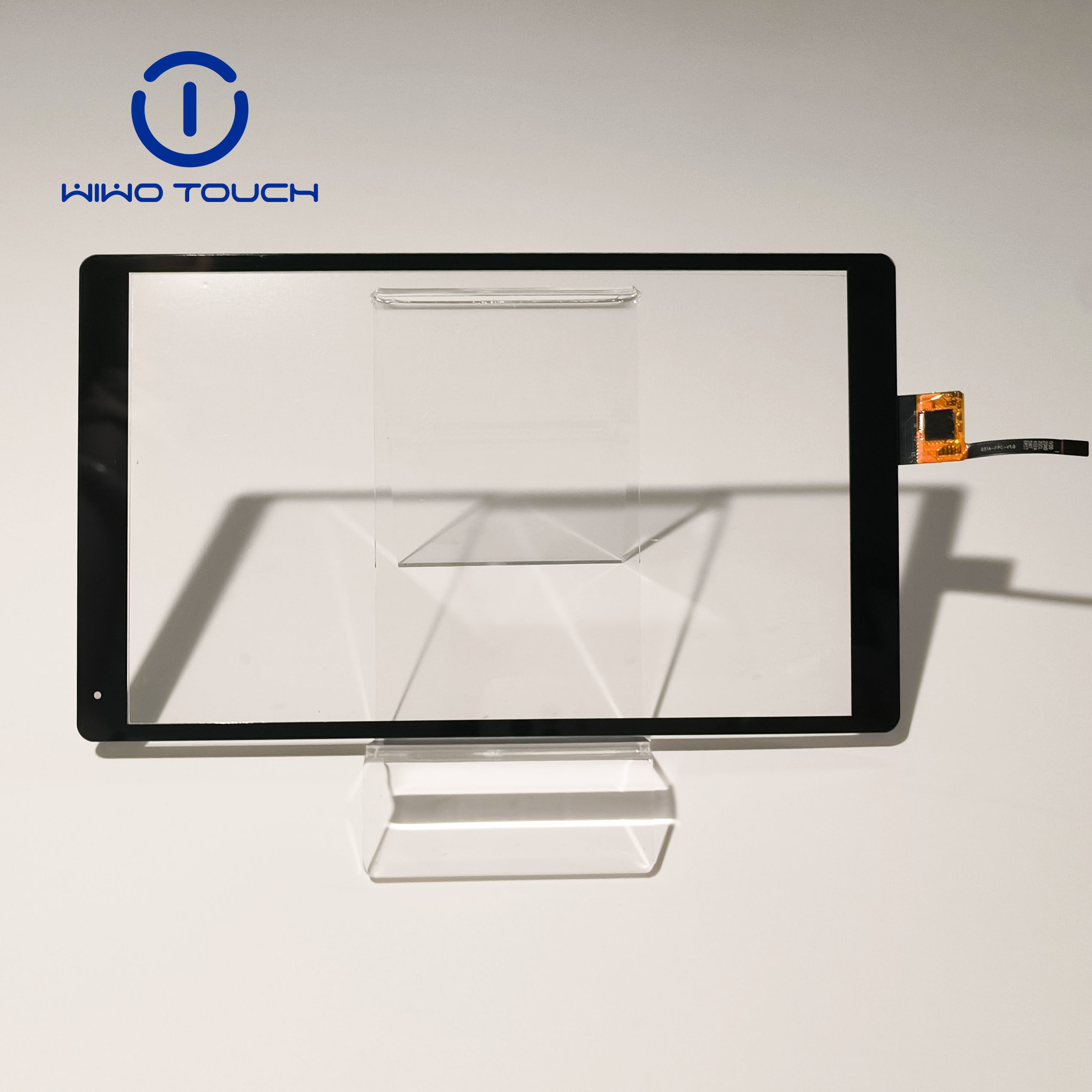

The 7 inch capacitive touch panel from WIWOTOUCH is built to withstand the toughest industrial conditions. With a PCAP (Projected Capacitive) touch technology, it provides 10-point touch functionality, ensuring precise and responsive operation.
Designed with ruggedness in mind, this touch panel can operate in extreme temperatures ranging from -20℃ to +70℃, and can be stored in environments from -30℃ to +80℃. It also handles humidity levels between 45～90%RH, making it suitable for diverse industrial settings.
The surface of the touch panel undergoes various treatments to enhance its performance in industrial environments:
- 1. AR (Anti-reflective) coating reduces glare, ensuring clear visibility even in bright conditions
- 2. AF (Anti-fingerprint) treatment keeps the surface clean, minimizing maintenance
- 3. AG (Anti-glare) technology further improves visibility in different lighting conditions
- 4. Waterproof feature protects against moisture damage
With a surface hardness of 6H, the touch panel is highly resistant to scratches and wear, ensuring a long lifespan even with heavy usage in industrial settings.
Product Parameter
| Product name | 7 inch smart control screen |
| Brand Name | WIWOTOUCH |
| Touch type | PCAP 10 points touch |
| Application | Industrial, Handheld device, Smart control, etc |
| Interface type | IIC/USB |
| Structure | Glass Lens+ITO Glass+FPC |
| Cover Glass Dimension | 172.5±0.15*102.5±0.15 mm |
| Cover Lens VA | 151.8±0.15*95.1±0.15 mm |
| Cover Lens Thickness | 0.7±0.05 mm |
| ITO Glass Thickness | 0.7±0.05 mm |
| Total Thickness | 1.78±0.1 mm |
| LCD resolution | TBD(As you need) |
| FPC | 6 PIN |
| IC Model | GT9286 |
| Transmittance | ≥85% |
| Surface Hardness | 6H |
| Operating Environment | -20℃~+70℃,≤45～90%RH |
| Storage Environment | -30℃~+80℃,≤45～90%RH |
| Operating Voltage | 2.8 V-3.3 V |
| Interface Voltage | 2.8 V-3.3 V |
| Surface treatment | AR(Anti-reflective); AF(Anti-fingerprint); AG(Anti-glare); waterproof |
| General Tolerance | ±0.2mm |
| Available operating systems | Android/Linux/Windows |
| Certificates | RoHS/Reach/ISO9001 |
| Sample delivery | 15 working days |
| Mass production delivery | 2-4 weeks, according to customer requirements, the delivery time is slightly changed |
| Guarantee period | 12 months |
| Packing | Plastic tray or antistatic bag or foam box or vacuum bag + carton |
Versatile Applications for Industrial Automation
This 7 inch capacitive touch panel is designed to meet the demands of various industrial applications:
- Industrial Automation: Perfect for use in control panels for manufacturing equipment, assembly lines, and production monitoring systems. Its rugged design ensures reliable operation in factory environments.
- Handheld Devices: Ideal for industrial handheld terminals used in logistics, warehouse management, and field service. The anti-fingerprint and anti-glare features maintain visibility even with frequent use.
- Smart Control Systems: Suitable for smart control applications in building automation, energy management, and HVAC systems. The multi-touch functionality allows for intuitive operation.
- Medical Equipment: With its high precision and easy-to-clean surface, the touch panel is suitable for use in medical devices and equipment.
Certified Quality for Global Compliance
Our 7 inch industrial touch panel meets the highest quality and safety standards, with the following certifications:
- 1. RoHS Certification: Ensures the product is free from hazardous substances, making it suitable for use in global markets.
- 2. REACH Compliance: Meets the European Union's regulations regarding chemical substances, ensuring safe handling and usage.
- 3. ISO9001 Certification: Demonstrates our commitment to quality management systems, ensuring consistent product quality.
These certifications make our touch panel a reliable choice for international procurement, ensuring compliance with global standards and regulations.
