14.1 inch touch screen customize Capacitive touch panel

Category:

Product attributes: IC ： ILI2301S Interface：USB/I2C OS：Windows、WinCE、Android、Linux Cover lens thinckness: 1.1mm ITO Glass Thickness: 0.55mm

Description

WIWOTOUCH

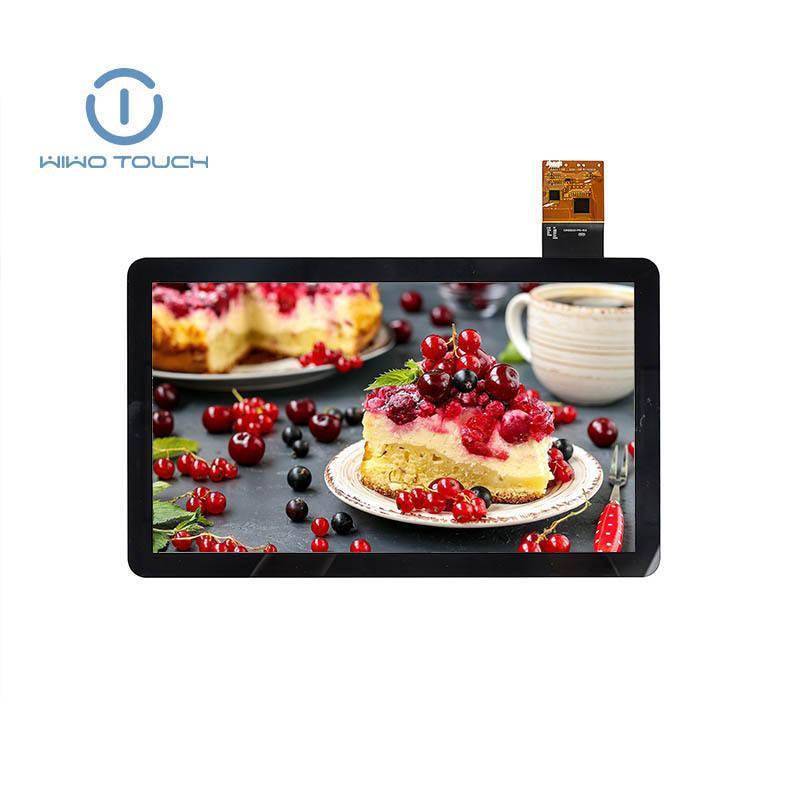

14.1 inch capacitive touch panel

This is our new 14.1-inch capacitive touch screen. This custom capacitive touch screen has 1.1mm cover glass and 0.55mm ITO glass, suitable for I2C interface, using ILITEK chip, compatible with more programs and systems, we can design the appropriate FPC for you according to your needs. We accept a complete set of touch screen customization, tell us your needs, we will help you achieve.

Parameters

1. Interface	I2C/USB	4. Cover lens thinckness	1.1mm
2. IC	ILI2301S	5. ITO Glass Thickness	0.55mm
3. Structure	Cover lens+ITO Glass + FPC	6. Support Points	multi point
7. Support Oparating System	Windows、WinCE、Android、Linux
8. Input Voltage	3.5V~5.5V	11. Operating Temperature	-10 to 60 ℃
9. Surface hardness	6H	12. Storage Temperature	-20 to 70 ℃
10. Transmittance	≥85%	13. Other Tolerance	±0.2mm
