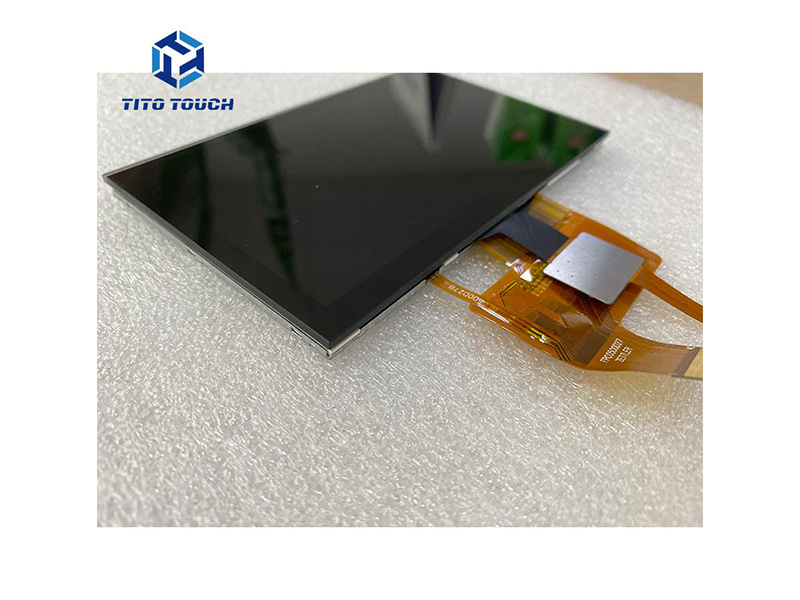

WIWO 5 inch LCD touch display with capavitve touch screen for Oscilloscope

Category:

NO. : 165ACTL050GG-V1.0 Type: LCD + capacitive touch panel Structure: LCD + Cover Glass+ ITO Glass Touch panel IC interface: I2C

Description

We provide touch display solutions and are committed to providing customers with accurate service. There is a touch display(165ACTL050GG-V1.0) used in oscilloscope projects.

165ACTL050GG-V1.0 is a 5 inch LCD capacitive screen/panel, The cover plate is specially made of 1.55mm glass, As for the thickness of cover plate, we can customize it according to your requirements, with a range of 0.55-12mm to choose from. We support product customization, tailored for you to create a suitable solution.

5 inch LCD touch display
Model NO.	165ACTL050GG-V1.0
Resolution	800*480
LCD driver IC	TBD
Touch Type	Projected capacitive touch panel
LCD interface	\
Brightness	\
Area Area	\
Outline Dimension of LCD	\
Structure	LCD+ Cover Glass+ ITO Glass
Product Dimensions of touch panel	121±0.276±0.21.55±0.3MM
Dimensions of Sensor Glass	119.5±0.274.65±0.20.7±0.3MM
Cover glass Area View	108±0.2*65.6±0.2
Thickness of Sensor Glass	1.55MM
Thickness of Cover Glass	0.7MM
Total Thickness	2.45±0.2MM
Surface hardness	≥6H
Transparency	≥90%
Operating temperature	–20℃~60℃ 20-85% RH
Storage temperature	–30℃~70℃ 10-95% RH
Surface treatment	no
Touch panel IC	FT7311
Interface	I2C
Touch-points	5-10 points
Precision	±1.0MM
Linearity	±1.0MM
Guarantee period	12 months
Packing	Plastic tray or antistatic bag or foam box or vacuum bag + carton
