WIWOTOUCH 15 inch projected capacitive touch panel for Supermarkets Smart devices
NO. : 112ACBL150GG-V2.0 Type: Projected capacitive touch panel Structure: Glass+Glass IC: FT5436
Description

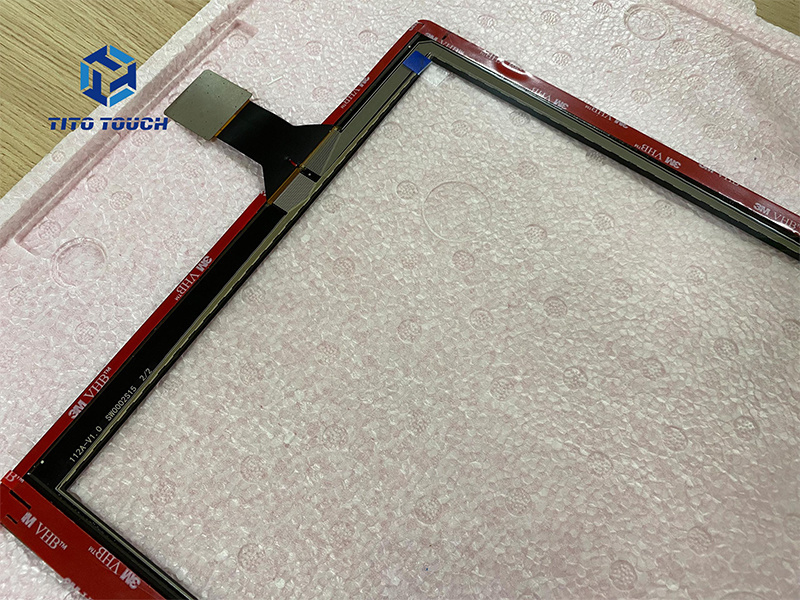

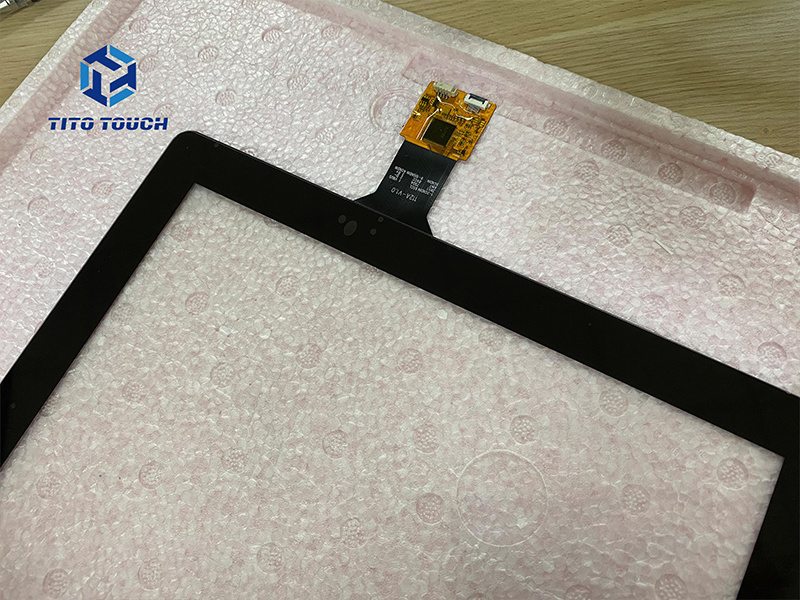

WIWOTOUCH 15 inch projected capacitive touch panel for Supermarkets Smart devices
There is our factory launched a touch screen(112ACBL150GG-V2.0) used in supermarkets Smart devices. 112ACBL150GG-V2.0 is a 15 inch capacitive screen/panel. We adopt IC of GT9110+CH554, this IC has a very high cost performance, and good touch function. About the IC, we can provide the different solution, if you have any requirements, kindly contact me.
|
15 inch projected capacitive touch panel |
|
|
Model NO. |
112ACBL150GG-V2.0 |
|
Type |
Projected capacitive touch panel |
|
Structure |
Glass+Glass |
|
Product Dimensions |
345.58±0.3*269.52±0.05*1.1±0.05MM |
|
Dimensions of Sensor Glass |
325.25±0.3*243.32±0.2*0.7±0.05MM |
|
Area View |
305±0.15*229±0.15MM |
|
Thickness of Sensor Glass |
1.1MM |
|
Thickness of Cover Glass |
0.7MM |
|
Total Thickness |
2.0±0.2MM |
|
Surface hardness |
≥6H |
|
Transparency |
≥90% |
|
Operating temperature |
–20℃~60℃ 20-85% RH |
|
Storage temperature |
–30℃~70℃ 10-95% RH |
|
Surface treatment |
no |
|
IC |
GT9110+CH554 |
|
Interface |
I2C |
|
Touch-points |
5-10 points |
|
Precision |
±1.0MM |
|
Linearity |
±1.0MM |
|
Guarantee period |
12 months |
|
Packing |
Plastic tray or antistatic bag or foam box or vacuum bag + carton |
15 inch touch panel
Supermarkets Smart devices
WIWOTOUCH
15.6 inch capacitve touch panel
