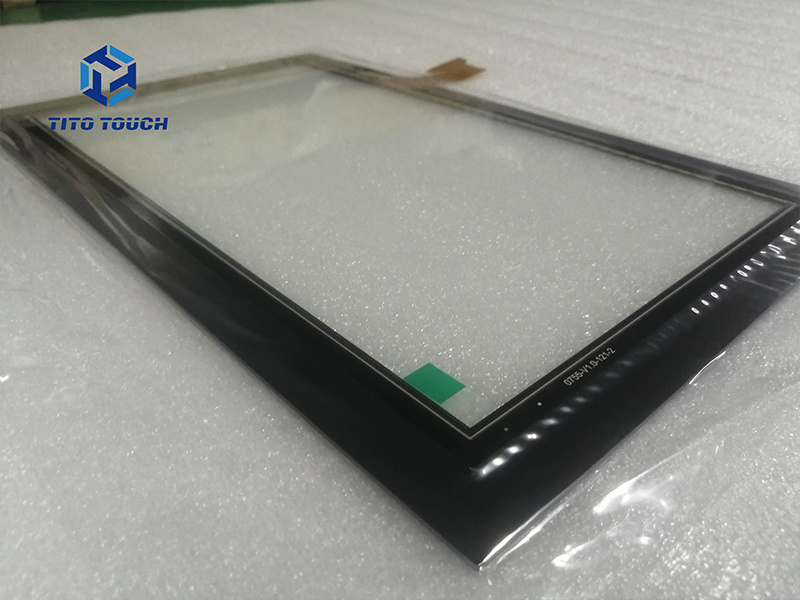

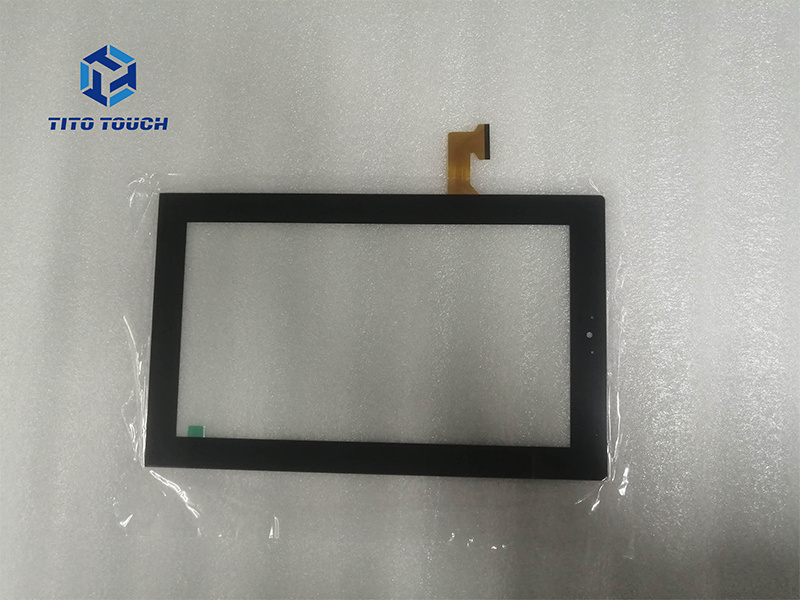

WIWOTOUCH 15.6 inch projected capacitive touch panelIntelligent refrigerator
NO. : CCD156GG0755 Type: Projected capacitive touch panel Structure: Glass+Glass
Description
There is a touch screen(CCD156GG0755) used intelligent refrigerator project. CCD156GG0755 is a 15.6 inch capacitive screen/panel, it have the 1.8mm cover glass, designed to be waterproof effect, stable touch function.
|
15.6 inch projected capacitive touch panel |
|
|
Model NO. |
CCD156GG0755 |
|
Type |
Projected capacitive touch panel |
|
Structure |
Glass+Glass |
|
Product Dimensions |
246±0.15*400.96±0.15*1.8±0.15MM |
|
Dimensions of Sensor Glass |
212.82±0.2*362.7±0.15*0.7±0.05MM |
|
Area View |
192±0.2*342.96±0.15 |
|
Thickness of Sensor Glass |
1.8MM |
|
Thickness of Cover Glass |
0.7MM |
|
Total Thickness |
2.75±0.2MM |
|
Surface hardness |
≥6H |
|
Transparency |
≥90% |
|
Operating temperature |
–20℃~60℃ 20-85% RH |
|
Storage temperature |
–30℃~70℃ 10-95% RH |
|
Surface treatment |
no |
|
IC |
TBD |
|
Interface |
I2C/USB |
|
Touch-points |
5-10 points |
|
Precision |
±1.0MM |
|
Linearity |
±1.0MM |
|
Minimum order quantity |
100pcs |
|
Sample delivery |
12 working days |
|
Mass production delivery |
2-4 weeks, according to customer requirements, the delivery time is slightly changed |
|
Guarantee period |
12 months |
|
Packing |
Plastic tray or antistatic bag or foam box or vacuum bag + carton |
15.6 INCH TOUCH SCREEN
WIWOTOUCH
touch screen panel
