NO. : CIUS215GG0813 Type: Projected capacitive touch panel Structure: Glass+Glass IC: ILI2510

Description

We are committed to providing the best service for the major manufacturers, excellent products. There is our factory launched a touch screen(CIUS215GG0813) used in golf simulation projects. CIUS215GG0813 is a 21.5 inch capacitive screen/panel, it have the 6mm cover glass, Collision Protection level IK10, also meets customer requirements for outdoor and factory applications. We adopt IC of ILI2510, it has excellent stability and sensitivity. The cover glass adds the AG surface treatment, increase stability for outdoor application of the project.

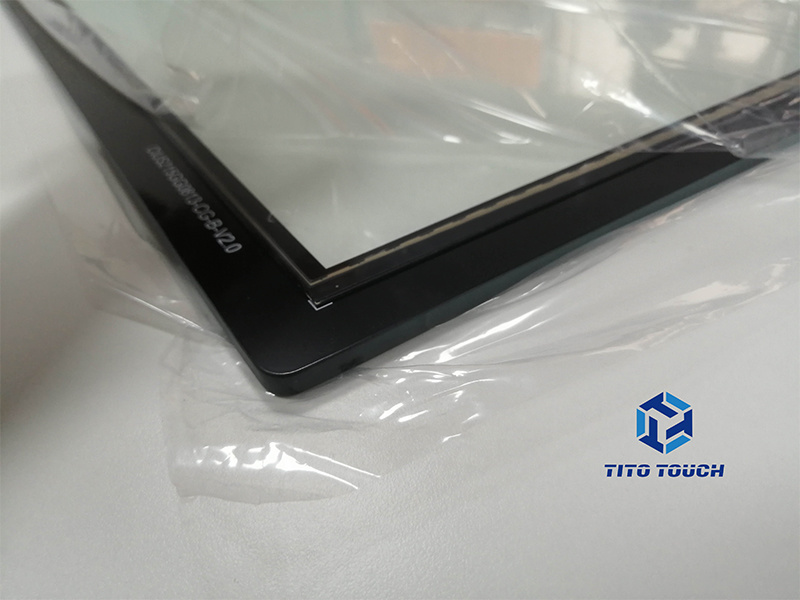

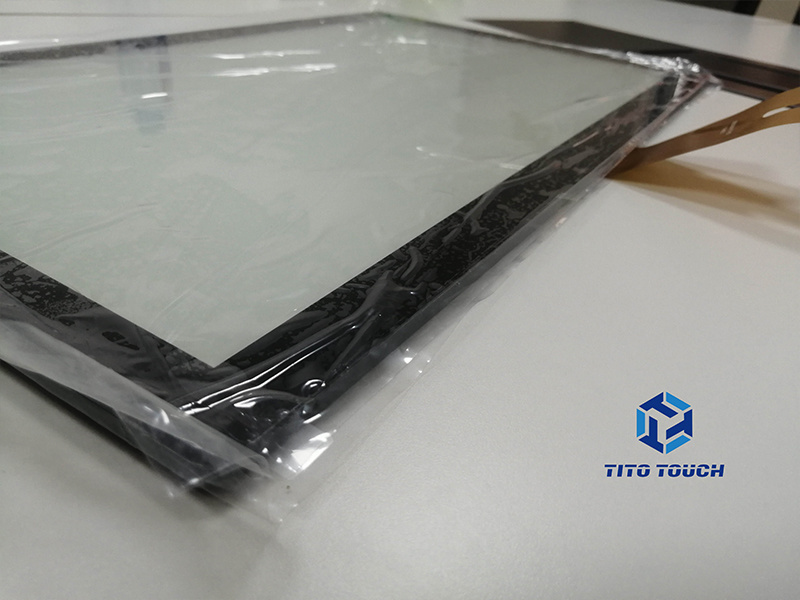

21.5 inch projected capacitive touch panel
Model NO.	CIUS215GG0813
Type	Projected capacitive touch panel
Structure	Glass+Glass
Product Dimensions	525.24±0.3316.71±0.36±0.3MM
Dimensions of Sensor Glass	482.15±0.2273.8±0.150.7±0.05MM
Area View	476.15±0.2*266.7±0.15
Thickness of Sensor Glass	6MM
Thickness of Cover Glass	0.7MM
Total Thickness	7±0.2MM
Surface hardness	≥6H
Transparency	≥90%
Operating temperature	–20℃~60℃ 20-85% RH
Storage temperature	–30℃~70℃ 10-95% RH
Surface treatment	AG
IC	ILI2510
Interface	I2C/USB
Touch-points	5-10 points
Precision	±1.0MM
Linearity	±1.0MM
Minimum order quantity	100pcs
Sample delivery	12 working days
Mass production delivery	2-4 weeks, according to customer requirements, the delivery time is slightly changed
Guarantee period	12 months
Packing	Plastic tray or antistatic bag or foam box or vacuum bag + carton
