WIWOTOUCH 7 inch LCD touch display for 5G communication equipment

Category:

NO. : CIRL070GG0833-V1.0 Type: LCD + capacitive touch panel Structure: LCD + Cover Glass+ ITO Glass Touch panel IC interface: I2C

Description

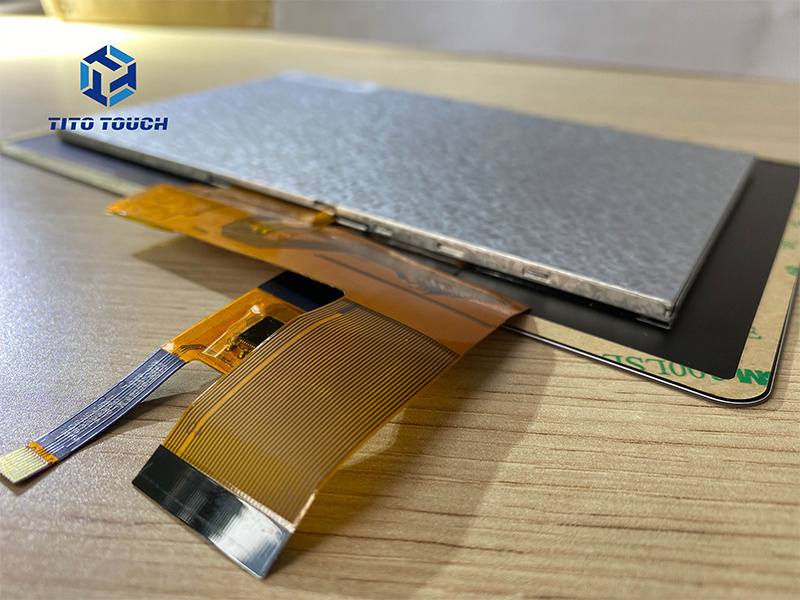

WIWOTOUCH 7 inch LCD touch display for 5G communication equipment

We provide touch display solutions and are committed to providing customers with accurate service. There is a touch display(CIRL070GG0833-V1.0) used in 5G communication equipment projects. CIRL070GG0833 is a 7 inch LCD capacitive screen/panel, it have the white cover glass, 7 inch 1024*600 LCD, 250cd/m2 brightness. The display adopt IC of touch panel is FT5446, it has stable performance and high cost performance. We support product customization, tailored for you to create a suitable solution.

7 inch LCD touch display
Model NO.	CIRL070GG0833
Resolution	1024xRGBx600/800*480
LCD driver IC	EK79001/EK73215
Touch Type	Projected capacitive touch panel
LCD interface	RGB
Brightness	250cd/m2
Area Area	156.42±0.2*88.18±0.2
Outline Dimension of LCD	154.82±0.2*86.58±0.2MM
Structure	LCD+ Cover Glass+ ITO Glass
Product Dimensions of touch panel	194.20±0.2133.5±0.20.7±0.3MM
Dimensions of Sensor Glass	163.90±0.299±0.20.55±0.3MM
Cover glass Area View	154.82±0.2*86.58±0.2
Thickness of Sensor Glass	0.7MM
Thickness of Cover Glass	0.55MM
Total Thickness	1.95±0.2MM
Surface hardness	≥6H
Transparency	≥90%
Operating temperature	–20℃~60℃ 20-85% RH
Storage temperature	–30℃~70℃ 10-95% RH
Surface treatment	no
Touch panel IC	FT5446
Interface	I2C
Touch-points	5-10 points
Precision	±1.0MM
Linearity	±1.0MM
Minimum order quantity	100pcs
Sample delivery	12 working days
Mass production delivery	2-4 weeks, according to customer requirements, the delivery time is slightly changed
Guarantee period	12 months
Packing	Plastic tray or antistatic bag or foam box or vacuum bag + carton
