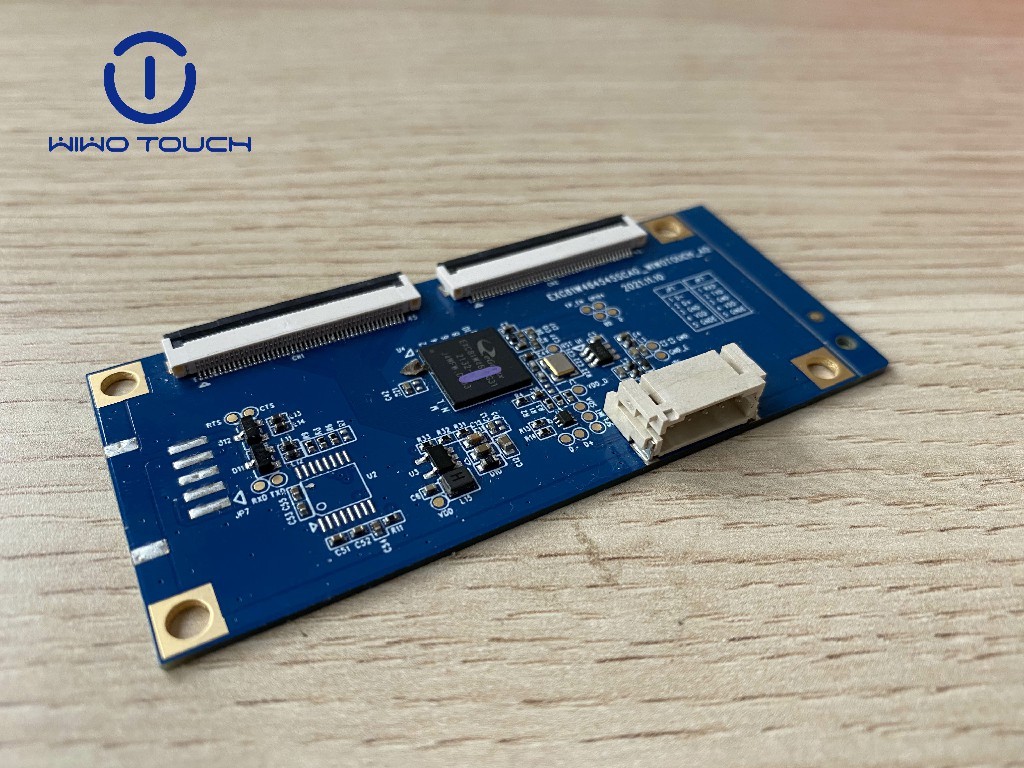

Wiwotouch Controller Board EETI EXC80W46 for Touch Screen panel

Category:

Product attributes: IC ：EETI EXC80W60 Interface：I2C / USB / RS232 OS：Windows、WinCE、Android、Linux Response time Average < 25 ms Product description: The EXC80W60 is a projected capacitive (PCAP) touch screen controller that powered by EETI's high performance MCU EXC80W60. By integrating the advantages of self and mutual capacitance sensing technol

Description

EETI EXC80W46

Wiwotouch Controller Board for Touch Screen panel

Wiwotouch Controller Board EETI EXC80W46 for Touch Screen panel, the EETI EXC80W46 is a high configuration, high adaptability. It can be applied to high-end operating systems as well as more sophisticated work environmentsexcellent response time and reading speed, By integrating the advantages of self and mutual capacitance sensing technology, built-in high driving voltage transceiver and a powerful MCU, this controller incorporate most desired features to boost the noise immunity, and support high demand applications in most categories.

Parameters

1. Interface	I2C、USB、RS232	4. Linearity	Line drawing accuracy : 1pt +/- 1mm offset /10mm Touch (point) accuracy : 1pt +/- 1mm
2. IC	EXC80W60	5. Power Consumption	Active Mode: < 200mA Idle Mode : < 100mA
3. Channels of Panel	Max. Tx:44 Rx:66 channels (include shielding pin)	6. Support Points	max 10 points
7. Oparating System	Windows、WinCE、Android、Linux
8. Input Voltage	3.5V~5.5V.Typical 5V.	11. Operating Temperature	-40 to 85 ℃
9. Response Time	Average < 25 ms	12. Storage Temperature	-40 to 90 ℃
10. Report Rate	＞100 Hz	13. Relative Humidity	95% at 60 ℃, RH Non-condensing
