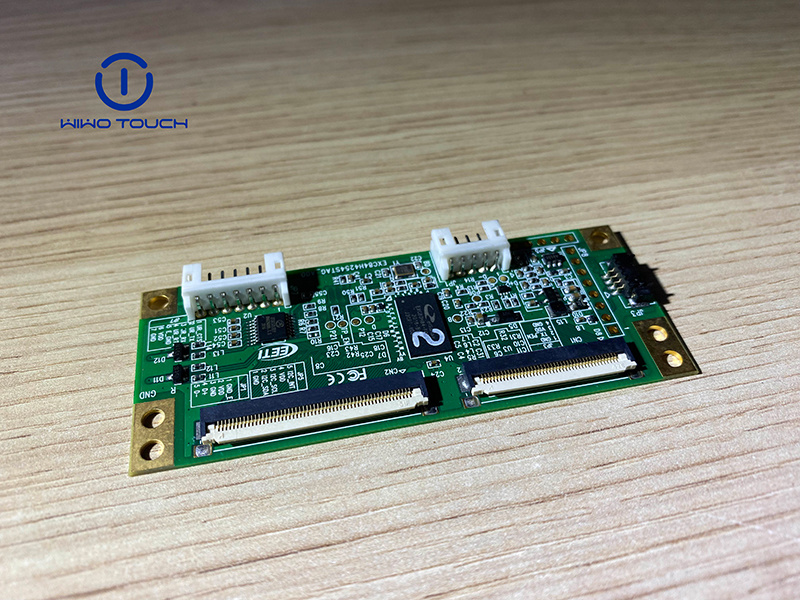

Wiwotouch Controller Board EETI EXC84 for Touch panel

Category:

Product attributes: IC ：EETI EXC84 Interface：I2C / USB / RS232 OS：Windows、WinCE、Android、Linux Response time Average < 25 ms Product description: The EXC84 is a projected capacitive (PCAP) touch screen controller that powered by EETI's high performance MCU EXC84. By integrating the advantages of self and mutual capacitance sensing technology,

Description

EETI EXC84

Touch screen Controller Board

Wiwotouch Controller Board EETI EXC84 for Touch Screen panel, the EETI EXC84 is a high configuration, high adaptability. It can be applied to high-end operating systems as well as more sophisticated work environmentsexcellent response time and reading speed, By integrating the advantages of self and mutual capacitance sensing technology, built-in high driving voltage transceiver and a powerful MCU, this controller incorporate most desired features to boost the noise immunity, and support high demand applications in most categories.

Parameters

1. Interface	I2C、USB、RS232	4. Linearity	Line drawing accuracy : 1pt +/- 1mm offset /10mm Touch (point) accuracy : 1pt +/- 1mm
2. IC	EXC84	5. Power Consumption	Active Mode: < 200mA Idle Mode : < 100mA
3. Channels of Panel	Max. Tx:44 Rx:66 channels (include shielding pin)	6. Support Points	max 10 points
7. Oparating System	Windows、WinCE、Android、Linux
8. Input Voltage	3.5V~5.5V.Typical 5V.	11. Operating Temperature	-40 to 85 ℃
9. Response Time	Average < 25 ms	12. Storage Temperature	-40 to 90 ℃
10. Report Rate	＞100 Hz	13. Relative Humidity	95% at 60 ℃, RH Non-condensing
