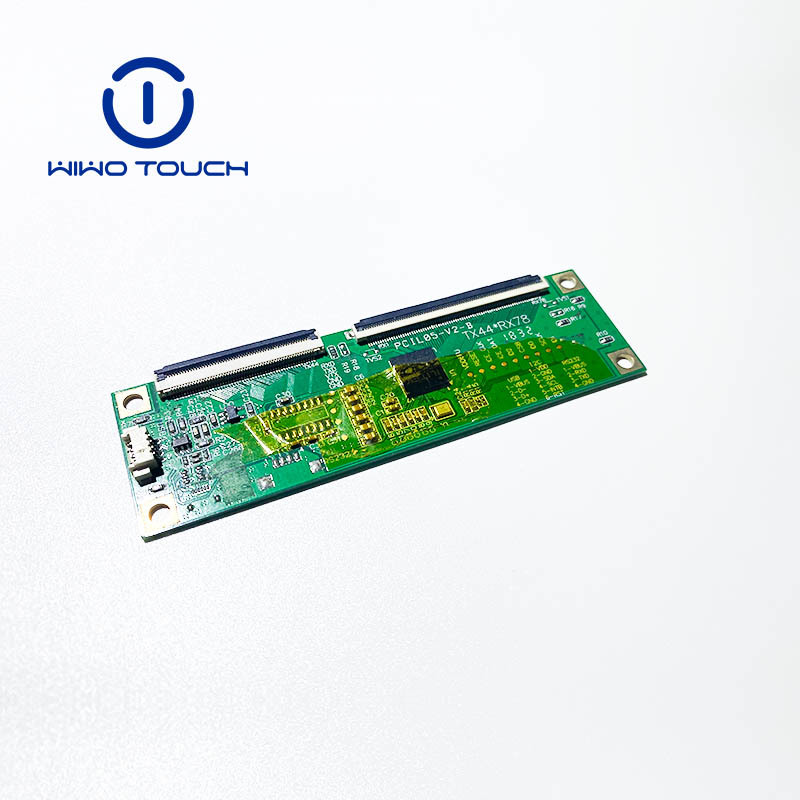

Wiwotouch Controller Board ILI2312 for Touch Screen panel

Category:

Product attributes: IC ：ILITEK 2312 Interface：I2C / USB OS：WindowsXP, Windows7, Windows8, WinCE, Android, Linux Response time＜10ms Product description: Wiwotouch Controller Board ILI2511 has a high adaptability to support a variety of operating systems on the market, high adaptability, low consumption, excellent response time and reading speed...

Description

ILI2312

TTouch Screen panel Controller Board

Wiwotouch Controller Board ILI2312 has a high adaptability to support a variety of operating systems on the market, high adaptability, low consumption, excellent response time and reading speed, it is a more versatile chip, convenient and efficient. We can help you custom controller board.

Parameters

1. 接口 / Interface	I2C、USB、RS232	4. 线性 / Linearity	Line drawing accuracy : 1pt +/- 1mm offset /10mm Touch (point) accuracy : 1pt +/- 1mm
2. 芯片 / IC	EXC80W60	5. 功耗 / Power Consumption	Active Mode: < 200mA Idle Mode : < 100mA
3. 通道数 / Channels of Panel	Max. Tx:44 Rx:66 channels (include shielding pin)	6. 支持点数 / Support Points	max 10 points
7. 运行系统 / Oparating System	Windows、WinCE、Android、Linux
8. 输入电压 / Input Voltage	3.5V~5.5V.Typical 5V.	11. 运行温度 / Operating Temperature	-40 to 85 ℃
9. 反应时间 / Response Time	Average < 25 ms	12. 储存温度 / Storage Temperature	-40 to 90 ℃
10. 读取速度 / Report Rate	＞100 Hz	13. 相对湿度 / Relative Humidity	95% at 60 ℃, RH Non-condensing
