21.5" high sensitivity multi-touch touch glass for self-service terminals

Category:

1.Model number: CCD215GG0681-V1.0 2.Application: Automotive, Medical device, Kiosk, etc 3.Structure: Glass Lens + ITO glass sensor+FPC 4.Touch type: Multi touch(can be customized) 5. Certificates: Reach, RoHS, ISO9001

Description

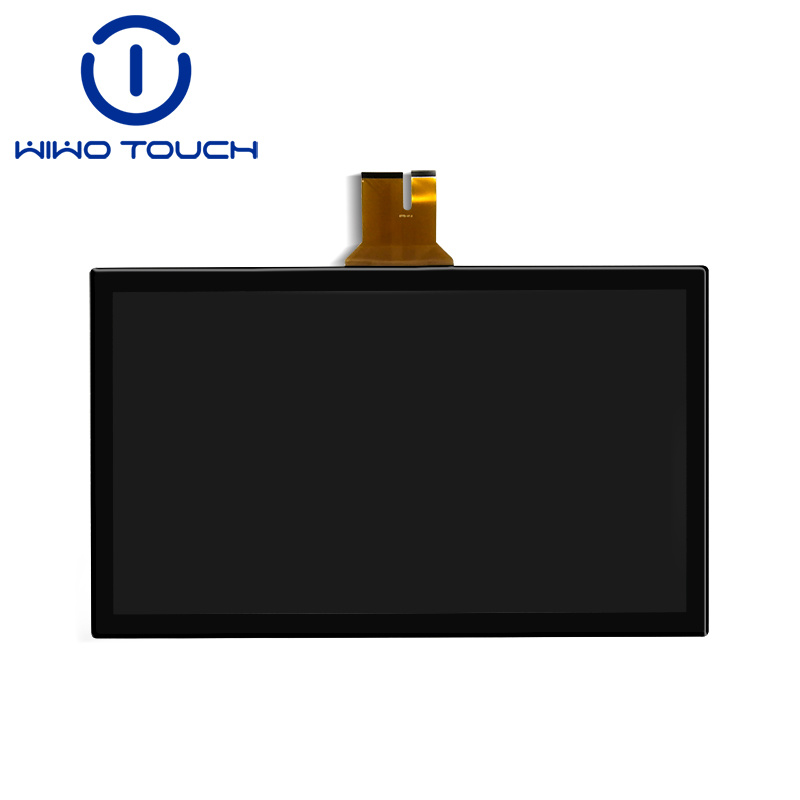

21.5 inch capacitive touch screen monitor

Product name	21.5 Inch projected capacitive touch screen
Brand Name	WIWOTOUCH
Touch type	Multi touch(can be customized)
Application	Smart control, Medical device, Industrial control, etc
Material	Sodalime
Interface type	IIC
Color	Black
Structure	Glass Lens+ITO sensor+FPC
Cover Glass Dimension	509.84±0.3*301.31±0.3 mm
Cover Lens VA	476.9*268.3 mm
Cover Lens Thickness	2.8 mm
Film sensor Thickness	0.7 mm
SCA	0.25 mm
Total Thickness	3.75±0.3 mm
LCD resolution	TBD(As you need)
IC Model	TBD(As you need)
FPC	108 PIN
Transmittance	≥85%
Surface Hardness	6H
Operating Environment	-20℃~+70℃,≤45-85% RH
Storage Environment	-30℃~+80℃,≤45-85% RH
Operating Voltage	5 V
Interface Voltage	2.8 V-3.3 V
Surface treatment	As your need.
General Tolerance	±0.2mm
Available operating systems	Android/Linux/Windows/Raspberry PI
Certificates	RoHS/Reach/ISO9001
Sample delivery	15 working days
Mass production delivery	2-4 weeks, according to customer requirements, the delivery time is slightly changed
Guarantee period	12 months
Packing	Plastic tray or antistatic bag or foam box or vacuum bag + carton

21.5" high sensitivity multi-touch touch glass for self-service terminals

This 21.5-inch high-sensitivity multi-touch touch glass is a cutting-edge technology designed specifically for self-service terminals. With its advanced touch technology, this touch glass provides users with an intuitive and convenient operating experience, making it ideal for a wide range of applications, including banks, airports, train stations, and other public places.

The screen size of the touch glass is large, which gives users ample space to interact with the terminal and enhances user experience. Additionally, the multi-touch function allows users to perform complex actions such as zooming, rotating, sliding, and swiping with ease, making it faster and more efficient to complete tasks.

The touch glass is designed to be waterproof, anti-fouling, and wear-resistant, making it highly durable and perfect for use in harsh environments. Moreover, the high-sensitivity touch technology ensures that the glass responds instantly to user input, reducing wait times and improving performance.

In summary, this 21.5-inch high-sensitivity multi-touch touch glass is a powerful tool for self-service terminals, providing an unparalleled user experience that improves efficiency and reduces costs. Whether you're in banking, transportation, or retail, this touch glass is the perfect solution for your needs.
