10.4 Inch AG Capacitive Touch Screen：Reduce Light Interference And Improve Clarity

Category:

1.Model number: CCX104GG0683 2.Application: Smart control, Medical device, Industrial control, etc 3.Structure: Glass Lens + ITO glass sensor+FPC 4.Touch type: Multi touch(can be customized) 5. Certificates: Reach, RoHS, ISO9001

Description

10.4 Inch AG Capacitive Touch Screen：Reduce Light Interference And Improve Clarity

Product Overview:

The 10.4 inch AG capacitive touch panel is specifically designed for automotive displays and industrial smart devices.This touch panel has multi-touch and anti-glare features, enabling smooth gesture interaction, reducing ambient light interference, reducing screen reflection, improving picture clarity, and making images clearer. Let users enjoy a better experience.

Product name	10.4 Inch AG Capacitive Touch screen
Brand name	WIWOTOUCH
Touch Type	Multi Touch (Can be customied)
Application	Smart control, Automotive, Industrial control, etc
Interface type	IIC/USB
Structure	Cover Lens+ITO Glass Sensor +FPC
TP Resolution	1024*768
Cover Glass Dimension	235.2±0.15*187.4±0.15 mm
Cover Lens VA	211.43±0.15*158.82±0.15 mm
Cover Lens Thickness	1.1mm
ITO Glass Thickness	0.7mm
Total thickness	2.0±0.1mm
LCD Resolution	TBD (AS you need)
IC Modal	USB:HY96+HY4635-N068 IC;HY4635-N068
FPC	10PIN
Transmittance	≥83℃
Surface Hardness	6H
Operating Environment	-30℃~+80℃,≤45%-90% RH
Storage Environment	-30℃~+80℃,≤45%-90% RH
Interface Voltage	3.3V
Surface treatment	AG(Anti-glare)
General Tolerance	±0.2mm
Available operating systems	Android/Linux/Windows
Certificates	RoHS/Reach/ISO9001
Sample delivery	15 working days
Mass production delivery	2-4 weeks, according to customer requirements, the delivery time is slightly changed
Guarantee period	12 mouths
Packing	Plastic tray or antistatic bag or foam box or vacuum bag + carton

Key Features:

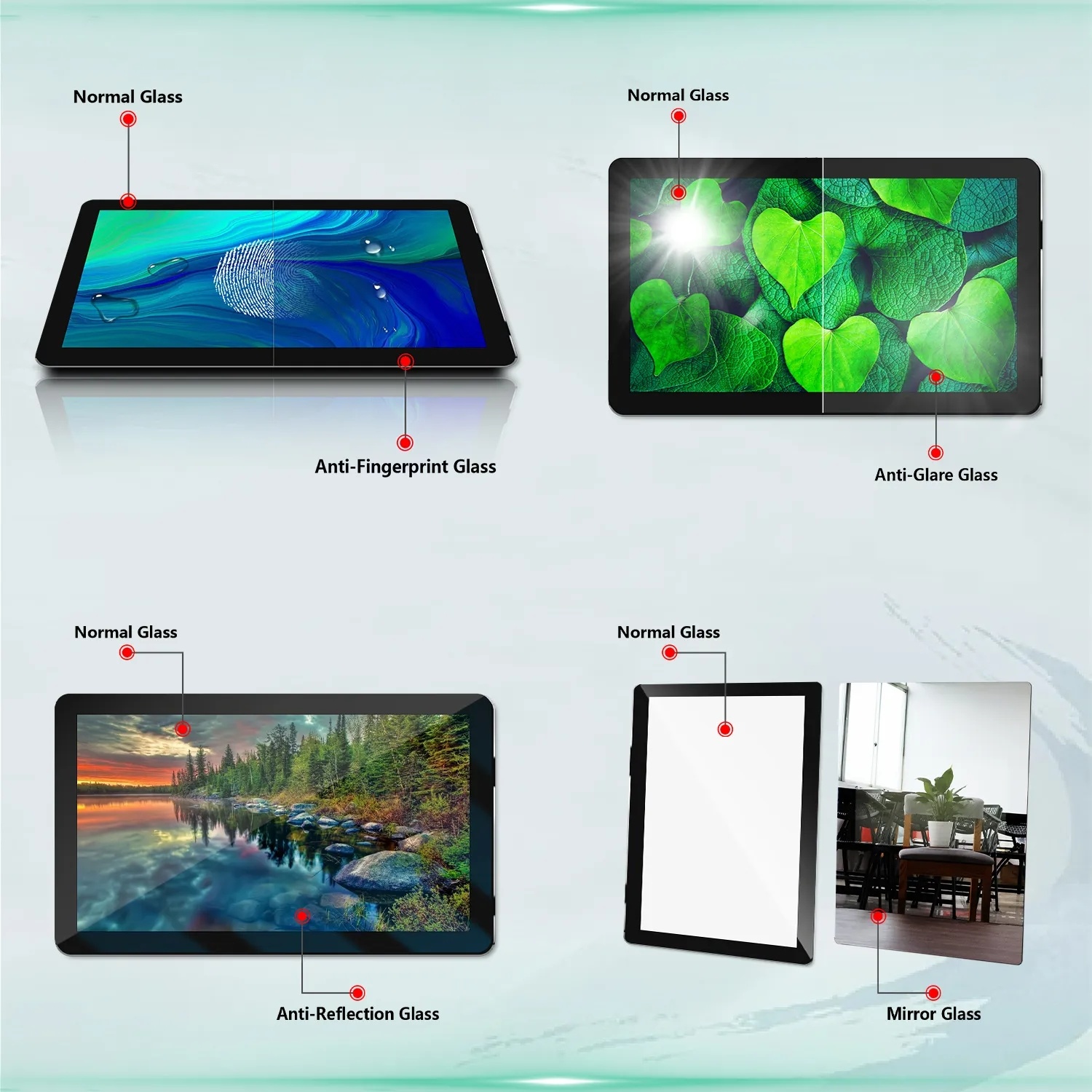

Anti-Glare Performance

The screen is coated with an anti-glare (AG) coating that reduces the impact of ambient light by reducing reflection. This can improve the clarity of the display picture, especially in public Spaces or frequently used devices.

High-Resolution LCD Display

Offers clear, sharp visuals with high brightness and wide viewing angles, suitable for various lighting conditions.

Multi-Touch Capabilities And High Sensitivity

It can support up to 10 simultaneous touch points, providing accurate, smooth user interaction, fast response and smooth operation

Stability and Durability:

The touch panel is made of tempered glass with a strong exterior that resists scratches and impact. Withstand high temperature and humid environment, suitable for industrial equipment, outdoor environment.

Fully Fit Technology And Customized Services

Fully Fit Technology: Supports optical bonding (OCA) and air bonding, enhancing the adhesion between the touchscreen and display for improved durability and visual performance.

Customized Services: Offers customizable options for size, thickness, shape, and special coatings (e.g., anti-bacterial coatings) to meet specific industry requirements.

Applications:

Industrial Equipment:

Functions as a Human-Machine Interface (HMI) screen for automated machinery and control systems.

Automotive Interiors:

Perfect for in-car control panels or navigation systems, providing fast, responsive touch functionality.

Commercial Terminals:

Ideal for smart vending machines and information kiosks.
