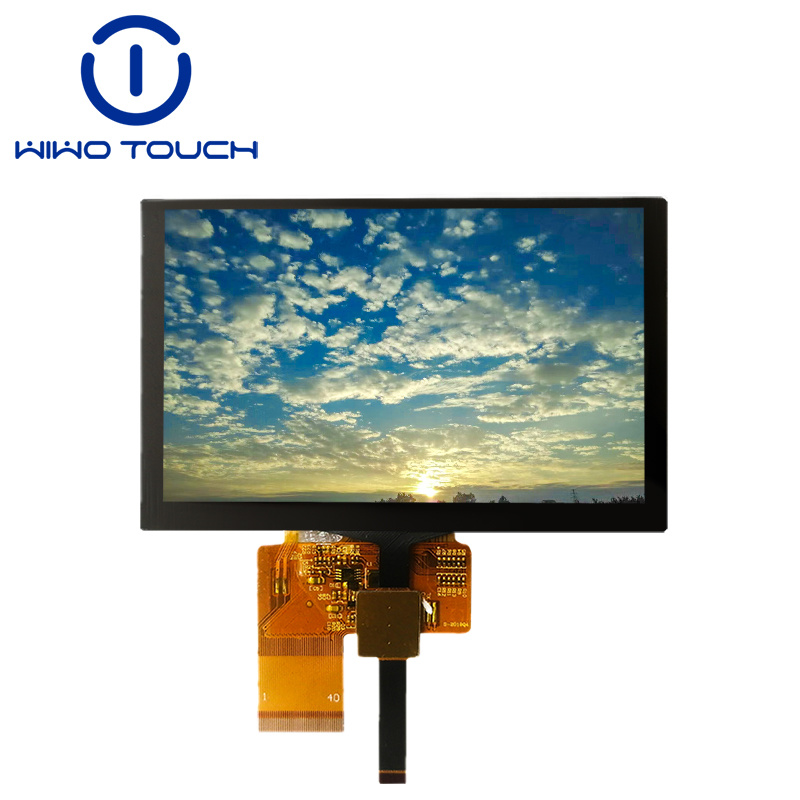

5-Inch Touch Screen with High Sensitivity for Industrial Control Panels

Category:

1. Model number : CTL050FF0399-V3.0 2. Structure: Glass Lens+ITO Glass+FPC 3. Touch type: Single-touch or Multi touch 4. Application: Smart control, Industrial, Intelligent robots, Handheld device, etc 5. Interface type: IIC control 6. Color: Black

Description

5-Inch Touch Screen with High Sensitivity for Industrial Control Panels

Sensitivity Aspect

Precise operation: High sensitivity means that the screen can accurately capture the user's touch action, whether it is clicking, sliding or zooming, etc., can respond quickly and accurately, reduce operational errors, improve the accuracy and efficiency of industrial control, help operators complete tasks more efficiently and improve the overall production efficiency.
Adapt to a variety of operations: can adapt to different forces and ways of touch operation, whether it is wearing gloves or using tools such as stylus, can ensure a good response to meet the diversified operation needs of industrial environments.

Applied To Industrial Control Panel

High reliability: Designed for industrial control panels, it can adapt to harsh conditions such as high temperature, low temperature, humidity and vibration in industrial environments, with high stability and durability, reduce screen failures caused by environmental factors, and ensure the continuity of industrial production.
Strong compatibility: It has good compatibility with other equipment and software in the industrial control system, and can be seamlessly integrated into the existing industrial control system to facilitate system upgrade and expansion.

Product Parameter:

Product name	5 Inch touch panel
Brand Name	WIWOTOUCH
Touch type	PCAP 5-10 points touch
Material	Sodalime
Application	Industrial control, Self-service touch table, Smart control etc
Interface type	IIC
Structure	Glass Lens+ITO Film+FPC
Cover Glass Dimension	120.1±0.3*15.4±0.2mm
Cover Lens VA	108.8*65.6mm
Cover Lens Thickness	0.7 mm
ITO Film Thickness	0.425 mm
Total Thickness	1.125±0.1 mm
LCD resolution	TBD(As you need)
IC Model	FT7331
FPC	TBD
Transmittance	≥85%
Surface Hardness	＞6H
Operating Environment	-20℃~+70℃, 20-85% RH
Storage Environment	-30℃~+80℃, 10-85% RH
Operating Voltage	2.8V-3.3 V
Interface Voltage	2.8V-3.3 V
Surface treatment	AR(Anti-reflective); AF(Anti-fingerprint); AG(Anti-glare); waterproof
General Tolerance	±0.2mm
Available operating systems	Android/Linux/Windows
Certificates	RoHS/Reach/ISO9001
Sample delivery	15 working days
Mass production delivery	2-4 weeks, according to customer requirements, the delivery time is slightly changed
Guarantee period	12 months
Packing	Plastic tray or antistatic bag or foam box or vacuum bag + carton

Customized Service

Support custom size, bezel design and touch screen surface treatment to meet different customer needs.

Optional surface treatments such as anti-fingerprint, anti-glare, anti-reflection, and waterproof can significantly improve the readability, clarity, touch experience, and service life of capacitive touch screens.
Optional special coatings, such as anti-fingerprint and anti-bacterial finishes, enhance the user experience and product hygiene.
Frame design can be customized according to customer requirements, easy to integrate into a variety of equipment to meet different product appearance and functional needs, optional thickness and frame color enhance product flexibility and adaptability.

Applications

Smart Home Devices:Can be used in smart home control panels, such as lighting controllers, thermostats, smart locks, and other home automation devices.
Medical Equipment:Suitable for portable medical devices like blood glucose meters, ECG monitors, and other health monitoring equipment, providing an intuitive user interface.
Automotive Systems:Can be integrated into in-car navigation systems, entertainment systems, and control panels, enhancing convenience and user experience.
Consumer Electronics:Ideal for portable gaming consoles, MP4 players, e-readers, and other consumer electronic devices.
