12.3 inch Capacitive Touch Display Solution

Category:

1.Model number: CIST123GG0800-V1.0 2.Structure: Glass Lens + ITO glass sensor+FPC 3.Touch type: Multi touch(can be customized) 4. Certificates: Reach, RoHS, ISO9001

Description

12.3 inch white capacitive touch display with advanced PCAP technology, it is extremely sensitive to touch operation, can respond quickly with light touch, identify accurately, support 10-point touch control.

12.3 inch touch display have high resolution 1920*720 presents fine picture quality, good color reproduction. The IPS panel provides a 178° wide viewing Angle.

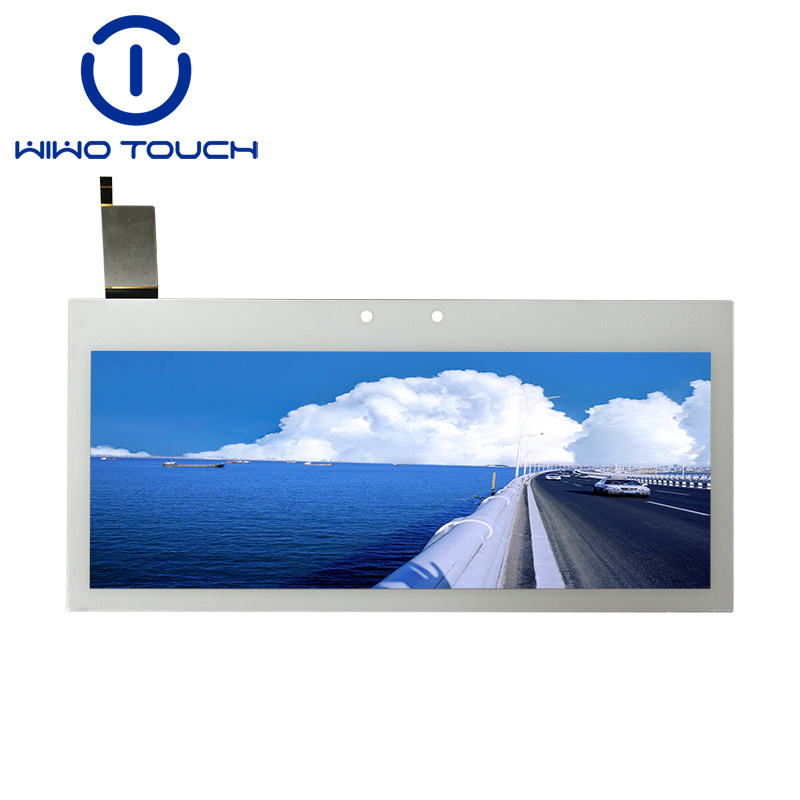

The pure white 12.3 inch touch screen appearance is simple and elegant, suitable for a variety of devices and environments. The narrow frame design reserves two camera holes, and the multi-screen splicing has little visual interference.

The glass cover is made of dragon-tail glass, with a thickness of 1.1mm, surface hardness of 6H, and light transmittance of more than 85%. Operating temperature range -20 ℃ to 70℃, good humidity adaptability, suitable for a variety of environments.

Equipped with I²C, USB, RS 232 and other interfaces, easy to connect all kinds of devices. Compatible with common operating systems such as Windows, Android, and Linux.

Product name	12.3 Inch projected capacitive touch screen
Brand Name	WIWOTOUCH
Touch type	Multi touch(can be customized)
Application	Smart control, Automotive, Industrial control, etc
Material	Asahi Dragon Trail
Interface type	IIC
Color	White

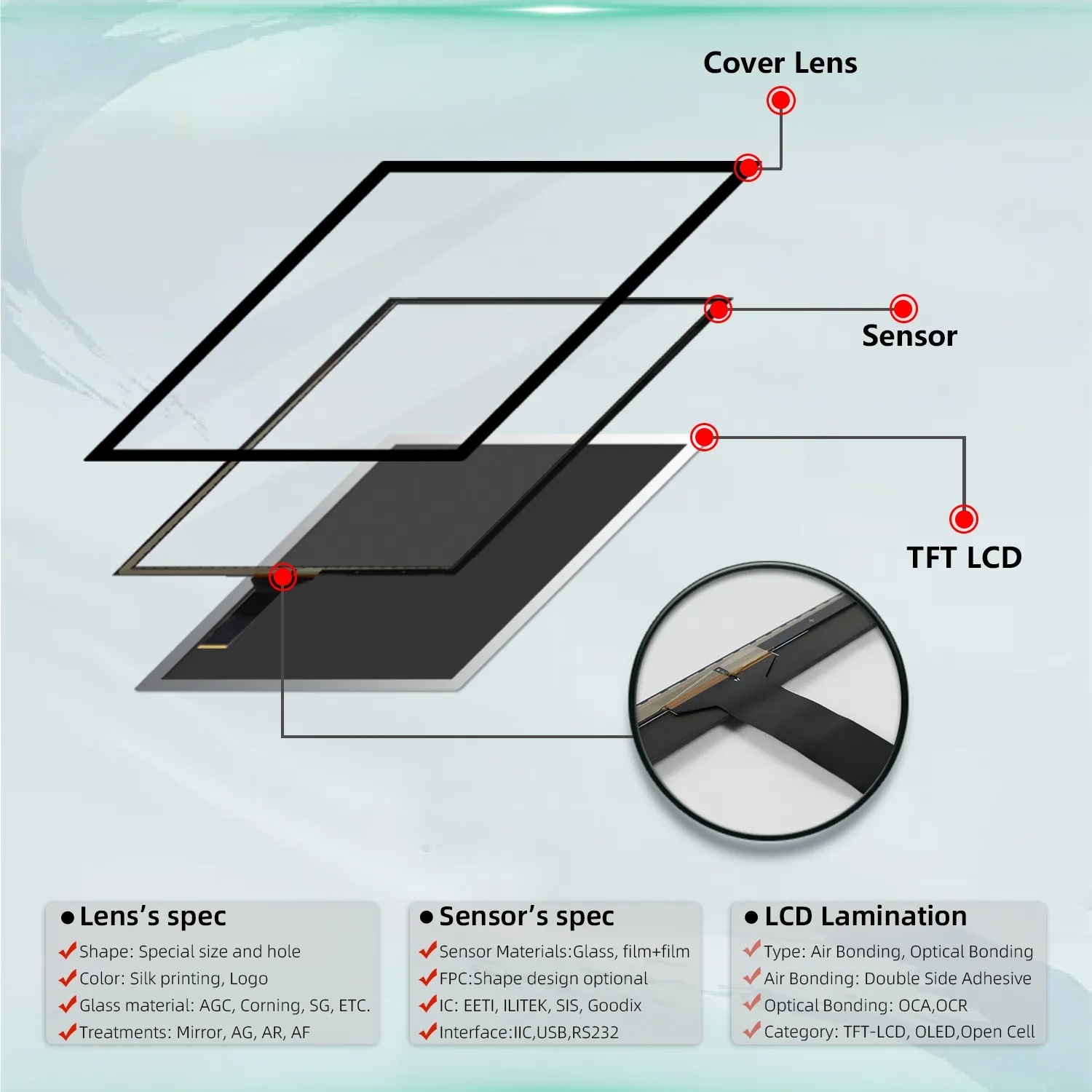

Structure	Glass Lens+ITO sensor+FPC
Cover Glass Dimension	314.7±0.15*145.8±0.15 mm
Cover Lens VA	293.03±0.2*110.51±0.25 mm
Cover Lens Thickness	1.1 mm
Film sensor Thickness	0.7 mm
SCA	0.2 mm
Total Thickness	2±0.1 mm
LCD resolution	TBD(As you need)
IC Model	ILI2511
FPC	10 PIN
Transmittance	≥85%
Surface Hardness	6 H
Operating Environment	-20℃~+70℃,≤90% RH
Storage Environment	-30℃~+80℃,≤90% RH
Operating Voltage	2.8 V-3.3 V
Interface Voltage	2.8 V-3.3 V
Surface treatment	As your need.
General Tolerance	±0.2mm
Available operating systems	Android/Linux/Windows/Raspberry PI
Certificates	RoHS/Reach/ISO9001
Sample delivery	15 working days
Mass production delivery	2-4 weeks, according to customer requirements, the delivery time is slightly changed
Guarantee period	12 months
Packing	Plastic tray or antistatic bag or foam box or vacuum bag + carton

Customized services

We focus on providing customers with a full range of customized services.

In terms of surface treatment, it can achieve Anti-reflection, Anti-glare, Aanti-fingerprint, Anti-UV and other effects, but also has the function of waterproof, anti-control, more 3D curved screen customization options and anti-bacterial treatment。
In terms of cover lens, we provide glass, PMMA, composite board and other material options, thickness range of 0.7-12.0mm, to meet the requirements of strength, weight and optical performance in different scenarios.
For the sensor, there are also two materials, glass and film, with a thickness between 0.4-1.8mm for customization.
Touch function support single touch or multi-touch, with Atmel, ILItek, EETI, CYPRESS and other well-known brands of touch ics, to ensure sensitive and accurate operating experience. Products range in size from 0.96" to 65", suitable for all types of needs from micro devices to large display terminals.
In terms of protection level, IK level can reach IK07-IK10, with good impact resistance; IP level up to IP56, effective dust and waterproof. At the same time, we also provide EMI shielding for our products to ensure stable operation in complex electromagnetic environments.
