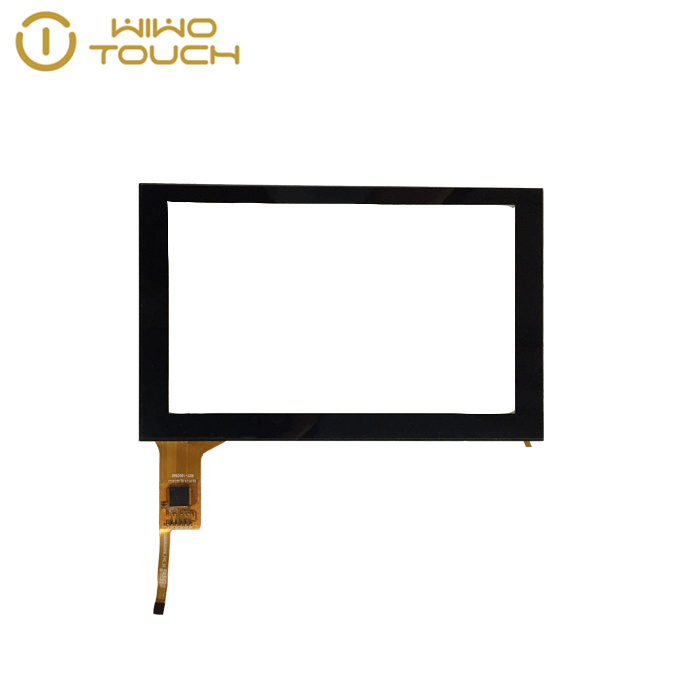

Customizable 5-inch capacitive touch screen

Category:

1.Model number: CSB050GG0310-V1.0 2.Application: Industrial control, Smart control, Medical device, etc 3.Structure: Cover lens+Glass Sensor+FPC 4.Touch type: Multi touch 5.Certificates: RoHS, Reach, ISO9001

Description

Product Feature

Interface and Structure: Utilize IIC/USB interfaces to ensure rapid and stable data transmission; the structure design incorporates glass lenses, ITO sensors, and FPC, combined with sodium calcium material cover glass, achieving both durability and optical performance.
Size Specifications: The cover glass size is 126.7 ± 0.180.18 ± 0.1 mm, the display area is 109 ± 0.265.8 ± 0.2 mm, the cover glass thickness is 1.1 mm, the ITO glass thickness is 0.55 mm, the total thickness is 1.85 ± 0.15 mm, suitable for various device designs.
Display and Control: The LCD resolution of 800 x 480 presents a clear picture, the GT911 chip ensures stable and precise touch control; FPC can be customized as needed.
Electrical Parameters: Working voltage and interface voltage range from 2.8 V to 3.3 V, energy-saving and compatible with various power sources.

Product Parameter

Product name	5 Inch Capacitive touch screen
Brand Name	WIWOTOUCH
Touch type	Multi touch(can be customized)
Application	Industrial, Handheld device, Medical device, Smart control, etc
Interface type	IIC/USB
Structure	Glass Lens+ITO Sensor+FPC
Material	Sodalime
Cover Glass Dimension	126.7±0.1*80.18±0.1 mm
Cover Lens VA	109±0.2*65.8±0.2 mm
Cover Lens Thickness	1.1 mm
ITO Glass Thickness	0.55 mm
Total Thickness	1.85±0.15 mm
LCD resolution	800*480
IC Model	GT911
FPC	TBD(As you need)
Transmittance	≥85%
Surface Hardness	6H
Operating Environment	-20℃~+70℃,≤90% RH
Storage Environment	-30℃~+80℃,≤90% RH
Operating Voltage	2.8 V-3.3 V
Interface Voltage	2.8 V-3.3 V
Surface treatment	AR(Anti-reflective); AF(Anti-fingerprint); AG(Anti-glare); waterproof
General Tolerance	±0.2mm
Available operating systems	Android/Linux/Windows
Certificates	RoHS/Reach/ISO9001
Sample delivery	15 working days
Mass production delivery	2-4 weeks, according to customer requirements, the delivery time is slightly changed
Guarantee period	12 months
Packing	Plastic tray or antistatic bag or foam box or vacuum bag + carton

Widespread application

Industrial sector: In harsh industrial environments, "5-inch capacitive touch screen for industrial control" plays a crucial role. Our touch screen operates within a temperature range of -20°C to +70°C, and has a storage temperature range of -30°C to +80°C. It can be seamlessly integrated into industrial control systems. With a sensitive and intuitive operation interface, it ensures efficient operation and precise monitoring of equipment.

Handheld devices: For mobile data collectors, field service terminals, etc., "5-inch capacitive touch screen for handheld devices" provides a compact and efficient solution. With a high transmittance of ≥85%, it ensures clear visibility even in strong light. The 6H surface hardness effectively resists scratches and wear, extending the equipment's service life.

Medical equipment: The medical industry has extremely high requirements for equipment hygiene and operational accuracy. Touch screens that support anti-fingerprint (AF), water resistance, etc., with customized surface treatments, meet the cleaning needs of the medical environment. Precise touch control helps medical staff operate diagnostic and monitoring equipment accurately, aligning with the professional requirements of "medical 5-inch capacitive touch screen".

Smart control: In the smart home and building sectors, "5-inch capacitive touch screen for smart control" can be integrated into smart control panels. It is compatible with multiple operating systems such as Android, Linux, and Windows, enabling convenient touch control management of lighting, temperature control, security, and other systems.

Quality Certification, Purchase Assurance

Our 5-inch capacitive touch screen has passed authoritative certifications such as RoHS, Reach, and ISO9001. It strictly adheres to international environmental protection and quality management standards, providing reliable quality products for B-end purchasers.
