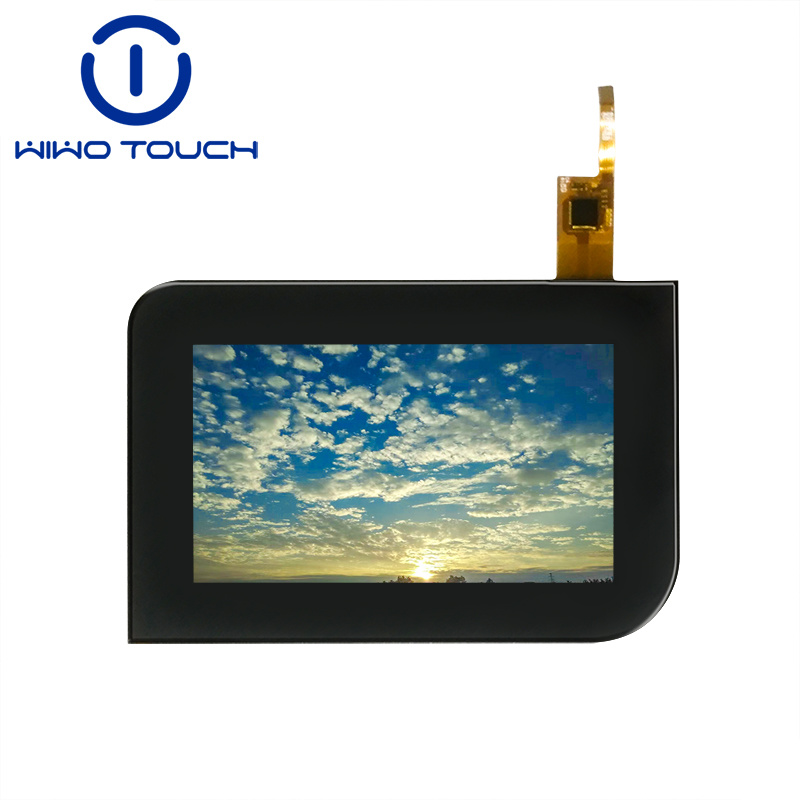

4.3 inch capacitive touch panel for portable equipment

Category:

1.Model number: CSY043GG0621-V1.0 2.Application: Smart control, Medical equipment, Industrial control, etc 3.Structure: Glass Lens + ITO glass sensor+FPC 4.Touch type: Multi touch(can be customized) 5. Certificates: Reach, RoHS, ISO9001

Description

Product Feature

1. Multi-touch customization: Our 4.3-inch WIWOTOUCH brand projected capacitive touchscreen features multi-touch functionality and can be customized according to your specific business needs.
2. High-quality materials: The touchscreen is made of sodium calcium glass and chemically strengthened materials, ensuring durability and long-term performance. The glass lens + ITO sensor + FPC structure provides a reliable interface and enables seamless operation. The protective glass size is 125.3±0.2 × 82.8±0.2 millimeters, the visible area (VA) is 95.04±0.15 × 53.86±0.15 millimeters, and the thickness is 0.7 millimeters. The thickness of the glass sensor is 0.55 millimeters, and the total thickness of the touchscreen is 1.45±0.1 millimeters.
3. Optimal display and touch performance: The light transmittance is ≥ 85%, and the touchscreen provides clear and vivid visual effects. The surface hardness is 6H, which can resist scratches and wear, ensuring the product is durable. The working environment temperature range is -20°C to +70°C, it can withstand humidity ≤ 90%RH, the storage environment temperature range is -30°C to +80°C, and the humidity ≤ 90%RH. The working voltage and interface voltage are both 2.8V - 3.3V.
4. Flexible interfaces and compatibility: The IIC interface type is convenient for integration into various systems. It is compatible with available operating systems such as Android, Linux, Windows, and Raspberry PI, making it a versatile choice for different B2B applications. The IC model GT911 and 6-PIN FPC further enhance its performance and connectivity.

Technical Specifications

Product name	4.3 Inch projected capacitive touch screen
Brand Name	WIWOTOUCH
Touch type	Multi touch(can be customized)
Application	Smart control, Medical, Industrial control, etc
Material	Sodalime, chemically strengthened
Interface type	IIC
Color	Black
Structure	Glass Lens+ITO sensor+FPC
Cover Glass Dimension	125.3±0.2*82.8±0.2 mm
Cover Lens VA	95.04±0.15*53.86±0.15 mm
Cover Lens Thickness	0.7 mm
Glass sensor Thickness	0.55 mm
SCA	0.2 mm
Total Thickness	1.45±0.1 mm
LCD resolution	TBD(As you need)
IC Model	GT911
FPC	6 PIN
Transmittance	≥85%
Surface Hardness	6 H
Operating Environment	-20℃~+70℃,≤90%RH
Storage Environment	-30℃~+80℃,≤90%RH
Operating Voltage	2.8 V-3.3 V
Interface Voltage	2.8 V-3.3 V
Surface treatment	As you need
General Tolerance	±0.2mm
Available operating systems	Android/Linux/Windows/Raspberry PI
Certificates	RoHS/Reach/ISO9001
Sample delivery	15 working days
Mass production delivery	2-4 weeks, according to customer requirements, the delivery time is slightly changed
Guarantee period	12 months
Packing	Plastic tray or antistatic bag or foam box or vacuum bag + carton

Diverse Application Scenarios

1.Intelligent control: In intelligent control systems, our 4.3-inch touchscreen provides the interface. Whether used in home automation systems or commercial building management, the customizable options and high-performance touch functionality of the touchscreen can achieve efficient operation.
2.Medical applications: For medical equipment, accuracy and reliability are crucial. Our touchscreen has durable characteristics, a wide operating temperature range, and high-quality display screens, making it suitable for portable medical monitors, diagnostic equipment, etc.
3.Industrial control: It can be used in industrial control panels, machine operation interfaces, and process monitoring systems. It has the ability to operate normally in harsh industrial environments, ensuring stable and reliable operation in these demanding conditions.

Comprehensive After-sales Service

With our 12-month warranty period, you can rest assured that we are responsible for the product. During this period, if any product malfunction occurs, our professional after-sales team will respond within 24 hours and promptly provide a solution for you. Throughout the product's usage cycle, we offer free technical support to help you solve any problems related to installation, integration, or operation.
