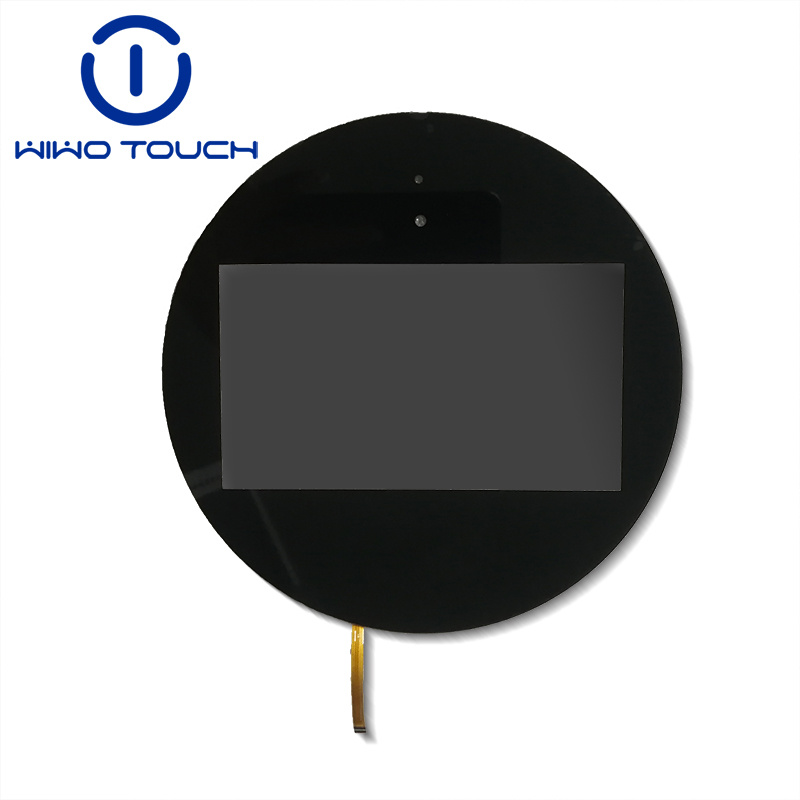

5 Inch Round Capacitive Touch Panel For Industrial
1.Model number: CYH050FF0392-V1.0 2.Application: Smart control, Medical device, Industrial control, etc 3.Structure: Glass Lens + Glass sensor+FPC 4.Touch type: Multi touch(can be customized) 5. Certificates: Reach, RoHS, ISO9001
Description
Product Feature
- Transmittance and Surface Hardness: With a transmittance of ≥85%, the screen offers clear and vivid visuals, while a surface hardness of 6 H ensures resistance to scratches and abrasions, maintaining its pristine appearance over time.
- Operating and Storage Environment: It can operate in a wide temperature range of - 20℃~+70℃ and a humidity level of ≤90%RH, and has a storage environment tolerance of - 30℃~+80℃, ≤90%RH. This makes it suitable for deployment in diverse geographical locations and environmental conditions.
- Voltage Requirements: The operating voltage of 2.8 V - 3.3 V and interface voltage of 2.8 V - 3.3 V ensure compatibility with a wide range of power sources, simplifying integration into existing systems.
- IC Model and Other Features: Equipped with the FT5436DQQ IC model, it provides reliable touch sensing. The FPC can be customized as per your needs, and the surface treatment can also be tailored to suit specific application requirements. The general tolerance of ±0.2mm guarantees high - precision manufacturing.
Technical Specifications
| Product name | 5 Inch round projected capacitive touch screen |
| Brand Name | WIWOTOUCH |
| Touch type | Multi touch(can be customized) |
| Application | Smart control, Medical device, Industrial control, etc |
| Material | Sodalime |
| Interface type | IIC |
| Color | Black |
| Structure | Glass Lens+ITO sensor+FPC |
| Cover Glass Dimension | 144.00±0.10*144.00±0.10*1.05±0.10 mm |
| Cover Lens VA | 110.8±0.15*110.8±0.15 mm |
| Cover Lens Thickness | 0.7±0.05 mm |
| Glass sensor Thickness | 0.35±0.05 mm |
| SCA | 0.2 mm |
| Total Thickness | 1.05±0.1 mm |
| LCD resolution | TBD(As you need) |
| IC Model | FT5436DQQ |
| FPC | TBD(As you need) |
| Transmittance | ≥85% |
| Surface Hardness | 6 H |
| Operating Environment | -20℃~+70℃,≤90%RH |
| Storage Environment | -30℃~+80℃,≤90%RH |
| Operating Voltage | 2.8 V-3.3 V |
| Interface Voltage | 2.8 V-3.3 V |
| Surface treatment | As you need |
| General Tolerance | ±0.2mm |
| Available operating systems | Android/Linux/Windows/Raspberry PI |
| Certificates | RoHS/Reach/ISO9001 |
| Sample delivery | 15 working days |
| Mass production delivery | 2-4 weeks, according to customer requirements, the delivery time is slightly changed |
| Guarantee period | 12 months |
| Packing |
Plastic tray or antistatic bag or foam box or vacuum bag + carton |
Compatibility and Certifications
- Operating Systems: It is compatible with popular operating systems such as Android/Linux/Windows/Raspberry PI, providing purchasers with flexibility in system integration.
- Certifications: Holding RoHS/Reach/ISO9001 certifications, the product adheres to international quality and environmental standards, giving buyers peace of mind regarding product safety, environmental friendliness, and quality management.
