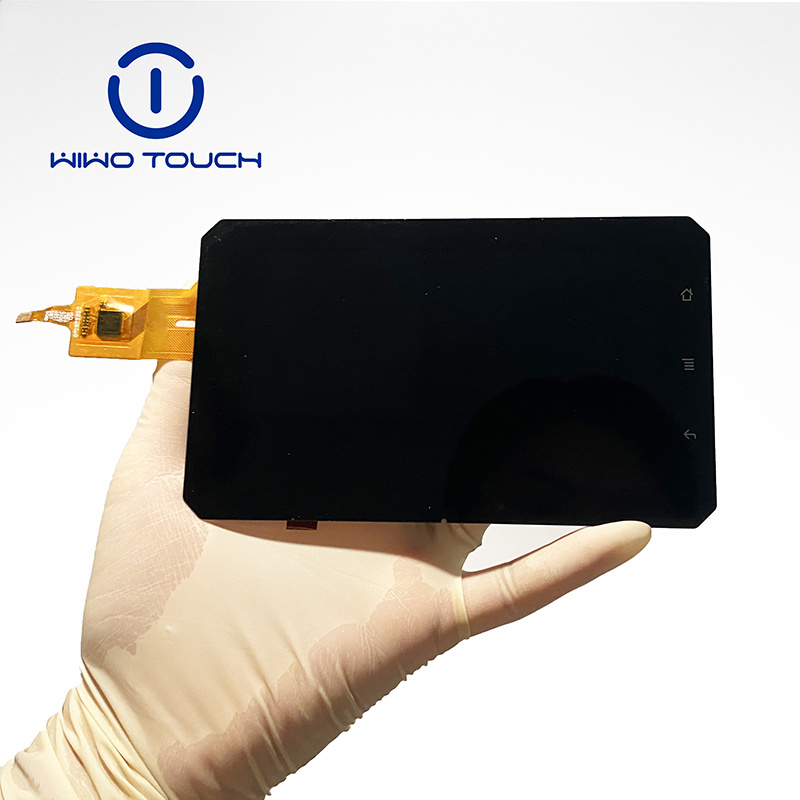

5 inch Touchscreen Display Monitor For Industrial

Category:

1. Model number of quality 5 inch touch screen: 046ACLL050GG 2. Structure: Glass Lens+ITO Glass+FPC 3. Touch type: Single-touch or Multi touch 4. Application: Smart control, Industrial, Intelligent robots, Handheld device, etc 5. Interface type: IIC control

Description

Product Feature

It adopts a glass lens + ITO glass structure, with a surface hardness of 6H. It has undergone triple AR/AF/AG treatments, achieving a light transmittance of ≥85%, and maintains clear display even in strong light conditions. It supports wide-temperature operation from -20℃ to 70℃, and with an IP65 protection rating, it can resist dust and water spray, making it suitable for harsh environments such as factory workshops and outdoor equipment.

Product Parameter

Product name	5 inch touch screen with LCD
Brand Name	WIWOTOUCH
Touch type	Single touch or Multi touch
Application	Industrial, Handheld device, Smart control, and Intelligent robots, etc
Interface type	IIC
Structure	Glass Lens+ITO Glass+FPC
Cover Glass Dimension	134.5±0.1*80.5±0.1 mm
Cover Lens VA	110.12*62.16 mm
Cover Lens Thickness	0.7±0.05 mm
ITO Glass Thickness	0.55±0.05 mm
Total Thickness	1.45±0.15 mm
LCD resolution	TBD (As you need)
FPC	6 PIN
IC Model	GT911
Transmittance	≥85%
Surface Hardness	6H
Operating Environment	-20℃~+70℃,≤45~90%RH
Storage Environment	-30℃~+80℃,≤45~90%RH
Operating Voltage	2.8 V-3.3 V
Interface Voltage	2.8 V-3.3 V
Surface treatment	AR(Anti-reflective); AF(Anti-fingerprint); AG(Anti-glare); waterproof
General Tolerance	±0.2mm
Available operating systems	Android/Linux/Windows
Certificates	RoHS/Reach/ISO9001
Sample delivery	15 working days
Mass production delivery	2-4 weeks, according to customer requirements, the delivery time is slightly changed
Guarantee period	12 months
Packing	Plastic tray or antistatic bag or foam box or vacuum bag + carton

Product Application

1.Industrial Automation Control

Applied to PLC control cabinets and production line monitoring terminals, the IP65 protection and wide temperature design ensure 24-hour continuous operation stability.

2.Smart Handheld Devices

The 0.7mm ultra-thin glass lens design, combined with FPC flexible circuit, meets the lightweight needs of handheld terminals. With excellent touch sensitivity.

3.Intelligent Robot Interaction

The GT911 main control chip has strong anti-interference ability, and can maintain accurate touch in robot workstations with complex electromagnetic environments. It facilitates the interaction between operators and robots, making the operation of robots more simple and efficient.

Customized Service

We offer customized solutions which are according to customer requirements.

Our touch screens mag be produced in a selected shape ,color , size of cover glass , touch IC ,thickness , packing,corner with logo and other additional element as per specification provided by the client.
Treament customizion: Anti-glare, Anti-fingreprint , Anti-reflective , Anti-UV , Antibacteral ,Waterproof, Vandal-proof , 3D curve sueface
IC: Atmel , ILITEK ,EETI , CYPRESS , etc.
