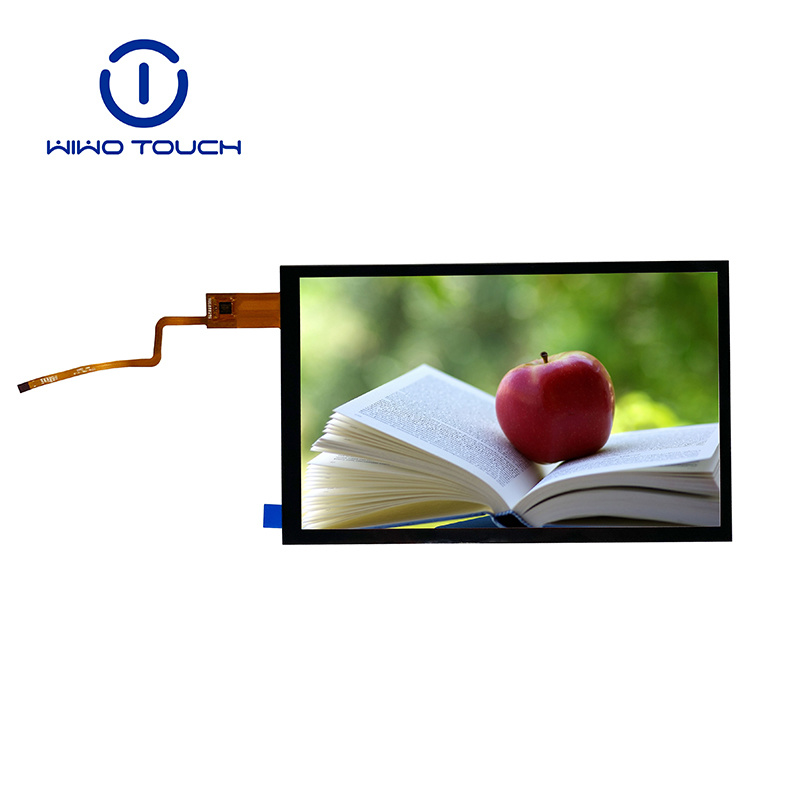

8 Inch Capacitive Touch Panel For Smart Electronic Scale

Category:

1. Model number of quality 8 inch touch screen: 177ACCD080GG-V1.0 2. Structure: Glass Lens+ITO Glass+FPC 3. Touch type: Single-touch or Multi touch 4. Application: Smart control, Industrial, Intelligent robots, Handheld device, etc 5. Interface type: IIC control 6. Color: Black

Description

Product Feature

1. Our 8-inch capacitive touch screen features a robust Glass Lens+ITO Glass+FPC structure with 2±0.1mm total thickness. The cover glass, treated with chemical reinforcement, achieves 6H surface hardness and ≥85% transmittance, ensuring clarity and durability in industrial environments. Operating voltage ranges from 2.8V-3.3V, compatible with Android/Linux/Windows systems. The GT1151 IC supports 10-point PCAP touch, customizable to meet your exact requirements.

2. The cover glass dimension is 185.46±0.1119.57±0.1 mm, and the cover lens VA is 172.82±0.2108.24±0.2 mm. With a cover glass2 thickness of 1.1 mm and ITO glass thickness of 0.7 mm, it maintains a compact total thickness. The FPC has 6 PIN, and the general tolerance is ±0.2mm, ensuring precise fitting with your devices.

Product Parameter

Product name	8 inch capacitive touch screen
Brand Name	WIWOTOUCH
Material	Sodalime, Chemical Reinforcement
Touch type	PCAP 10 points touch (Can be customized)
Application	Industrial, Handheld device, Smart control, etc
Interface type	IIC/USB
Structure	Glass Lens+ITO Glass+FPC
Cover Glass Dimension	185.46±0.1*119.57±0.1 mm
Cover Lens VA	172.82±0.2*108.24±0.2 mm
Cover Glass2 Thickness	1.1 mm
ITO Glass Thickness	0.7 mm
Total Thickness	2±0.1 mm
LCD resolution	TBD (As you need)
FPC	6 PIN
IC Model	GT1151
Transmittance	≥85%
Surface Hardness	6H
Operating Environment	-20℃~+60℃,≤45~90%RH
Storage Environment	-30℃~+70℃,≤45~90%RH
Operating Voltage	2.8 V-3.3 V
Interface Voltage	2.8 V-3.3 V
Surface treatment	AR(Anti-reflective); AF(Anti-fingerprint); AG(Anti-glare); waterproof
General Tolerance	±0.2mm
Available operating systems	Android/Linux/Windows
Certificates	RoHS/Reach/ISO9001
Sample delivery	15 working days
Mass production delivery	2-4 weeks, according to customer requirements, the delivery time is slightly changed
Guarantee period	12 months
Packing	Plastic tray or antistatic bag or foam box or vacuum bag + carton

Customization Options

We specialize in OEM/ODM solutions:

Touch Points: 10-point standard, customizable to 5/10/15 points
Interface: I2C/USB dual support, FPC length adjustable
Surface Treatment: Anti-glare, Anti-fingerprint, or Anti-reflective Waterproofness
LCD Resolution: TBD based on your device specifications

Certifications & Compliance

Fully compliant with EU RoHS and Reach directives, ensuring zero hazardous substances. ISO9001-certified production processes guarantee consistent quality for large-scale orders. Our products are CE/FCC-approved, suitable for export to North America, Europe, and Asia-Pacific markets. These certifications make our 8-inch capacitive touch screen a reliable choice for various procurement needs.
