10.1 inch 1280*800 resolution capacitive touch display

Category:

1. Model number of quality 10.1 inch touch screen: 002ACTL101GG 2. Structure: Glass Lens+ITO Glass+FPC 3. Touch type: Single-touch or Multi touch 4. Application: Smart control, Industrial, Intelligent robots, Handheld device, etc 5. Interface type: IIC control 6. Color: Black

Description

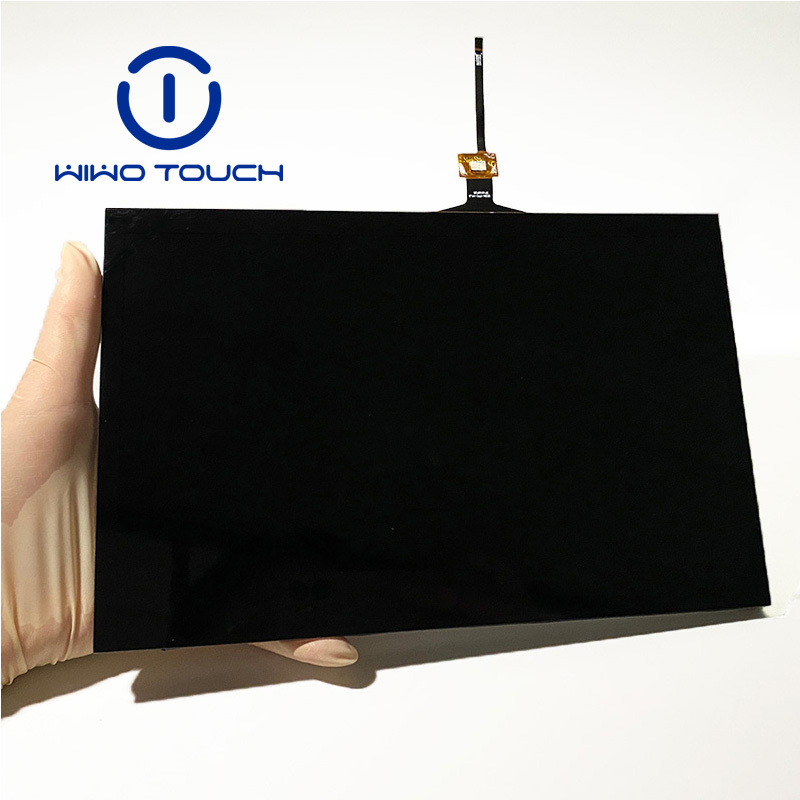

WIWOTOUCH 10.1 inch capacitive touch screen is a high-performance product, boasting 10-point PCAP touch technology and a 1280*800 resolution, it delivers precise and responsive operation, ensuring a seamless user experience. Our touch screens come with competitive wholesale prices and flexible options to cater to your every need.

Product Feature

Premium Quality Materials: Crafted with sodalime glass that undergoes chemical reinforcement, the touch screen features a surface hardness of 6H, making it highly resistant to scratches, impacts, and daily wear and tear. This ensures a long service life, reducing the need for frequent replacements and lowering overall costs for bulk orders.

Wide Compatibility: The touch screen is compatible with major operating systems including Android, Linux, and Windows, making it easy to integrate into various devices and systems. This versatility eliminates compatibility issues, saving you time and effort in the development and production process, which is crucial for bulk procurement.

Product Parameter

Product name	10.1 inch capacitive touch screen
Brand Name	WIWOTOUCH
Material	Sodalime, Chemical Reinforcement
Touch type	PCAP 10 points touch (Can be customized)
LCD Brightness	300cd/m²
Interface type	IIC/USB
Structure	Glass Lens+ITO Glass+FPC
Cover Glass Dimension	229.6±0.3*149.7±0.3 mm
Cover Lens VA	217.96±0.15*136.6±0.15 mm
Cover Glass Thickness	1.1±0.05 mm
ITO Glass Thickness	0.7±0.05 mm
Total Thickness	2±0.1 mm
LCD resolution	1280*800
LCD Viewing Direction	Free
FPC	6 PIN
IC Model	FT5426
Transmittance	≥85%
Surface Hardness	6H
Operating Environment	-20℃~+70℃,≤90%RH
Storage Environment	-30℃~+80℃,≤90%RH
Operating Voltage	2.8 V-3.3 V
Interface Voltage	2.8 V-3.3 V
Surface treatment	AR(Anti-reflective); AF(Anti-fingerprint); AG(Anti-glare); waterproof
General Tolerance	±0.2mm
Available operating systems	Android/Linux/Windows
Certificates	RoHS/Reach/ISO9001
Sample delivery	15 working days
Mass production delivery	2-4 weeks, according to customer requirements, the delivery time is slightly changed
Guarantee period	12 months
Packing	Plastic tray or antistatic bag or foam box or vacuum bag + carton

Flexible Customization

If you need a customized touch screen, simply provide us with your detailed requirements, including touch points, interface type, surface treatment, and other specifications. Our technical team will evaluate your needs and provide a feasible solution and quotation within a short time. Once confirmed, we will start production promptly.

Fast Delivery

We value your time and strive to meet your production schedules. Samples can be delivered within 20 working days, allowing you to test and evaluate the product quickly. For mass production, the delivery time is 4 weeks, and it can be adjusted slightly according to your specific requirements, ensuring that you have a steady supply for your production line.

Comprehensive Certifications

Our 10.1 inch capacitive touch screen has obtained RoHS, Reach, and ISO9001 certifications, meeting strict international standards for quality and environmental protection. This makes it suitable for sale and use in global markets, giving you peace of mind when making bulk purchases for international projects.
