WIWOTCOUH 13.3 inch LCD touch display touch screen for AOI identification system
NO. : 017ACMK133GG-V1.0-TP+LCM Type: LCD + capacitive touch panel Structure: LCD + Cover Glass+ ITO Glass Touch panel IC interface: USB Controller board: ILI2511
Description

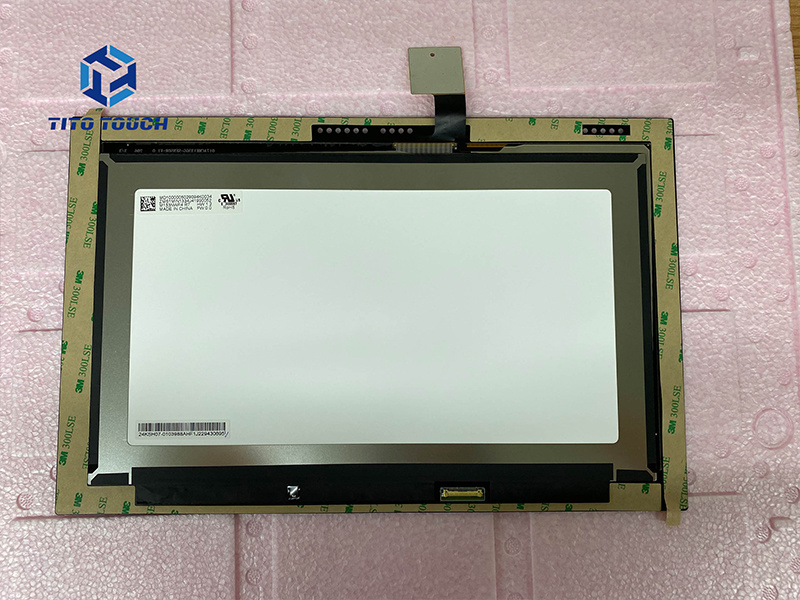

There is a touch display(017ACMK133GG-V1.0) used in AOI identification system projects. 017ACMK133GG-V1.0 is a 13.3 inch LCD capacitive screen/panel, this product uses optical bonding. Optical bonding can make video images more colorful, LCD and CTP gap is small, reduce ash rate. We support the air bonding and the optical bonding and product customization, tailored for you to create a suitable solution.
|
13.3 inch LCD touch display |
|
|
Model NO. |
017ACMK133GG-V1.0-TP+LCM |
|
Resolution |
1920× RGB × 1080 |
|
LCD driver IC |
\ |
|
Touch Type |
Projected capacitive touch panel |
|
LCD interface |
RGB |
|
Brightness |
250cd/m2 |
|
Area Area |
162.05(W)x121.54(H) mm |
|
Outline Dimension of LCD |
300.26(W)x187.75(H)x2.4(D)mm |
|
Structure |
LCD+ Cover Glass+ ITO Glass |
|
Product Dimensions of touch panel |
336.4±0.15*294±0.15*1.1±0.1MM |
|
Dimensions of Sensor Glass |
303.97±0.2*179.08±0.2*0.7±0.3MM |
|
Cover glass Area View |
294±0.15*165.6±0.15MM |
|
Thickness of Sensor Glass |
1.1MM |
|
Thickness of Cover Glass |
0.7MM |
|
Total Thickness |
2.0±0.2MM |
|
Surface hardness |
≥6H |
|
Transparency |
≥90% |
|
Operating temperature |
–20℃~60℃ 20-85% RH |
|
Storage temperature |
–30℃~70℃ 10-95% RH |
|
Surface treatment |
no |
|
Touch panel IC |
ILI2511 |
|
Interface |
USB |
|
Touch-points |
5-10 points |
|
Precision |
±1.0MM |
|
Linearity |
±1.0MM |
|
Guarantee period |
12 months |
|
Packing |
Plastic tray or antistatic bag or foam box or vacuum bag + carton |
13.3 inch touch display
13.3 inch LCD touch screen
