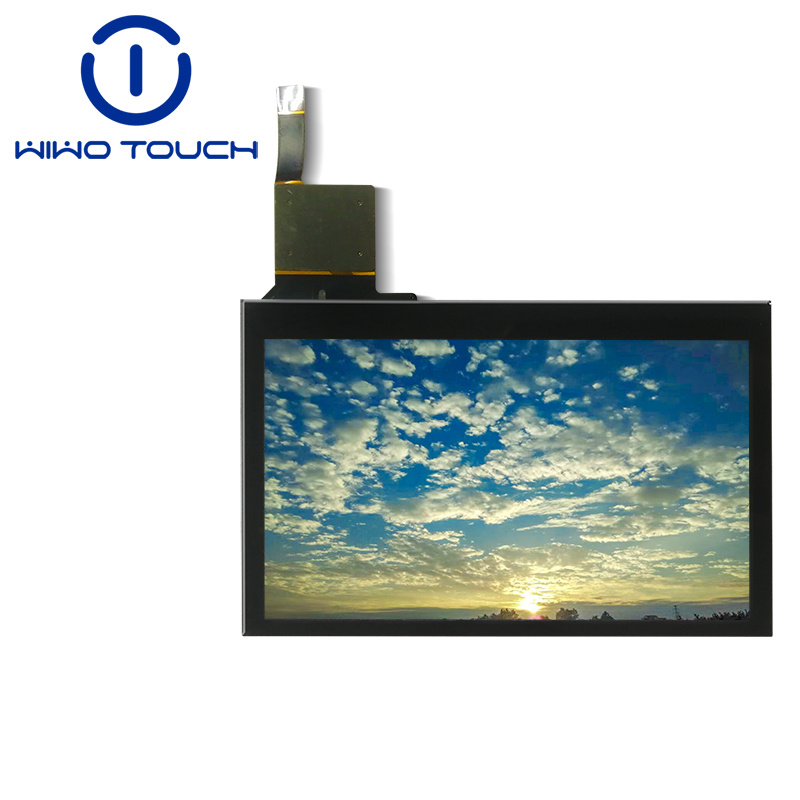

4.3 inch capacitive touch panel for handheld device

Category:

1.Model number: C4D043GG119 2.Application: Handheld device, Medical device, Industrial control, etc 3.Structure: Glass Lens + Glass sensor+FPC 4.Touch type: Multi touch(can be customized) 5. Certificates: Reach, RoHS, ISO9001

Description

Working Principle

The 4.3-inch capacitive panel introduced here adopts advanced capacitive touch technology. Its core principle is based on the human body's electrostatic induction. When a user's finger touches the capacitive panel, due to the presence of static electricity in the human body, the electric field distribution on the panel surface will change, thereby causing a change in the capacitance value. As shown in the following figure, this is the principle:

Introduction

C4D043GG119 is the 4.3 inch capacitive touch screen standard product with IIC interface. It is compact and stylish, with a thickness of just 1.45mm, and is tailored for customer-facing applications such as POS checkout, digital signage and hotel services. In addition, because of its slim shape and small footprint, it is also very suitable for industrial, kitchen equipment controllers and kitchen display systems.

High Definition and Vivid Colors

Our 4.3-inch capacitive panel performs exceptionally well in display clarity and can support customized resolutions. It can accurately reproduce the true colors of images.

Ultra-Sensitive Touch and Smooth Operation

One of the significant advantages of capacitive panels is their extremely high touch sensitivity. Just by gently touching the screen with your finger, the panel can recognize it. Moreover, it supports multi-touch, allowing for simultaneous recognition of multiple finger touch actions.

Outstanding Durability and Stability

In terms of material selection, this 4.3-inch capacitive panel uses tough and durable chemically strengthened glass. It not only has a good light transmittance of ≥83%, but also has a surface hardness of ≥6H, which can effectively resist wear and tear during daily use. At the same time, it can operate normally within a relatively wide temperature range, with an operating temperature range of -20°C to +70°C and a storage temperature range of -30°C to +80°C.

Main Technical Parameters Of Capacitive Touch Panel

Brand Name	WIWOTOUCH
Touch type	Multi touch
Application	Medical, Industrial, Smart control, etc
Interface type	IIC
Structure	Glass Lens+ITO Glass+FPC
Cover Glass Dimension	105.14±0.1*66.21±0.1 mm
Cover Lens VA	95.84±0.1*54.66±0.1 mm
Cover Lens Thickness	0.7 mm
ITO Glass Thickness	0.55 mm
Total Thickness	1.45±0.1mm
FPC	10 PIN
IC Model	FT5306
Transmittance	≥83%
Surface Hardness	6H
Operating Environment	-20℃~+70℃,≤90%RH
Storage Environment	-30℃~+80℃,≤90%RH
Sample delivery	15 working days
Mass production delivery	2-4 weeks, according to customer requirements, the delivery time is slightly changed
Guarantee period	12 months
Packing	Plastic tray or antistatic bag or foam box or vacuum bag + carton

Customized Service

We offer customized solutions which are according to customer requirements.

Our touch screens mag be produced in a selected shape ,color , size of cover glass , touch IC ,thickness , packing,corner with logo and other additional element as per specification provided by the client.
Treament customizion: Anti-glare, Anti-fingreprint , Anti-reflective , Anti-UV , Antibacteral ,Waterproof, Vandal-proof , 3D curve sueface
IC: Atmel , ILITEK ,EETI , CYPRESS , etc
