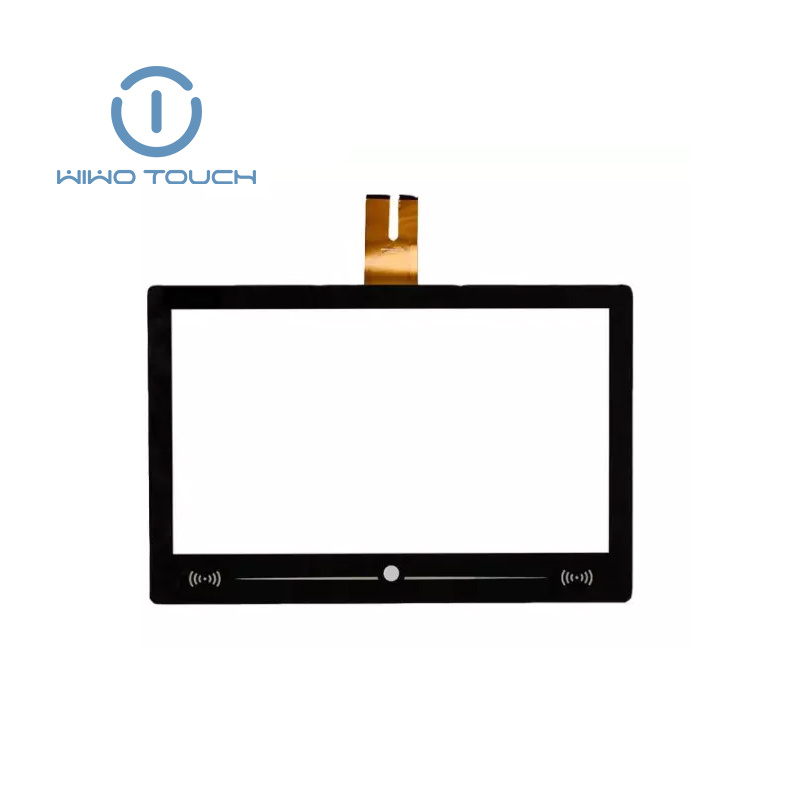

21.5 Inch Capacitive Touch Panel For Interactive Kiosks

Category:

1.Model number: CHX215GG001-V1.0 2.Application: Industrial control, Smart control, Interactive touch table, etc 3.Structure: Cover lens+ITO Glass+FPC 4.Touch type: PCAP 5-10 points touch

Description

Product Feature

Precise Dimensions

Our 21-inch projection capacitive touchscreen adopts the Glass+Glass structure, ensuring durability and stability. Its overall dimensions are 526.4*347.6*6MM, the sensor glass size is 482.15*273.8*0.7MM, and the visible area is 476.15*266.7. Whether for large-screen operation or precise display, it can present perfectly. The sensor glass thickness is 6MM, the cover glass is 0.7MM, and the total thickness is 7±0.2MM. We ensure a lightweight design while also considering strength and stability.

The touch screen is responsive

Utilizing the latest capacitive technology, this touchscreen panel delivers lightening touch response with virtually no latency, providing instant feedback during swiping, tapping, and zooming.

Wide compatibility

With excellent compatibility, it can be easily integrated into different systems and devices, whether Windows, Android or Linux systems, ensuring seamless connectivity.

Product Parameter:

Product name	21.5 Inch Capacitive touch panel
Brand Name	WIWOTOUCH
Touch type	PCAP 5-10 points touch
Material	Sodalime
Application	Industrial control, Self-service touch table, Smart control etc
Interface type	IIC/USB
Structure	Glass Lens+ITO Glass+FPC
Cover Glass Dimension	526.4±0.3*347.6±0.3mm
Cover Lens VA	474±0.3*266.4±0.3mm
Cover Lens Thickness	2.0±0.2 mm
ITO Glass Thickness	0.7 mm
Total Thickness	2.9±0.1 mm
LCD resolution	TBD(As you need)
IC Model	ILI2302M
FPC	TBD
Transmittance	≥83%
Surface Hardness	6H
Operating Environment	-10℃~+70℃,≤90% RH
Storage Environment	-20℃~+80℃,≤90% RH
Operating Voltage	2.8 V-3.3 V
Interface Voltage	2.8 V-3.3 V
Surface treatment	AR(Anti-reflective); AF(Anti-fingerprint); AG(Anti-glare); waterproof
General Tolerance	±0.2mm
Available operating systems	Android/Linux/Windows
Certificates	RoHS/Reach/ISO9001
Sample delivery	15 working days
Mass production delivery	2-4 weeks, according to customer requirements, the delivery time is slightly changed
Guarantee period	12 months
Packing	Plastic tray or antistatic bag or foam box or vacuum bag + carton

Application Scenarios

Interactive Kiosks: Perfect for use in interactive kiosks in retail, hospitality, and public information systems, offering intuitive touch interactions for users.
Point of Sale (POS) Systems: Used in POS systems in retail and hospitality sectors, providing efficient and user-friendly transaction processing.
Healthcare: Suitable for medical devices and healthcare information systems, offering reliable touch functionality in a clean and hygienic interface.
Education and Training: Used in educational and training environments for interactive learning and presentations.
