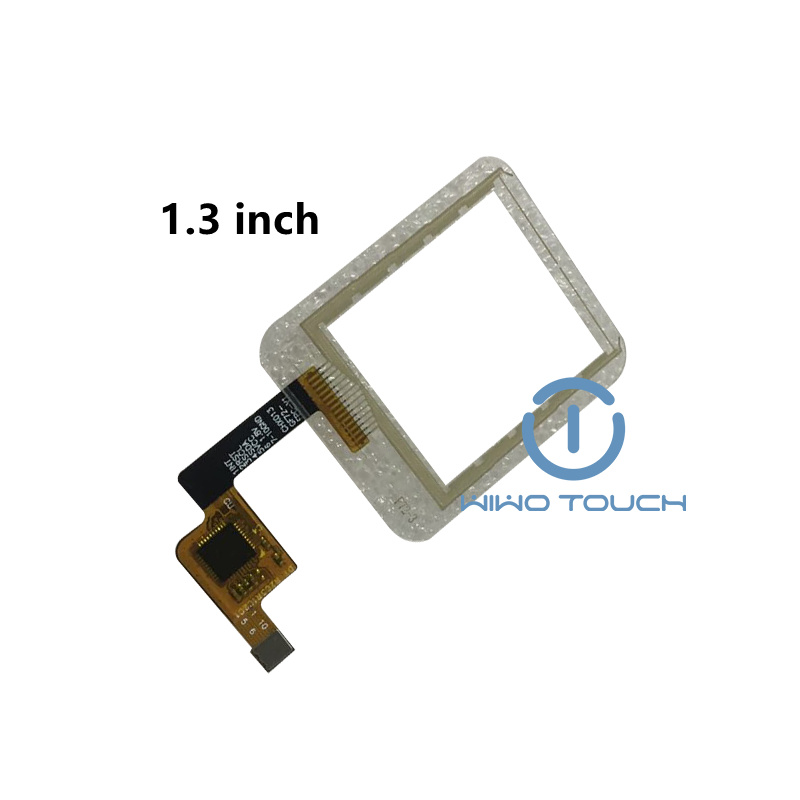

1.3 inch capacitive touch panel for watch

Category:

1.Model number: CHX013GF72-V1.0 2.Application: Smartwatch, Small portable device, etc 3.Structure: Glass lens+Film sensor+FPC 4.Touch type: single touch

Description

Product Feature

Glass covering design

The glass cover plate is made of high-strength glass material, which can effectively resist scratches and wear, thereby extending the product's service life. This glass covering layer also supports various coating treatments, such as anti-glare (AG), anti-reflective (AR), and anti-fingerprint (AF) coatings, ensuring optimal visibility and performance even in outdoor or strong light environments.

Durability

This touchscreen is made of tempered glass, which has excellent scratch resistance and wear resistance. Its surface hardness is ≥ 6H, ensuring a long service life even during daily use.

Product Parameter

Product name	1.3 Inch Capacitive touch panel
Brand Name	WIWOTOUCH
Touch type	single touch
Application	Industrial control, Wearable device, Handheld device etc
Interface type	IIC/USB
Structure	Glass Lens+Film Sensor+FPC
Cover Glass Dimension	33.8±0.1*37.8±0.1 mm
Film Sensor Dimension	33.4±0.2*37.4±0.2 mm
Cover Lens VA	23.9±0.15*23.9±0.15 mm
Cover Lens Thickness	0.95 mm
ITO Glass Thickness	0.25 mm
Total Thickness	1.2±0.2 mm
LCD resolution	TBD(As you need)
IC Model	FT6336G
FPC	10 PIN
Transmittance	≥82%
Surface Hardness	6H
Operating Environment	-20℃~+70℃,≤90% RH
Storage Environment	-30℃~+80℃,≤90% RH
Operating Voltage	2.8 V-3.3 V
Interface Voltage	2.8 V-3.3 V
Surface treatment	AR(Anti-reflective); AF(Anti-fingerprint); AG(Anti-glare); waterproof
General Tolerance	±0.2mm
Available operating systems	Android/Linux/Windows
Certificates	RoHS/Reach/ISO9001
Sample delivery	15 working days
Mass production delivery	2-4 weeks, according to customer requirements, the delivery time is slightly changed
Guarantee period	12 months
Packing	Plastic tray or antistatic bag or foam box or vacuum bag + carton

Customized Service

Support custom size, bezel design and touch screen surface treatment to meet different customer needs.

Optional surface treatments such as anti-fingerprint, anti-glare, anti-reflection, and waterproof can significantly improve the readability, clarity, touch experience, and service life of capacitive touch screens.
Optional special coatings, such as anti-fingerprint and anti-bacterial finishes, enhance the user experience and product hygiene.
Frame design can be customized according to customer requirements, easy to integrate into a variety of equipment to meet different product appearance and functional needs, optional thickness and frame color enhance product flexibility and adaptability.

Certifications

The product has passed RoHS, Reach, and ISO9001 certifications, fully complying with international medical industry standards, so you don't have to worry about regulatory compliance issues during procurement.

Sample & Mass Production Delivery Time

Sample Delivery: Only 15 working days. If you need to test the compatibility and performance of the touch panel with your hospital equipment console before mass procurement, you can apply for samples, and we will deliver them quickly to shorten your test cycle.

Mass Production Delivery: 2-4 weeks (the delivery time will be slightly adjusted according to your specific order quantity and requirements). We have a professional production team and sufficient production capacity to ensure that we can deliver the goods on time according to the procurement contract, avoiding the impact of equipment production caused by delayed delivery.

Quality Guarantee

We provide a 12-month guarantee period for this 7-inch capacitive touch panel. During the guarantee period, if there is any quality problem with the product (non-human damage), we will provide repair. This can reduce your procurement risk and ensure that your hospital's equipment operation is not affected by product quality problems.

Packing Options

To ensure that the touch panel is not damaged during transportation (especially for long-distance procurement), we provide multiple packing options:

1. Plastic tray

2. Antistatic bag

3. Foam box

4. Vacuum bag + carton

You can choose the appropriate packing method according to your transportation distance and storage needs, and we will strictly follow your requirements for packing.
