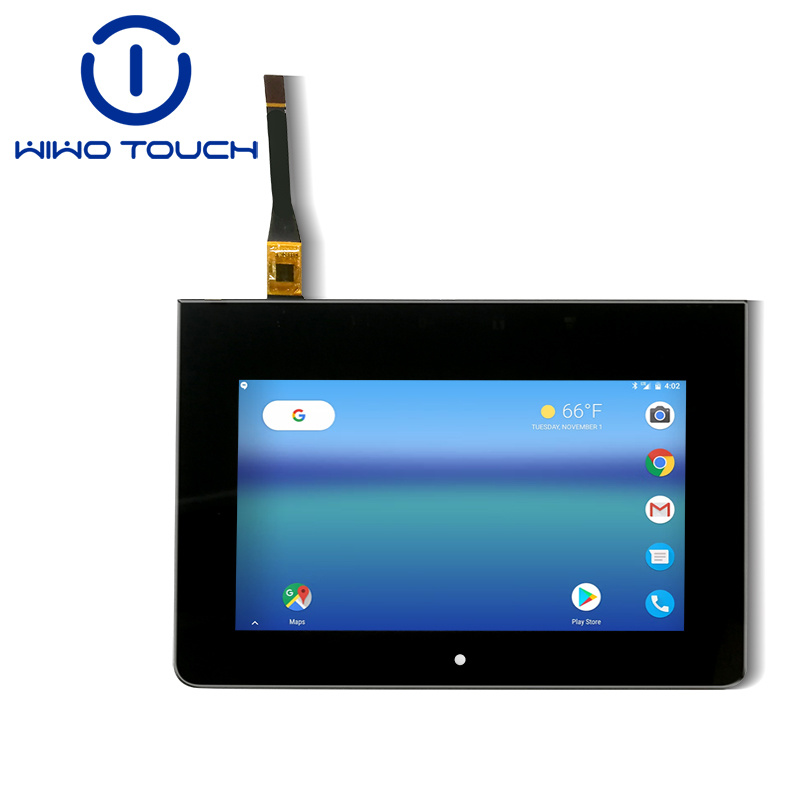

7 inch capacitive touch panel for medical

Category:

1.Model number: CGL070GG113A 2.Application: Automotive, Medical device, Kiosk, etc 3.Structure: Glass Lens + ITO glass sensor+FPC 4.Touch type: Multi touch(can be customized) 5. Certificates: Reach, RoHS, ISO9001

Description

Product Feature

1. Multi-touch Function and Customization
This touch panel supports multi-touch (which can be customized according to your specific needs). Whether it's enlarging data, switching between interface options, or quickly selecting functions, the multi-touch feature can significantly enhance the speed and accuracy of operations.

2. High Light Transmittance and Clear Display
The light transmittance of this touch panel is ≥ 83%, ensuring that the display content of the hospital equipment operation control console is clearly visible.

3. Strong surface hardness and durability
The surface hardness of the touch panel reaches 6H, featuring excellent scratch resistance and wear resistance. The high hardness surface can effectively prevent these damages, ensuring the long-term normal operation of the touch screen and reducing the maintenance and replacement costs of the equipment.

Product Parameter

Product name	7 Inch Capacitive touch panel
Brand Name	WIWOTOUCH
Touch type	Multi touch(can be customized)
Application	Smart control, Automotive, Industrial control, etc
Interface Type	IIC
Structure	Glass Lens+ ITO Glass+FPC
Cover Glass Dimension	207.65±0.1*137.65±0.1 mm
Cover Lens VA	155±0.15*87±0.15 mm
Cover Lens Thickness	1.1mm
ITO Glass Thickness	0.55mm
Total Thickness	1.85±0.1 mm
General Tolerance	±0.2 mm
LCD Resolution	TBD(As you need)
IC Model	FT6436
Transmittance	≥83%
Surface Hardness	6H
Operating Environment	-20℃~+70℃,≤90% RH
Operating Environment	-30℃~+80℃,≤90% RH
Operating Voltage	2.8 V-3.3 V
Interface Voltage	2.8 V-3.3 V
Surface treatment	As your need.
General Tolerance	AR(Anti-reflective); AF(Anti-fingerprint); AG(Anti-glare); waterproof
Available operating systems	Android/Linux/Windows/Raspberry PI
Certificates	RoHS/Reach/ISO9001
Sample delivery	15 working days
Mass production delivery	2-4 weeks, according to customer requirements, the delivery time is slightly changed
Guarantee period	12 months
Packing	Plastic tray or antistatic bag or foam box or vacuum bag + carton

Sample & Mass Production Delivery Time

Sample Delivery: Only 15 working days. If you need to test the compatibility and performance of the touch panel with your hospital equipment console before mass procurement, you can apply for samples, and we will deliver them quickly to shorten your test cycle.

Mass Production Delivery: 2-4 weeks (the delivery time will be slightly adjusted according to your specific order quantity and requirements). We have a professional production team and sufficient production capacity to ensure that we can deliver the goods on time according to the procurement contract, avoiding the impact of equipment production caused by delayed delivery.

Quality Guarantee

We provide a 12-month guarantee period for this 7-inch capacitive touch panel. During the guarantee period, if there is any quality problem with the product (non-human damage), we will provide repair. This can reduce your procurement risk and ensure that your hospital's equipment operation is not affected by product quality problems.

Packing Options

To ensure that the touch panel is not damaged during transportation (especially for long-distance procurement), we provide multiple packing options:

1. Plastic tray

2. Antistatic bag

3. Foam box

4. Vacuum bag + carton

You can choose the appropriate packing method according to your transportation distance and storage needs, and we will strictly follow your requirements for packing.

Customization Support

We understand that different hospital equipment consoles may have different requirements for touch panels. Therefore, we provide comprehensive customization services, including:

1.Customization of touch functions (such as single-touch, multi-touch with different numbers of points)

2.Customization of surface treatment (such as adding waterproof function, enhancing anti-glare effect)

3.Customization of LCD resolution (matching the display requirements of your equipment console)

If you have any customization needs, our professional technical team will communicate with you in detail, provide customized solutions, and ensure that the customized touch panel can perfectly meet the use needs of your hospital equipment console.
