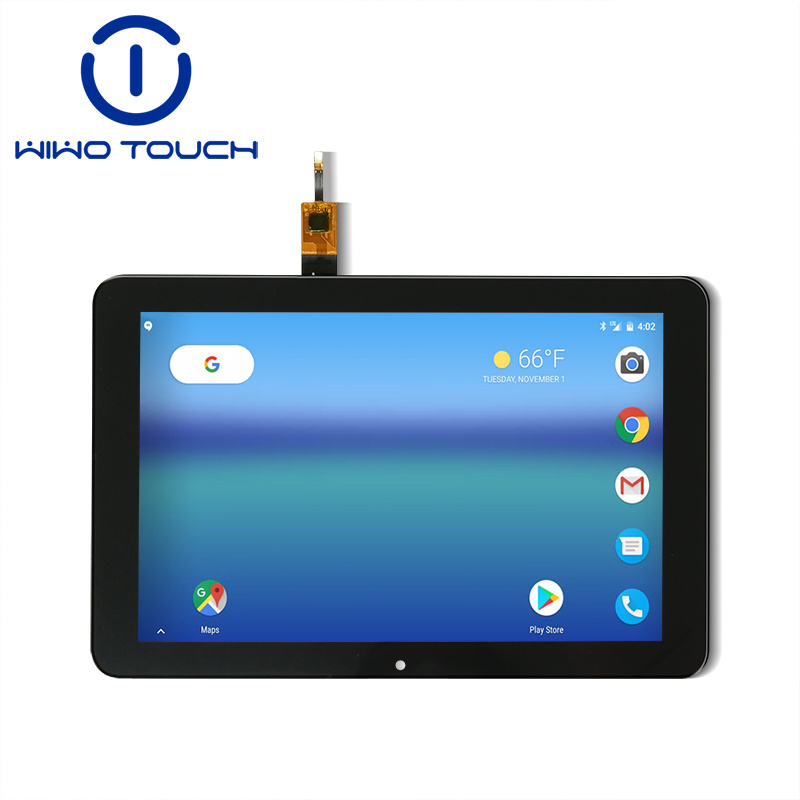

10.1 inch capacitive touch panel for Hospital equipment operation console

Category:

1.Model number: CGG101GG148-V1.0 2. Application: Smart control, kiosk, Industrial,etc 3. Structure: Glass Lens+ITO Glass+FPC 4. Touch type: PCAP 10 points touch 5. Certificates: RoHS, Reach, ISO9001

Description

Product Feature

Medical-grade reliability: Certified by RoHS/Reach/ISO9001, suitable for strict medical environments.
Outstanding display performance: ≥85% high light transmittance, ensuring clear visibility under various lighting conditions.
Durable design: 6H surface hardness, strong scratch resistance, and support for AR/AF/AG/waterproof treatment.
Multi-system compatibility: Perfectly supports Android/Linux/Windows operating systems.
Wide temperature operation: -20℃ to +70℃ operating temperature range, adaptable to various environments.

Product Parameter

Product name	10.1 Inch Capacitive touch panel
Brand Name	WIWOTOUCH
Touch type	PCAP 10 points touch
Application	Industrial, Medical device, Smart control, etc
Interface type	IIC/USB
Structure	Glass Lens+ITO Glass+FPC
Cover Glass Dimension	257.96±0.1*168.6±0.1mm
ITO Glass Dimension	227.1±0.2*149.9±0.2 mm
Cover Lens VA	217.66±0.2*136.6±0.2mm
Cover Lens Thickness	0.7mm
ITO Glass Thickness	0.7 mm
Total Thickness	1.4±0.1 mm
LCD resolution	1280*800
IC Model	GT615
Transmittance	≥85%
Surface Hardness	6H
Operating Environment	-20℃~+70℃,≤20~85% RH
Storage Environment	-30℃~+80℃,≤20~85% RH
Operating Voltage	2.8 V-3.3 V
Interface Voltage	2.8 V-3.3 V
Surface treatment	AR(Anti-reflective); AF(Anti-fingerprint); AG(Anti-glare); waterproof
General Tolerance	±0.2mm
Available operating systems	Android/Linux/Windows
Certificates	RoHS/Reach/ISO9001
Sample delivery	15 working days
Mass production delivery	2-4 weeks, according to customer requirements, the delivery time is slightly changed
Guarantee period	12 months
Packing	Plastic tray or antistatic bag or foam box or vacuum bag + carton

Procurement Service Support

1. Flexible Customization Service
We offer flexible customization services. Whether it's adjustments to surface treatment processes, changes in interface types, or customization of size specifications, production can be carried out according to your specific procurement requirements.

2. Rapid Sample Testing
Before large-scale procurement, if you need to test the product performance, we can deliver samples within 15 working days, allowing you to verify key indicators such as touch accuracy, compatibility, and durability through actual testing.

3. Stable Batch Delivery
For large-scale procurement needs, we have a mature production line and sufficient capacity. Based on your procurement quantity and production plan, we can complete batch delivery within 4 weeks (the specific delivery time can be adjusted according to customer requirements).

4. Comprehensive After-sales Guarantee
We provide comprehensive after-sales guarantee services. The product enjoys a 12-month warranty period. We have a professional after-sales customer service team. Whether you consult product information before procurement or encounter installation and usage problems after procurement, you can contact us at any time. We will provide you with professional solutions in the first instance, ensuring that your procurement is worry-free.

5. Transparent Quotation System
We adopt a transparent quotation system. When you inquire about procurement requirements, we will provide you with a detailed and transparent quotation based on factors such as procurement quantity and customization requirements, without any hidden charges.
