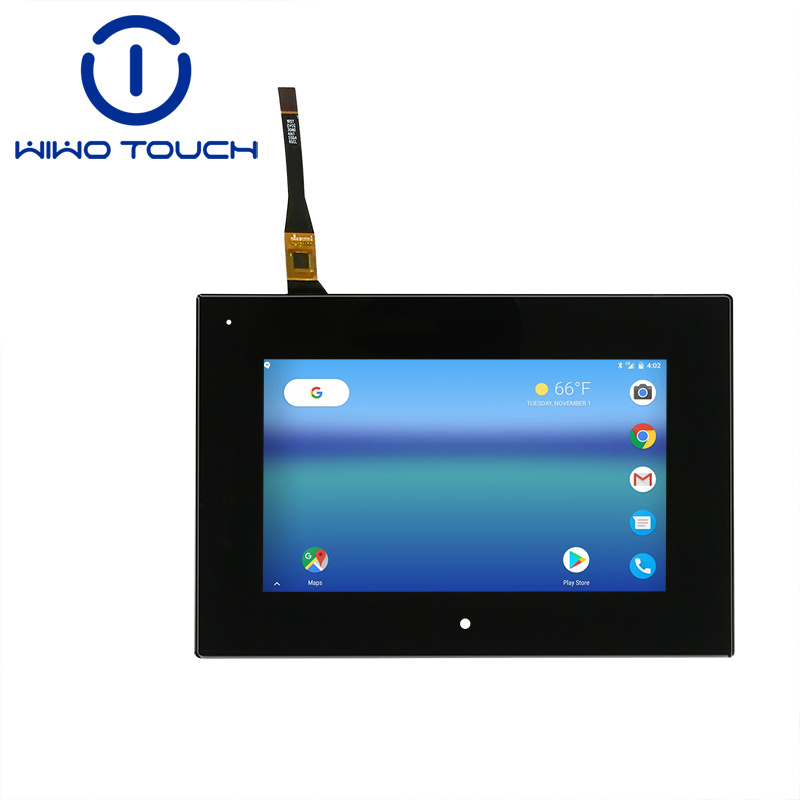

Custom AG 7 inch capacitive touch panel

Category:

1.Model number: CGL070GG113A 2.Application: Automotive, Medical device, Kiosk, etc 3.Structure: Glass Lens + ITO glass sensor+FPC 4.Touch type: Multi touch(can be customized) 5. Certificates: Reach, RoHS, ISO9001

Description

Product Feature

Multi-touch + Customization: Supports multi-touch operation and can be customized according to the number of touch points required to meet the interaction function requirements of different devices, enhancing the competitiveness of terminal products. Please provide the text you would like translated.

High durability: 6H surface hardness effectively resists daily scratches; ≥83% light transmittance ensures clear display images and reduces the device return rate due to touch panel issues. Please provide the text you would like translated.

Wide environmental adaptability: Operating temperature range of -20℃ to +70℃ (extreme -30℃ to +80℃), suitable for usage in various regions and scenarios.

Product Parameter

Product name	7 Inch Capacitive touch panel
Brand Name	WIWOTOUCH
Touch type	Multi touch(can be customized)
Application	Smart control, Automotive, Industrial control, etc
Interface Type	IIC
Structure	Glass Lens+ ITO Glass+FPC
Cover Glass Dimension	207.65±0.1*137.65±0.1 mm
Cover Lens VA	155±0.15*87±0.15 mm
Cover Lens Thickness	1.1mm
ITO Glass Thickness	0.55mm
Total Thickness	1.85±0.1 mm
General Tolerance	±0.2 mm
LCD Resolution	TBD(As you need)
IC Model	FT6436
Transmittance	≥83%
Surface Hardness	6H
Operating Environment	-20℃~+70℃,≤90% RH
Operating Environment	-30℃~+80℃,≤90% RH
Operating Voltage	2.8 V-3.3 V
Interface Voltage	2.8 V-3.3 V
Surface treatment	As your need.
General Tolerance	AR(Anti-reflective); AF(Anti-fingerprint); AG(Anti-glare); waterproof
Available operating systems	Android/Linux/Windows/Raspberry PI
Certificates	RoHS/Reach/ISO9001
Sample delivery	15 working days
Mass production delivery	2-4 weeks, according to customer requirements, the delivery time is slightly changed
Guarantee period	12 months
Packing	Plastic tray or antistatic bag or foam box or vacuum bag + carton

Customization Support

We understand that different hospital equipment consoles may have different requirements for touch panels. Therefore, we provide comprehensive customization services, including:

1.Customization of touch functions (such as single-touch, multi-touch with different numbers of points)

2.Customization of surface treatment (such as adding waterproof function, enhancing anti-glare effect)

3.Customization of LCD resolution (matching the display requirements of your equipment console)

If you have any customization needs, our professional technical team will communicate with you in detail, provide customized solutions, and ensure that the customized touch panel can perfectly meet the use needs of your hospital equipment console.

Quick Delivery

Samples can be obtained within 15 working days, accelerating the product development and testing process of the purchasers; Batch production can be delivered within 2-4 weeks, and can be flexibly adjusted according to the order quantity to ensure the smooth progress of the purchaser's production plan.

Flexible Packaging

Various packaging methods such as plastic pallets, anti-static bags, foam boxes, vacuum bags + cardboard boxes are provided. You can choose flexibly based on the transportation distance and storage environment to reduce product transportation losses and minimize the losses of the purchasers.

Authoritative Certification

Certified by RoHS, Reach, and ISO9001, in line with international environmental protection and quality standards. Purchasers have no compliance risks for export or domestic sales, ensuring product market access.
