8 inch waterproof touch display panel

Category:

1.Model number: CYH080GG0373-V1.0 2.Application: Handheld device, Medical device, Industrial control, etc 3.Structure: Glass Lens + Glass sensor+FPC 4.Touch type: Multi touch(can be customized) 5. Certificates: Reach, RoHS, ISO9001

Description

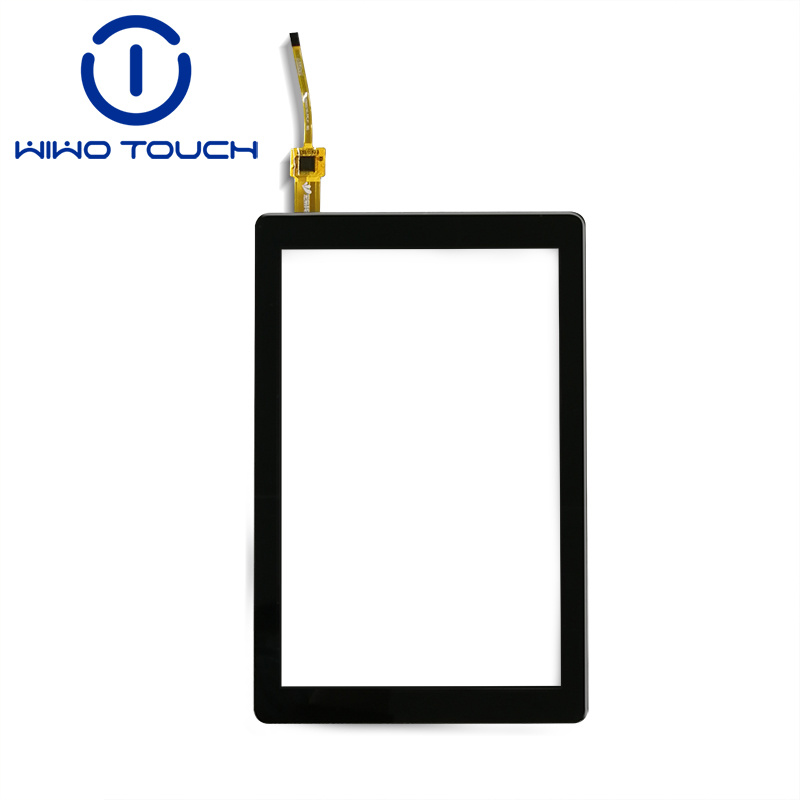

8 inch waterproof touch display panel

Product name	8 Inch projected capacitive touch screen
Brand Name	WIWOTOUCH
Touch type	Multi touch(can be customized)
Application	Smart control, Medical device, Industrial control, etc
Material	TBD (As you need)
Interface type	IIC
Color	Black
Structure	Glass Lens+ITO sensor+FPC
Cover Glass Dimension	275.5±0.2*145.5±0.2 mm
Cover Lens VA	173.02±0.2*108.44±0.2 mm
Cover Lens Thickness	1.1 mm
Glass sensor Thickness	0.55 mm
SCA	0.2 mm
Total Thickness	1.85±0.1 mm
LCD resolution	TBD(As you need)
IC Model	GT911
FPC	TBD(As you need)
Transmittance	≥85%
Surface Hardness	6 H
Operating Environment	-20℃~+70℃,≤90%RH
Storage Environment	-30℃~+80℃,≤90%RH
Operating Voltage	2.8 V-3.3 V
Interface Voltage	2.8 V-3.3 V
Surface treatment	As you need
General Tolerance	±0.2mm
Available operating systems	Android/Linux/Windows/Raspberry PI
Certificates	RoHS/Reach/ISO9001
Sample delivery	15 working days
Mass production delivery	2-4 weeks, according to customer requirements, the delivery time is slightly changed
Guarantee period	12 months
Packing	Plastic tray or antistatic bag or foam box or vacuum bag + carton

Product Description:

Waterproof Rating:
IP67: This touch panel has an IP67 protection rating, ensuring it is completely dustproof and can withstand immersion in water up to 1 meter deep for 30 minutes. This makes it ideal for outdoor and humid environments.
Touch Technology:
Capacitive Touch: Utilizes capacitive touch technology, supporting multi-touch for higher responsiveness and touch accuracy. Suitable for applications requiring precise multi-touch operations.
Responsive Operation: Designed for finger touch with fast response and smooth operation.
Durability:
Rugged Design: Built to withstand harsh conditions, including impact, vibration, and extreme temperatures, ensuring long-term reliable operation in industrial environments.
Temperature Resistance: Capable of operating within a wide temperature range to suit various working environments.
Interface and Compatibility:
Multiple Interfaces: Equipped with standard touch panel interfaces such as USB and I2C, ensuring compatibility with various motherboards and systems.
Driver Support: Compatible with major operating systems like Windows, Android, and Linux, with available drivers for easy integration.
Size and Installation:
Standard Size: 8-inch panel suitable for medium to small-sized display front-end applications.
Easy Installation: Offers multiple installation methods such as adhesive mounting and embedded installation, accommodating different devices and application needs.
Typical Applications:
Industrial Control: Used in industrial control panels and equipment for reliable touch operations.
Outdoor Equipment: Ideal for information kiosks and self-service terminals that require waterproof and environmental protection.
Medical Devices: Ensures precise operation and protection in medical equipment.
Automotive Systems: Suitable for in-vehicle infotainment systems, providing high sensitivity and reliable touch experience.

Product Advantages:

High Protection Level: The IP67 rating ensures reliability in harsh environments.
High Sensitivity Touch: Capacitive touch technology offers a smooth user experience.
Multi-System Compatibility: Broad operating system support and interface compatibility for easy integration and use.

This 8-inch waterproof touch panel, with its high protection level and excellent touch performance, is suitable for a variety of applications that require precise touch control and environmental protection. If there are specific requirements or usage scenarios, further customized recommendations and guidance can be provided.
