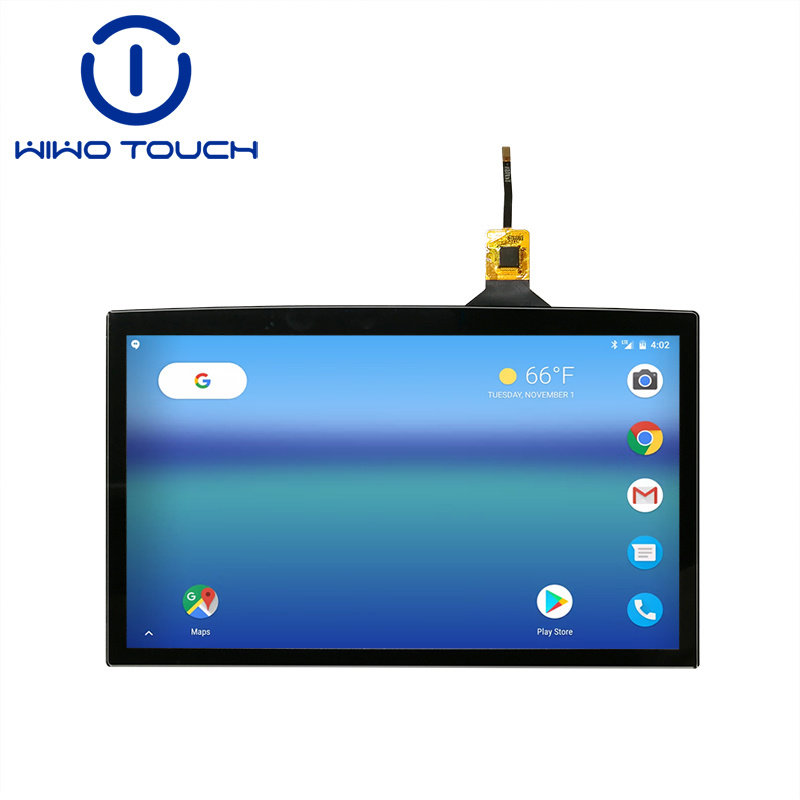

10.1 inch multi touch capacitive touch panel for smart home

Category:

1.Model number: CLS101GG153-V2.0 2.Application: Industrial control, Medical, Smart control, etc 3.Structure: Cover lens+ITO Glass+FPC 4.Touch type: Multi touch 5.Certificates: RoHS, Reach, ISO9001

Description

As a leading B2B supplier of industrial capacitive touch screens, WIWOTOUCH has launched the 10.1-inch capacitive touch screen model CLS101GG153-V2.0. It adopts a three-layer structure of Cover Lens + ITO Glass + FPC and supports 5-10 point multi-touch. It is specifically designed for industrial control, medical equipment, smart terminals and other scenarios, providing batch purchasing and customized solutions. The product has passed RoHS/Reach/ISO9001 certifications, is compatible with Android/Linux/Windows systems, supports USB plug-and-play interface, and meets the stable operation requirements in harsh environments.

Product Feature

High-strength material: Utilizes AGC/Corning tempered glass, with a surface hardness of >6H. It is scratch-resistant and shock-resistant, meeting IP65 protection level (optional waterproof coating).
Wide temperature operating capability: Stable operation within the temperature range of -20℃ to 70℃ and in an environment with a humidity of ≤90%. Suitable for harsh environments.
Long lifespan design: Capacitive sensing technology supports ≥10 million touch operations, suitable for industrial automation scenarios requiring 24-hour continuous operation.
High light transmittance and wide viewing angle: Light transmittance ≥83%, combined with a wide viewing angle design, maintains clear display even under direct sunlight.

Product Parameter:

Product name	10.1 Inch Capacitive touch panel
Brand Name	WIWOTOUCH
Touch type	PCAP 5-10 points touch
Material	PMMA
Application	Industrial control, Self-service touch table, Smart control etc
Interface type	USB
Structure	Glass Lens+ITO Glass+FPC
Cover Glass Dimension	240.4±0.2*146.7±0.2 mm
Cover Lens VA	223.72±0.2*126.08±0.2 mm
Cover Lens Thickness	0.7 mm
ITO Glass Thickness	0.7mm
Total Thickness	1.75±0.2 mm
LCD resolution	TBD(As you need)
IC Model	FT5526
FPC	6PIN
Transmittance	≥83%
Surface Hardness	＞6H
Operating Environment	-20℃~+70℃,≤90% RH
Storage Environment	-30℃~+80℃,≤90% RH
Operating Voltage	2.8 V-3.3 V
Interface Voltage	2.8 V-3.3 V
Surface treatment	AR(Anti-reflective); AF(Anti-fingerprint); AG(Anti-glare); waterproof
General Tolerance	±0.2mm
Available operating systems	Android/Linux/Windows
Certificates	RoHS/Reach/ISO9001
Sample delivery	15 working days
Mass production delivery	2-4 weeks, according to customer requirements, the delivery time is slightly changed
Guarantee period	12 months
Packing	Plastic tray or antistatic bag or foam box or vacuum bag + carton

Product Application

Application scenarios: Covering diverse B-end requirements
Industrial automation equipment: PLC control cabinets, robot operation interfaces, intelligent production line touch panels, with anti-oil-stain AF coating
Medical instruments: Touch screens for surgical equipment, hospital self-service terminals, monitor control panels, optional antibacterial AF coating
Smart buildings and building central control: Compatible with smart home control centers, industrial-grade self-service terminals
Marine & outdoor equipment: Anti-salt spray corrosion treatment (optional), meeting requirements for ship control consoles, outdoor advertising machines, etc.
