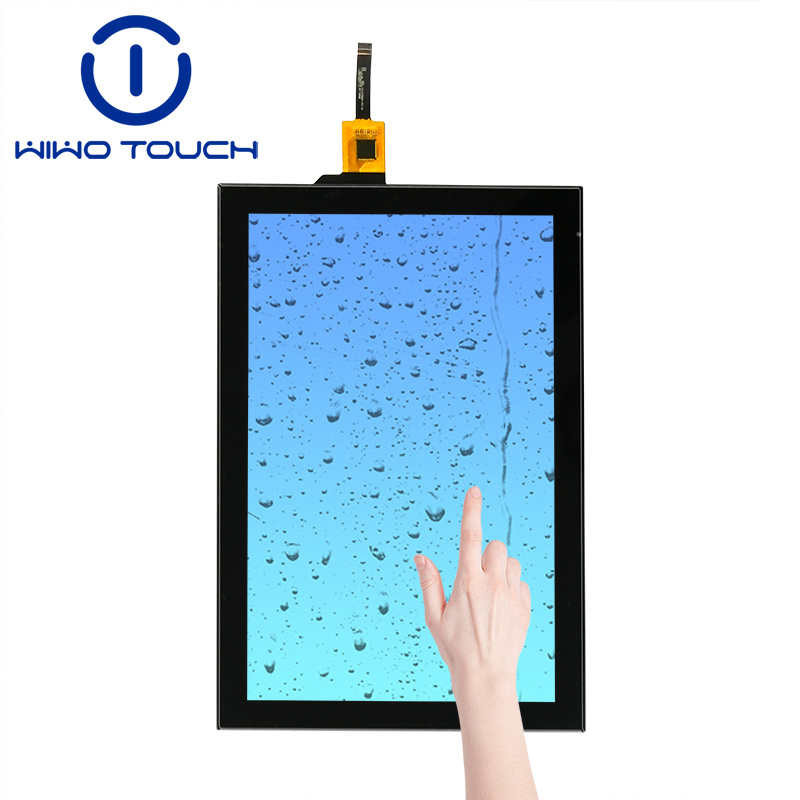

10.1 inch touch screen for smart home control panels

Category:

1.Model number: CMF101GG005-V3.0 2.Application: Industrial control, Medical, Smart control, etc 3.Structure: Cover lens+ITO Glass+FPC 4.Touch type: Multi touch 5.Certificates: RoHS, Reach, ISO9001

Description

Product Feature

1. High compatibility integrated design

Plug-and-play architecture: Adopting a Glass Lens + ITO Sensor + FPC three-layer structure, supporting IIC/USB dual interfaces, easily embedded in industrial PLC control cabinets, medical monitoring devices, intelligent building central control systems and other equipment.
Environmental adaptability: Working temperature: -20℃ to 70℃, humidity ≤ 85% RH, storage temperature: -30℃ to 80℃, suitable for harsh industrial environments such as high temperature and high humidity.

2. Customized service system

Size and appearance: Covering the standard size of 243.1 ± 0.2 * 162.18 ± 0.2 mm, supporting CNC irregular cutting and frame color customization (black / silver are available) Surface treatment:
Basic protection: 7H hardness glass, with excellent scratch resistance
Advanced features: Anti-fingerprint (AF), anti-glare (AG), anti-reflection (AR) coatings are available for selection, enhancing outdoor visibility and operational experience
Certification support: International certification documents such as RoHS and Reach can be provided.

3. Precise multi-touch control

Ten-point touch technology: Equipped with GT9271 main control chip, supporting gesture operations (zoom / rotation / sliding), response time ≤ 10ms
Optical performance: Transmittance ≥ 85%, presenting clear and detailed industrial-grade display effect.

Product Parameter:

Product name	10 Inch Capacitive touch panel
Brand Name	WIWOTOUCH
Touch type	Multi touch
Application	Industrial control, Smart control, Car DVD etc
Interface type	IIC/USB
Structure	Glass Lens+ITO Sensor+FPC
Cover Glass Dimension	243.1±0.2*162.18±0.2 mm
Cover Lens VA	216.58*135.36 mm
Cover Lens Thickness	1.8 mm
ITO Glass Thickness	0.55 mm
Total Thickness	2.5±0.15 mm
LCD resolution	TBD(As you need)
IC Model	GT9271
FPC	10 PIN
Transmittance	≥85%
Surface Hardness	7H
Operating Environment	-20℃~+70℃,≤85% RH
Storage Environment	-30℃~+80℃,≤85% RH
Operating Voltage	2.8 V-3.3 V
Interface Voltage	2.8 V-3.3 V
Surface treatment	AF(Anti-fingerprint)
General Tolerance	±0.2mm
Available operating systems	Android/Linux/Windows
Certificates	RoHS/Reach/ISO9001
Sample delivery	15 working days
Mass production delivery	2-4 weeks, according to customer requirements, the delivery time is slightly changed
Guarantee period	12 months
Packing	Plastic tray or antistatic bag or foam box or vacuum bag + carton

Application Scenarios

Industrial Automation Equipment
Medical Instruments
Smart Home
Commercial Displays
Information Kiosks
