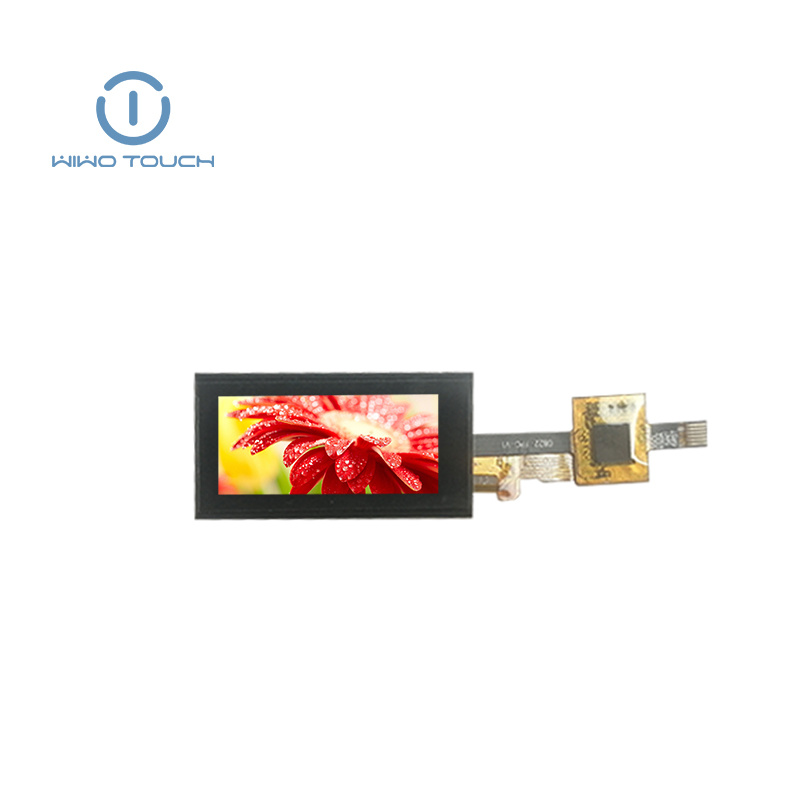

0.96-Inch OLED Touch Screen: Precision Touch and Brilliant Display

Category:

1.Model number: CIGE096GG0822-V2.0 2.Application: Industrial control, Smart watch, etc 3.Structure: Cover lens+ITO Glass+FPC 4.Touch type: PCAP 5-10 points touch

Description

0.96-Inch OLED Touch Screen: Precision Touch and Brilliant Display

Discover the perfect blend of touch sensitivity and display brilliance with our 0.96-inch capacitive touch screen featuring an advanced OLED display. This compact screen offers an ultra-sensitive touch experience, detecting even the lightest touch with precision. Effortlessly swipe, tap, and pinch with quick and accurate responses, making it ideal for smartwatches, health monitors, and other portable devices.

The OLED display sets this touch screen apart with its high brightness, exceptional contrast, and vibrant colors. Every detail, from fine text to vivid images, appears sharp and lifelike, ensuring clear visibility in various lighting conditions. The combination of touch sensitivity and stunning visual quality enhances user interaction, providing a seamless and engaging experience.

Supporting multi-touch gestures, the screen makes navigation intuitive and fluid. Scroll through menus, zoom in on images, and navigate apps with ease, thanks to the responsive and precise touch technology. Durability is also a key feature, as the touch screen maintains its high sensitivity and accuracy even after prolonged use, ensuring reliable performance over time.

Its compact 0.96-inch size makes it versatile for various innovative applications, offering an exceptional touch and display experience that elevates your product's functionality and user satisfaction.

Touch Panel
Product name	0.96 Inch Capacitive touch panel
Brand Name	WIWOTOUCH
Touch type	PCAP 5-10 points touch
Application	Industrial control, Medical device, Smart control etc
Interface type	IIC/USB
Structure	Glass Lens+ITO Glass+FPC
Cover Glass Dimension	36.8±0.05*20.6±0.05 mm
Cover Lens VA	22.3±0.15*11.4±0.15 mm
ITO Sensor Dimension	28.2±0.15*15.82±0.15 mm
Cover Lens Thickness	1.1 mm
ITO Glass Thickness	0.55 mm
Total Thickness	2.23±0.1 mm
IC Model	FT6336G
FPC	6 PIN
Transmittance	≥83%
Surface Hardness	6H
Operating Environment	-20℃~+70℃,≤90% RH
Storage Environment	-30℃~+80℃,≤90% RH
Operating Voltage	2.8 V-3.3 V
Interface Voltage	1.8 V
Certificates	RoHS/Reach/ISO9001
Surface treatment	AR(Anti-reflective); AF(Anti-fingerprint); AG(Anti-glare); waterproof
General Tolerance	±0.2mm
LCD display
Display Mode	Normally Back
View Angle	ALL O'clock
LCD Thickness	1.45±0.05 mm
Resolution	80*160
IC Model	ST7735S
Operating Temperature	-10℃~60℃
Storage Temperature	-20℃~70℃
FPC	6 PIN
Available operating systems	Android/Linux/Windows
Sample delivery	15 working days
Mass production delivery	2-4 weeks, according to customer requirements, the delivery time is slightly changed
Guarantee period	12 months
Packing	Plastic tray or antistatic bag or foam box or vacuum bag + carton
