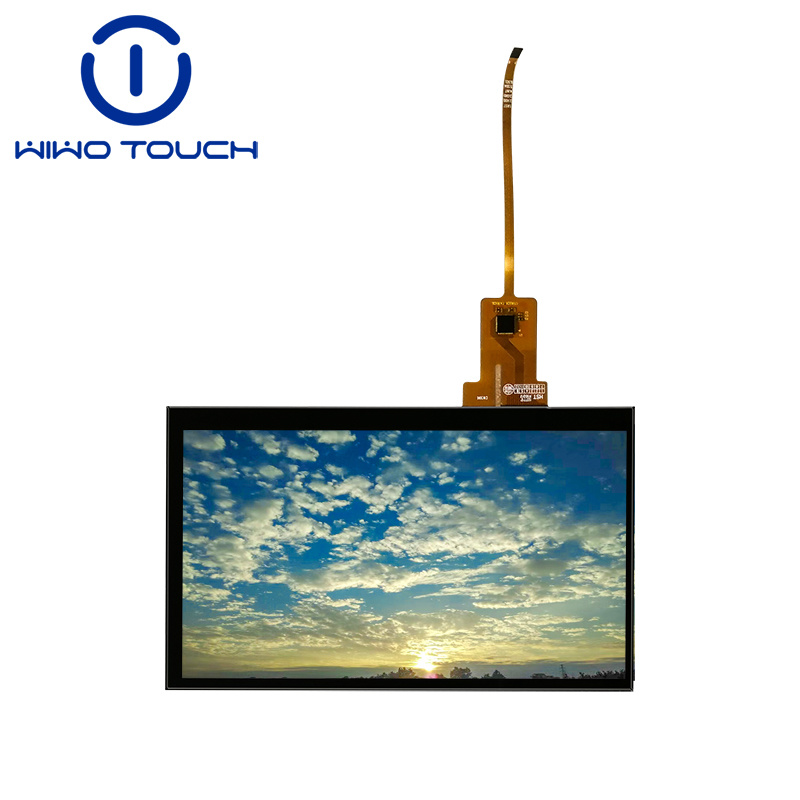

7 Inch Capacitive Touch Panel Solutions

Category:

1.Model number: CHL070GG0396-V1.0 2.Application: Automotive, Medical device, Kiosk, etc 3.Structure: Glass Lens + ITO glass sensor+FPC 4.Touch type: Multi touch(can be customized) 5. Certificates: Reach, RoHS, ISO9001

Description

Product Overview

This 7-inch capacitive touch panel is specially designed for portable devices. It employs high-sensitivity capacitive touch technology and features fast response, precise touch control, and multi-touch capabilities. The product is lightweight and durable, suitable for various scenarios such as industrial handheld terminals, smart home control panels, medical equipment, and more.

Core advantages of the product

1.Outstanding touch performance

Multi-touch: Supports 10-point touch, accurately recognizing gesture operations (such as zooming, sliding, rotating).

High sensitivity: Response time ≤ 5ms, touch accuracy reaches ±1mm, no delay, no drift.

Anti-interference design: Effectively shield electromagnetic interference (EMI), adaptable to complex environments.

2.Durability and protection

Surface hardness: The cover plate is made of tempered glass, with a hardness of 7H, providing excellent scratch resistance and durability.

Protection level: Optional IP65/IP67 protection (dust and waterproof), suitable for industrial and outdoor environments.

Wide temperature operation: Supports a working temperature range of -20°C to 70°C, with strong stability.

3.Excellent optical performance

High light transmittance: Light transmittance ≥ 90%, the picture is clear and vivid, and it supports full alignment process (optional).

Anti-glare treatment: Optional AG (anti-glare) or AF (anti-fingerprint) coating to enhance visibility in strong light conditions.

Product Parameter:

Product name	7 Inch Capacitive touch panel
Brand Name	WIWOTOUCH
Touch type	Multi touch(can be customized)
Application	Smart control, Automotive, Industrial control, etc
Interface Type	IIC
Structure	Glass Lens+ ITO Glass+FPC
Cover Glass Dimension	164.5±0.2*99.5±0.2 mm
Cover Lens VA	155.5±0.2*86.60±0.2mm
Cover Lens Thickness	0.55mm
ITO Glass Thickness	0.7mm
Total Thickness	1.45±0.1 mm
General Tolerance	±0.2 mm
LCD Resolution	TBD(As you need)
IC Model	GT911
Transmittance	≥85%
Surface Hardness	6H
Operating Environment	-20℃~+70℃,≤90% RH
Operating Environment	-30℃~+80℃,≤90% RH
Operating Voltage	2.8 V-3.3 V
Interface Voltage	2.8 V-3.3 V
Surface treatment	As your need.
General Tolerance	AR(Anti-reflective); AF(Anti-fingerprint); AG(Anti-glare); waterproof
Available operating systems	Android/Linux/Windows/Raspberry PI
Certificates	RoHS/Reach/ISO9001
Sample delivery	15 working days
Mass production delivery	2-4 weeks, according to customer requirements, the delivery time is slightly changed
Guarantee period	12 months
Packing	Plastic tray or antistatic bag or foam box or vacuum bag + carton

After-sales service and customized support

Sample support: Provide sample testing.
Customized service: Offers personalized customization options such as size, interface, protection level, and logo printing.
Warranty period: 12 months of quality guarantee, including technical consultation and after-sales response.
