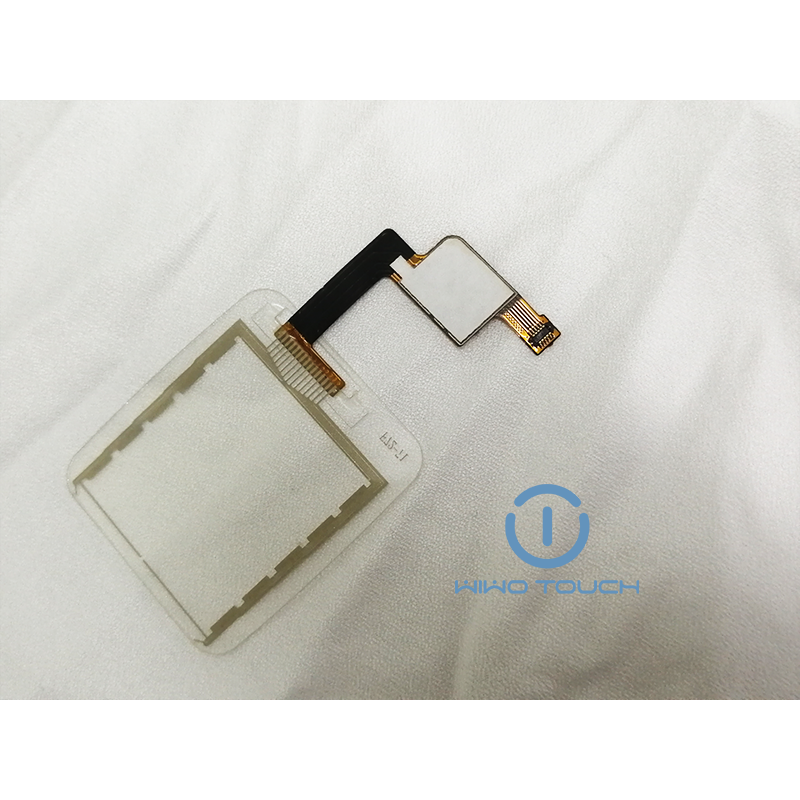

1.3 inch Capacitive Touch Panel

Category:

1.Model number: CHX013GF72-V1.0 2.Application: Smartwatch, Small portable device, etc 3.Structure: Glass lens+Film sensor+FPC 4.Touch type: single touch

Description

Product Feature

Glass covering design

The glass cover plate is made of high-strength glass material, which can effectively resist scratches and wear, thereby extending the product's service life. This glass covering layer also supports various coating treatments, such as anti-glare (AG), anti-reflective (AR), and anti-fingerprint (AF) coatings, ensuring optimal visibility and performance even in outdoor or strong light environments.

Durability

This touchscreen is made of tempered glass, which has excellent scratch resistance and wear resistance. Its surface hardness is ≥ 6H, ensuring a long service life even during daily use.

Waterproof and dustproof performance

According to specific requirements, the touchscreen can also be equipped with waterproof and dustproof functions, enabling stable operation in humid or dusty environments. It is highly suitable for outdoor or professional industrial settings.

Product Parameter:

Product name	1.3 Inch Capacitive touch panel
Brand Name	WIWOTOUCH
Touch type	single touch
Application	Industrial control, Wearable device, Handheld device etc
Interface type	IIC/USB
Structure	Glass Lens+Film Sensor+FPC
Cover Glass Dimension	33.8±0.1*37.8±0.1 mm
Film Sensor Dimension	33.4±0.2*37.4±0.2 mm
Cover Lens VA	23.9±0.15*23.9±0.15 mm
Cover Lens Thickness	0.95 mm
ITO Glass Thickness	0.25 mm
Total Thickness	1.2±0.2 mm
LCD resolution	TBD(As you need)
IC Model	FT6336G
FPC	10 PIN
Transmittance	≥82%
Surface Hardness	6H
Operating Environment	-20℃~+70℃,≤90% RH
Storage Environment	-30℃~+80℃,≤90% RH
Operating Voltage	2.8 V-3.3 V
Interface Voltage	2.8 V-3.3 V
Surface treatment	AR(Anti-reflective); AF(Anti-fingerprint); AG(Anti-glare); waterproof
General Tolerance	±0.2mm
Available operating systems	Android/Linux/Windows
Certificates	RoHS/Reach/ISO9001
Sample delivery	15 working days
Mass production delivery	2-4 weeks, according to customer requirements, the delivery time is slightly changed
Guarantee period	12 months
Packing	Plastic tray or antistatic bag or foam box or vacuum bag + carton

Customized Service

Support custom size, bezel design and touch screen surface treatment to meet different customer needs.

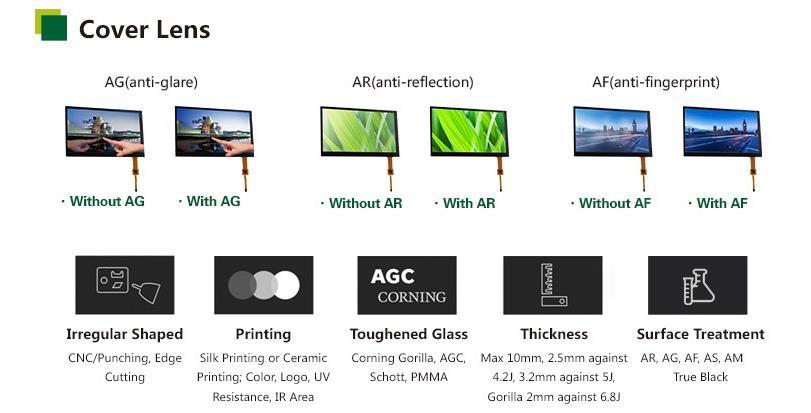

Optional surface treatments such as anti-fingerprint, anti-glare, anti-reflection, and waterproof can significantly improve the readability, clarity, touch experience, and service life of capacitive touch screens.
Optional special coatings, such as anti-fingerprint and anti-bacterial finishes, enhance the user experience and product hygiene.
Frame design can be customized according to customer requirements, easy to integrate into a variety of equipment to meet different product appearance and functional needs, optional thickness and frame color enhance product flexibility and adaptability.
