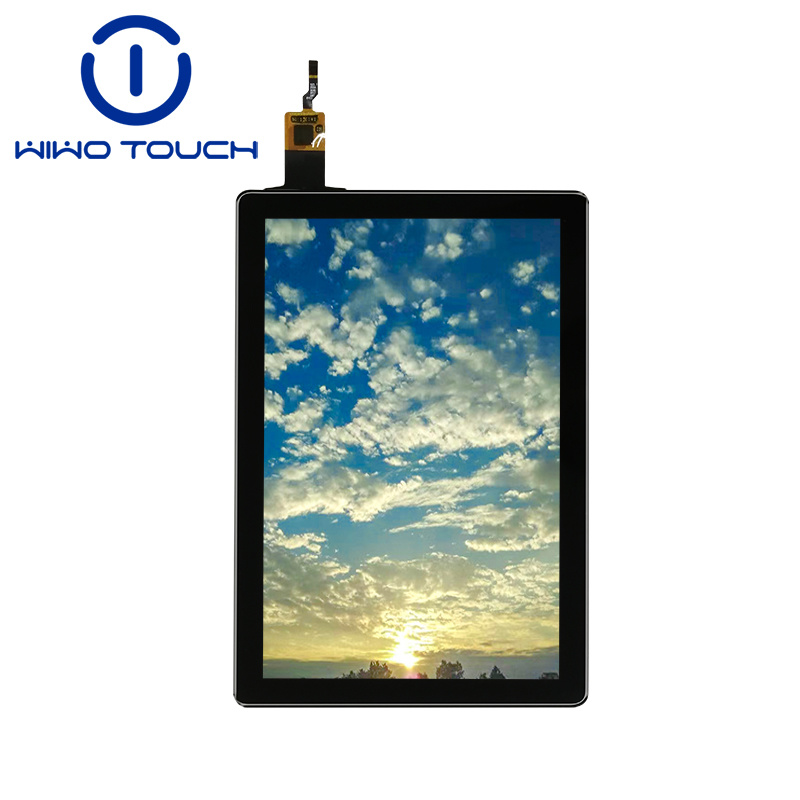

8 Inch capacitive touch panel for industrial

Category:

1.Model number: CHX080GG167-V1.0 2.Application: POS systems,industrial,Interactive game console, etc 3.Structure: Cover lens+ITO Glass+FPC 4.Touch type: multi touch

Description

Product Feture

High transparency glass: The screen uses high transparency glass material to ensure high definition and vivid image display, with excellent color reproduction.
Anti-reflection and anti-glare: The special coating treatment effectively reduces reflection and glare, enabling clear viewing even under bright light conditions and enhancing the user experience.
Scratch and wear resistance: The surface of the screen has been strengthened and has excellent scratch and wear resistance, which can maintain the original appearance even if it is used for a long time.
Shock resistance: The robust screen construction provides excellent shock resistance and can withstand unexpected impacts and vibrations, ensuring the reliability of the device.
With excellent compatibility: It can be easily integrated into different systems and devices, whether Windows, Android or Linux systems, ensuring seamless connectivity.

Product Parameter:

Product name	8 Inch Capacitive touch panel
Brand Name	WIWOTOUCH
Touch type	PCAP 5-10 points touch
Material	Sodalime, Chemical Reinforcement
Application	Industrial control, Medical device, POS system etc
Interface type	IIC/USB
Structure	Glass Lens+ITO Glass+FPC
Cover Glass Dimension	195.73±0.1*131.14±0.1 mm
Cover Lens VA	173.23±0.2*108.64±0.2 mm
Cover Lens Thickness	0.7 mm
ITO Glass Thickness	0.55 mm
Total Thickness	1.45±0.1 mm
LCD resolution	TBD(As you need)
IC Model	GT911
FPC	6 PIN
Transmittance	≥85%
Surface Hardness	6H
Operating Environment	-20℃~+70℃,≤90% RH
Storage Environment	-30℃~+80℃,≤90% RH
Operating Voltage	2.8 V-3.3 V
Interface Voltage	2.8 V-3.3 V
Surface treatment	AR(Anti-reflective); AF(Anti-fingerprint); AG(Anti-glare); waterproof
General Tolerance	±0.2mm
Available operating systems	Android/Linux/Windows
Certificates	RoHS/Reach/ISO9001
Sample delivery	15 working days
Mass production delivery	2-4 weeks, according to customer requirements, the delivery time is slightly changed
Guarantee period	12 months
Packing	Plastic tray or antistatic bag or foam box or vacuum bag + carton

Application Scenarios

Industrial Automation Equipment: In industrial environments, this touch screen panel can withstand harsh operating conditions, delivering stable performance and reliable operation.
Medical Instruments: Its high precision and reliability make it an ideal choice for medical devices, aiding healthcare professionals in performing precise operations.
Smart Home Control Systems: In smart home applications, this touch screen panel offers an intuitive and convenient user interface, making home control smarter and simpler.
Consumer Electronics: Applicable in tablets, smart home controllers, and other portable devices, providing an intuitive user interface.
