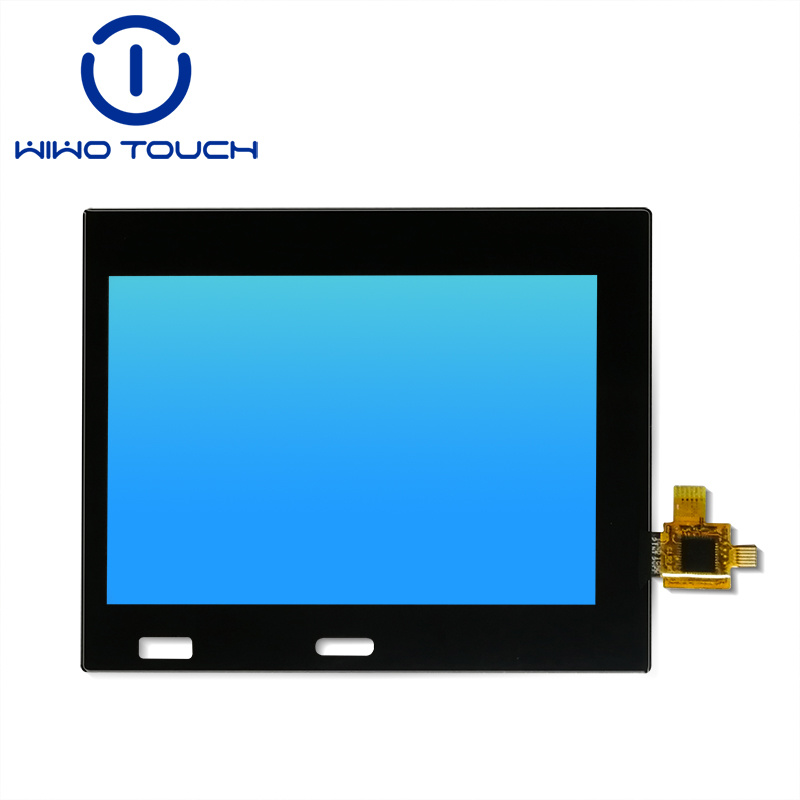

3.5 inch capacitive touch panel for control panel

Category:

1.Model number: CJM035PF175-V1.0 2.Application: Industrial control, Medical, Coffee machine, etc 3.Structure: Cover lens+ Film+FPC 4.Touch type: Single touch 5.Certificates: RoHS, Reach, ISO9001

Description

Features And Advantages:

🧠Multi-touch

The 3.5-inch capacitive touch screen panel supports PCAP 5-10 point capacitive touch and complex gesture recognition.
🔍High-definition display and high light transmittance:

The light transmittance of this 3.5-inch capacitive screen is ≥ 86%, reducing backlight requirements, saving energy and being more durable.
🛡️High-strength and durable structure:

Glass Lens + Film + FPC, the total thickness of the 3.5-inch capacitive touch panel is only 1.75mm.

Surface hardness > 6H. The surface is scratch-resistant, impact-resistant, and suitable for harsh industrial environments.
🌟Multiple surface treatment processes:

AR (anti-reflection), AF (anti-fingerprint), AG (anti-glare), waterproof treatment.
⚙️ Strong system and interface compatibility
Interface type: USB / FPC 6PIN,
Supported operating systems: Android / Linux / Windows,
Equipped with a high-stability IC solution (FT6336G), facilitating quick integration and deployment.

Product Parameter:

The 3.5-inch capacitive touch sensor panel, with its advanced surface treatments and excellent touch performance, is an ideal choice for applications that demand high standards of touch accuracy, visibility, and cleanliness.

Product name	3.5 Inch Capacitive touch panel
Brand Name	WIWOTOUCH
Touch type	PCAP 5-10 points touch
Material	PMMA
Application	Industrial control, Self-service touch table, Smart control etc
Interface type	USB
Structure	Glass Lens+Film+FPC
Cover Glass Dimension	87±0.2*70.7±0.2 mm
Cover Lens VA	81.24±0.2*55.4±0.2 mm
Cover Lens Thickness	1 mm
ITO Glass Thickness	0.25 mm
Total Thickness	1.75±0.2 mm
LCD resolution	TBD(As you need)
IC Model	FT6336G
FPC	6PIN
Transmittance	≥86%
Surface Hardness	＞6H
Operating Environment	-10℃~+60℃,≤90% RH
Storage Environment	-20℃~+70℃,≤90% RH
Operating Voltage	2.8 V-3.3 V
Interface Voltage	2.8 V-3.3 V
Surface treatment	AR(Anti-reflective); AF(Anti-fingerprint); AG(Anti-glare); waterproof
General Tolerance	±0.2mm
Available operating systems	Android/Linux/Windows
Certificates	RoHS/Reach/ISO9001
Sample delivery	15 working days
Mass production delivery	2-4 weeks, according to customer requirements, the delivery time is slightly changed
Guarantee period	12 months
Packing	Plastic tray or antistatic bag or foam box or vacuum bag + carton

Product Appliaction:

Industrial Automation Equipment
Medical Instruments
Smart Home
