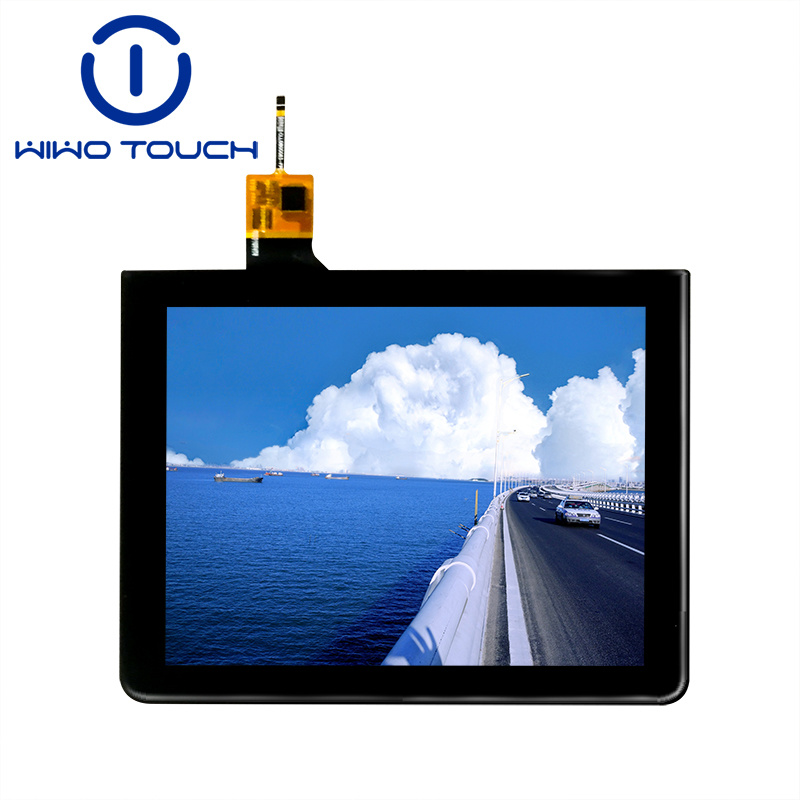

8-inch multi-touch capacitive panel for industrial equipment.

Category:

1.Model number: CWD080GG0705-V2.0 2.Application: Smart control, Medical device, Industrial control, etc 3.Structure: Glass Lens + ITO Glass+FPC 4.Touch type: Multi touch(can be customized) 5. Certificates: Reach, RoHS, ISO9001

Description

Product Features

1. Touch Type

This touch screen supports multi - touch functionality, which can also be customized according to your specific requirements. The multi - touch feature enables seamless and intuitive interaction, enhancing user experience in applications where quick and accurate input is crucial.

2.Material

Sodalime and Chemical Reinforcement: The use of sodalime glass, combined with chemical reinforcement technology, gives the touch screen excellent strength and scratch resistance. This ensures a long - lasting product that can endure frequent use and potential impacts in different applications.

Interface Type: Equipped with an IIC interface, it offers a reliable and efficient communication connection. The IIC interface is widely used in various electronic systems, facilitating seamless integration with other components and ensuring smooth data transfer.

3.Structure

Composed of a Glass Lens + ITO Glass + FPC structure. The glass lens provides protection to the inner components, while the ITO (Indium Tin Oxide) glass is crucial for the touch - sensing function, offering high transparency and conductivity. The FPC (Flexible Printed Circuit) ensures reliable electrical connection and flexibility in installation.

Product Parameter

Product name	8 Inch projected capacitive touch screen
Brand Name	WIWOTOUCH
Touch type	Multi touch(can be customized)
Application	Smart control, Medical device, Industrial control, etc
Material	Sodalime, Chemical Reinforcement
Interface type	IIC
Color	Black
Structure	Glass Lens+ITO Glass+FPC
Cover Glass Dimension	196±0.1*150.4±0.1 mm
Cover Lens VA	163.05*122.54 mm
Cover Lens Thickness	0.7±0.05 mm
SCA	0.2 mm
ITO GLASS Thickness	0.55±0.05 mm
Total Thickness	1.45±0.1 mm
LCD resolution	800*600
IC Model	GT9271
FPC	6 PIN
Transmittance	≥85%
Surface Hardness	6H
Operating Environment	-20℃~+70℃,≤85% RH
Storage Environment	-30℃~+80℃,≤85% RH
Operating Voltage	2.8 V-3.3 V
Interface Voltage	2.8 V-3.3 V
Surface treatment	As your need.
General Tolerance	±0.2mm
Available operating systems	Android/Linux/Windows/Raspberry PI
Certificates	RoHS/Reach/ISO9001
Sample delivery	15 working days
Mass production delivery	2-4 weeks, according to customer requirements, the delivery time is slightly changed
Guarantee period	12 months
Packing	Plastic tray or antistatic bag or foam box or vacuum bag + carton

Customized Service

We offer customized solutions which are according to customer requirements.

Our touch screens mag be produced in a selected shape ,color , size of cover glass , touch IC ,thickness , packing,corner with logo and other additional element as per specification provided by the client.
Treament customizion: Anti-glare, Anti-fingreprint , Anti-reflective , Anti-UV , Antibacteral ,Waterproof, Vandal-proof , 3D curve sueface
IC: Atmel , ILITEK ,EETI , CYPRESS , etc.
