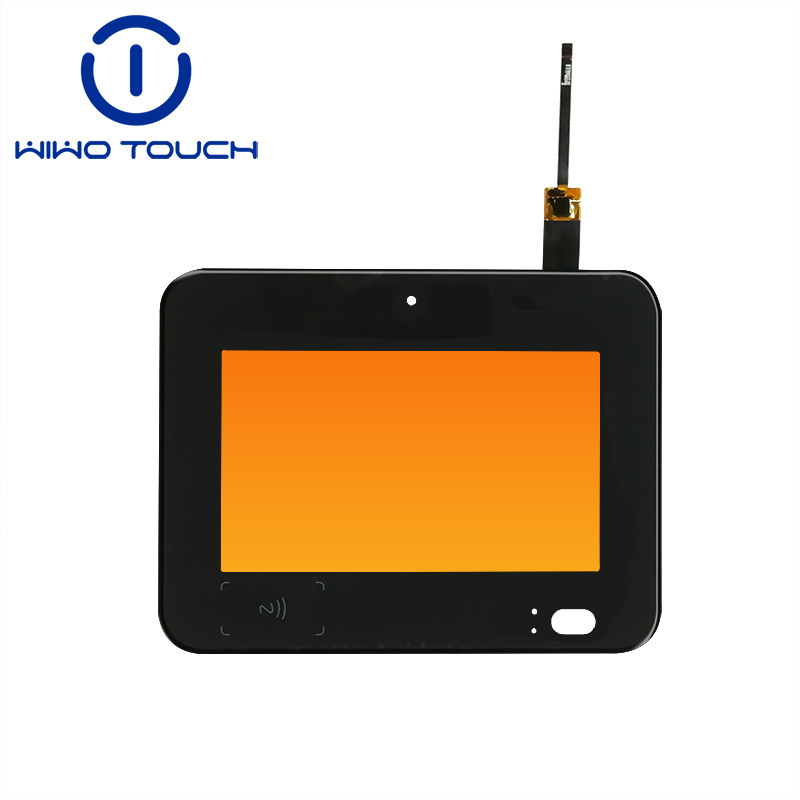

7 Inch Projected Capacitive Touch Screen

Category:

1.Model number:CYH070GG122 2.Certificates: RoHS, Reach, ISO9001 3.Structure:Glass lens+ITO Glass+FPC 4.Touch type:10 points PCAP touch screen 5.Introduction:CYH070GG112 is a standard 7 inch capacitive touch panel, using FT6436 chip, IIC control, suitable for customers to conduct preliminary testing. It operates at a temperature of -20℃~+70℃ and works well both outdoors and indoors.

Description

Product Feature

1. Advanced Touch Technology - 10-Point PCAP Touch
The touch type of our product is Projective Capacitive Touch, featuring a 10-point touch function. This advanced technology enables a smooth, precise and multi-touch interaction experience. The 10-point touch function allows for seamless operation, whether it's complex data input, intuitive menu navigation or precise control based on gestures.

2.Robust Structure - Glass Lens + ITO Glass + FPC
The structure of our touch screen consists of a Glass Lens, ITO Glass, and FPC. The Glass Lens with a thickness of 1.1 mm provides protection against scratches and external impacts. The ITO (Indium Tin Oxide) Glass, with a thickness of 0.55 mm, is crucial for the touch - sensing functionality, offering high transparency and excellent electrical conductivity. The FPC (Flexible Printed Circuit) ensures reliable connection and signal transmission. The total thickness of 1.85±0.1 mm strikes a balance between compactness and durability, making it suitable for a wide range of applications with different space constraints.

3.High-quality IC model - FT6436
This touchscreen adopts the FT6436 IC model. This integrated circuit is designed to provide stable and precise touch sensing performance. It can quickly process touch inputs. For customers, using a reliable IC model like FT6436 means reducing the risk of faults related to touch.

Product Parameter

Product name	7 Inch Capacitive touch panel
Brand Name	WIWOTOUCH
Touch type	PCAP 10 points touch
Application	Industrial, Medical device, Smart control, etc
Interface type	IIC/USB
Structure	Glass Lens+ITO Glass+FPC
Cover Glass Dimension	199.54±0.1*136.7±0.1 mm
Cover Lens VA	155±0.15*87±0.15 mm
Cover Lens Thickness	1.1 mm
ITO Glass Thickness	0.55 mm
Total Thickness	1.85±0.1 mm
LCD resolution	TBD(As you need)
IC Model	FT6436
Transmittance	≥83%
Surface Hardness	6H
Operating Environment	-20℃~+70℃,≤90% RH
Storage Environment	-30℃~+80℃,≤90% RH
Operating Voltage	2.8 V-3.3 V
Interface Voltage	2.8 V-3.3 V
Surface treatment	AR(Anti-reflective); AF(Anti-fingerprint); AG(Anti-glare); waterproof
General Tolerance	±0.2mm
Available operating systems	Android/Linux/Windows
Certificates	RoHS/Reach/ISO9001
Sample delivery	15 working days
Mass production delivery	2-4 weeks, according to customer requirements, the delivery time is slightly changed
Guarantee period	12 months
Packing	Plastic tray or antistatic bag or foam box or vacuum bag + carton

Customized Service

We offer customized solutions which are according to customer requirements.

Our touch screens mag be produced in a selected shape ,color , size of cover glass , touch IC ,thickness , packing,corner with logo and other additional element as per specification provided by the client.
Treament customizion: Anti-glare, Anti-fingreprint , Anti-reflective , Anti-UV , Antibacteral ,Waterproof, Vandal-proof , 3D curve sueface
IC: Atmel , ILITEK ,EETI , CYPRESS , etc

Application

1.Industrial Applications
In industrial environments, our 7-inch touchscreen design is capable of withstanding harsh conditions. It can be integrated into industrial control panels, and its high-quality construction and reliable performance ensure stable operation even under high vibration, dust, or temperature fluctuations, thereby reducing downtime and maintenance costs for industrial enterprises.

2.Medical Equipment Applications
For the medical industry, the touchscreen complies with strict hygiene and performance standards. It can be used in medical monitoring devices, diagnostic equipment, and patient-facing interfaces.

3.Smart Control Applications
In smart control systems, such as smart home control centers or building management systems, the 7-inch touchscreen provides an intuitive way to control various functions.
