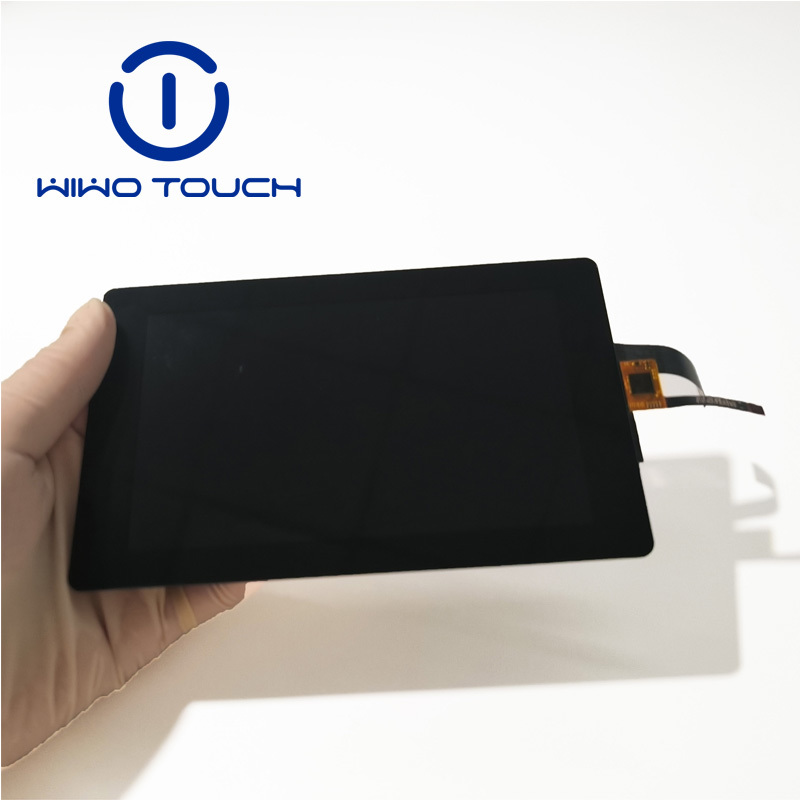

5.3 inch capacitive touch display

Category:

1. Model number of quality 5.3 inch touch screen: 147ACSR053GG 2. Structure: Glass Lens+ITO Glass+FPC 3. Touch type: Single-touch or Multi touch 4. Application: Smart control, Industrial, Intelligent robots, Handheld device, etc 5. Interface type: IIC control 6. Color: Black

Description

1.Precise Touch Control
This 5.3-inch touchscreen supports single-point or multi-point touch, and can accurately capture every operation command. Whether it's complex operations in an industrial environment or convenient interaction with handheld devices, it can handle them with ease, ensuring a smooth experience. Its high resolution can be customized according to your needs (LCD resolution: TBD As you need). Whether it's displaying complex data or presenting high-definition images, it can be clear and sharp, making the information immediately understandable.

2.Reliable and Durable
The product structure uses Glass Lens + ITO Glass + FPC to ensure a sturdy and durable screen. The Cover Lens is 0.7±0.1mm thick, with a surface hardness of 6H, effectively resisting daily scratches. Even in harsh industrial environments, it can maintain a good condition. The total thickness is 1.45±0.15mm, ensuring screen strength while also considering a slim design, making it easy for equipment integration.

3.Harsh environment, normal operation
The working temperature range is -20℃ to +70℃, and the storage temperature can reach -30℃ to +80℃. The humidity is between 45% to 90% RH, and it can operate normally. Whether it's a hot industrial workshop or a cold outdoor environment, it can operate stably and provide reliable interaction support for the equipment.

Product Parameter

Product name	5.3 inch touch screen with LCD
Brand Name	WIWOTOUCH
Touch type	Single touch or Multi touch
Application	Industrial, Handheld device, Smart control, and Intelligent robots, etc
Interface type	IIC
Structure	Glass Lens+ITO Glass+FPC
Cover Glass Dimension	144±0.2*89±0.2 mm
Cover Lens VA	116.74±0.2*70.08±0.2 mm
Cover Lens Thickness	0.7±0.1 mm
ITO Glass Thickness	0.55 mm
Total Thickness	1.45±0.15 mm
LCD resolution	TBD (As you need)
FPC	6 PIN
IC Model	FT5436
Transmittance	≥85%
Surface Hardness	6H
Operating Environment	-20℃~+70℃,≤45~90%RH
Storage Environment	-30℃~+80℃,≤45~90%RH
Operating Voltage	2.8 V-3.3 V
Interface Voltage	2.8 V-3.3 V
Surface treatment	AR(Anti-reflective); AF(Anti-fingerprint); AG(Anti-glare); waterproof
General Tolerance	±0.2mm
Available operating systems	Android/Linux/Windows
Certificates	RoHS/Reach/ISO9001
Sample delivery	15 working days
Mass production delivery	2-4 weeks, according to customer requirements, the delivery time is slightly changed
Guarantee period	12 months

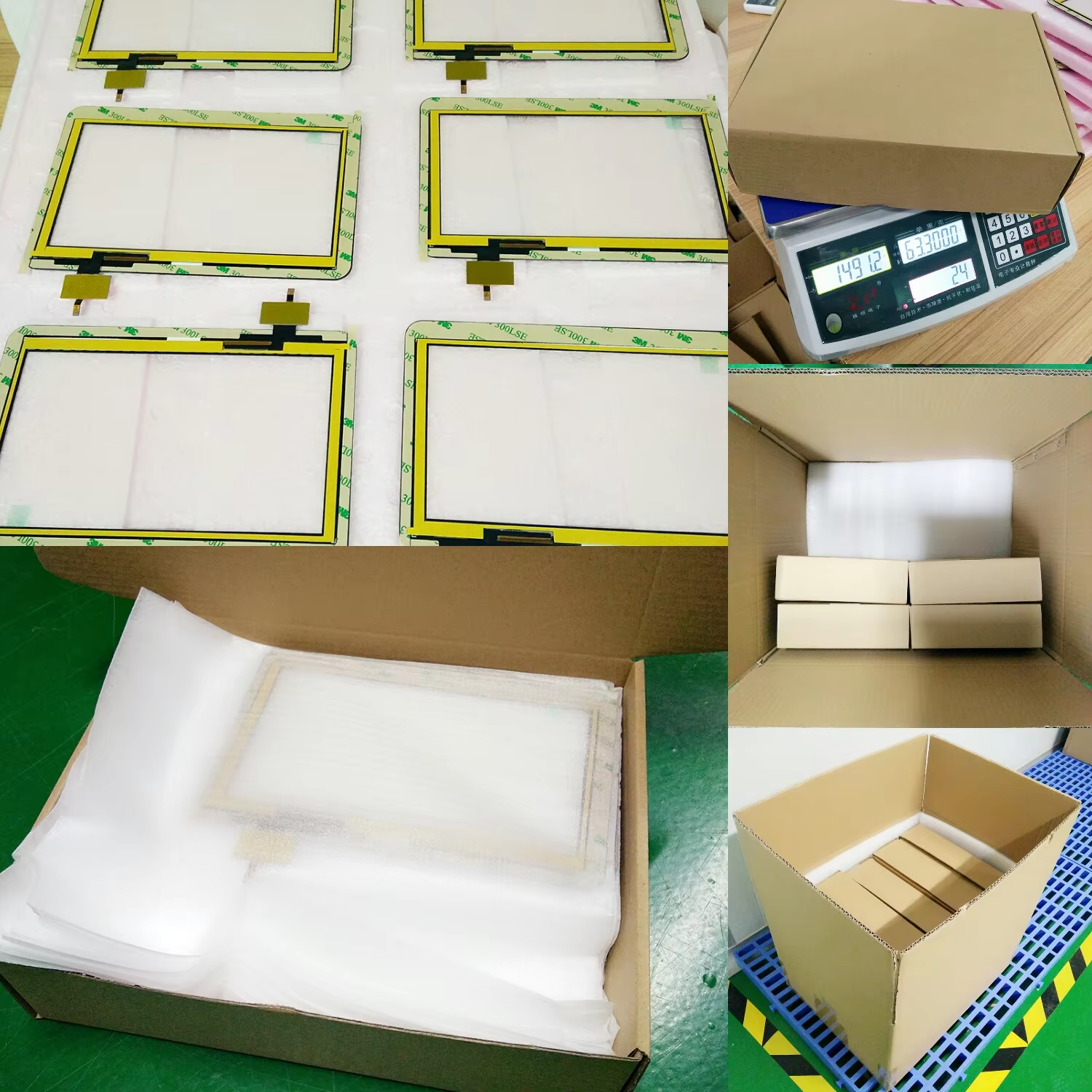

Packing	Plastic tray or antistatic bag or foam box or vacuum bag + carton

Procurement service

We are well aware of the demands and concerns of the buyers. Therefore, we offer a sample delivery service within 15 working days, allowing you to quickly assess whether the products meet your requirements. The production batch delivery time is 4-5 weeks, which can be adjusted appropriately according to customer requests. The products come with a 12-month warranty, ensuring your purchase is worry-free. The packaging is done using plastic pallets, anti-static bags, foam boxes or vacuum bags combined with paper boxes to ensure the products are safe and undamaged during transportation.

If you are looking for a 5.3-inch capacitive touchscreen with outstanding performance and reliable quality for your next project, IWOTOUCH's product is definitely your best choice. Contact our purchasing team immediately to obtain more product information and quotations, and embark on an efficient and intelligent purchasing journey.
