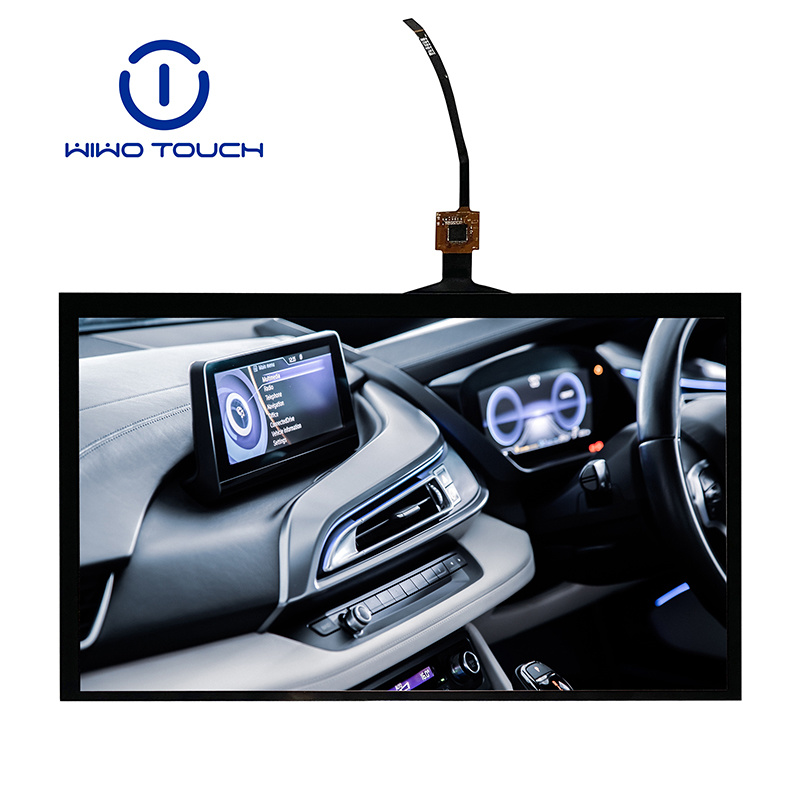

10.1 Inch PCAP Touch Screen For Medical

Category:

1. Model number of quality 10.1 inch touch screen: 002ACTL101GG 2. Structure: Glass Lens+ITO Glass+FPC 3. Touch type: Single-touch or Multi touch 4. Application: Smart control, Industrial, Intelligent robots, Handheld device, etc 5. Interface type: IIC control 6. Color: Black

Description

Product Feature

1.High-quality materials and special treatments
This touchscreen is made of soda-lime glass with chemically strengthened materials, providing a solid foundation for the screen. Surface treatments can be selected from AR (anti-reflective), AF (anti-fingerprint), AG (anti-glare), and water-resistant coatings, which not only ensure clear display in medical environments but also resist frequent disinfection operations, meeting the special requirements of medical settings. Please provide the text you want to be translated.

2.Wide temperature stability

Its operating temperature range is -20℃ to +70℃, with humidity ≤ 90% RH. It can operate stably even in extreme environments such as ICUs and emergency rooms, ensuring the normal use of medical equipment and meeting the high requirements for equipment stability in medical equipment procurement. Please provide the text you want to be translated.

3.High-precision touch control
Adopting PCAP 10-point touch technology, it supports operation with gloves on, with a response time of less than 10ms.

Product parameter

Product name	10.1 inch capacitive touch screen
Brand Name	WIWOTOUCH
Material	Sodalime, Chemical Reinforcement
Touch type	PCAP 10 points touch (Can be customized)
Application	Industrial, Handheld device, Smart control, etc
Interface type	IIC/USB
Structure	Glass Lens+ITO Glass+FPC
Cover Glass Dimension	229.6±0.3*149.7±0.3 mm
Cover Lens VA	217.96±0.15*136.6±0.15 mm
Cover Glass Thickness	1.1±0.05 mm
ITO Glass Thickness	0.7±0.05 mm
Total Thickness	2±0.1 mm
LCD resolution	TBD (As you need)
FPC	6 PIN
IC Model	FT5426
Transmittance	≥85%
Surface Hardness	6H
Operating Environment	-20℃~+70℃,≤90%RH
Storage Environment	-30℃~+80℃,≤90%RH
Operating Voltage	2.8 V-3.3 V
Interface Voltage	2.8 V-3.3 V
Surface treatment	AR(Anti-reflective); AF(Anti-fingerprint); AG(Anti-glare); waterproof
General Tolerance	±0.2mm
Available operating systems	Android/Linux/Windows
Certificates	RoHS/Reach/ISO9001
Sample delivery	15 working days
Mass production delivery	2-4 weeks, according to customer requirements, the delivery time is slightly changed
Guarantee period	12 months
Packing	Plastic tray or antistatic bag or foam box or vacuum bag + carton

Customized Solutions

From screen resolution to FPC interface, we offer comprehensive customized services to meet special requirements for our clients. Whether in industrial, handheld devices, or intelligent control and other different application scenarios, personalized customization can be carried out according to specific requirements.
