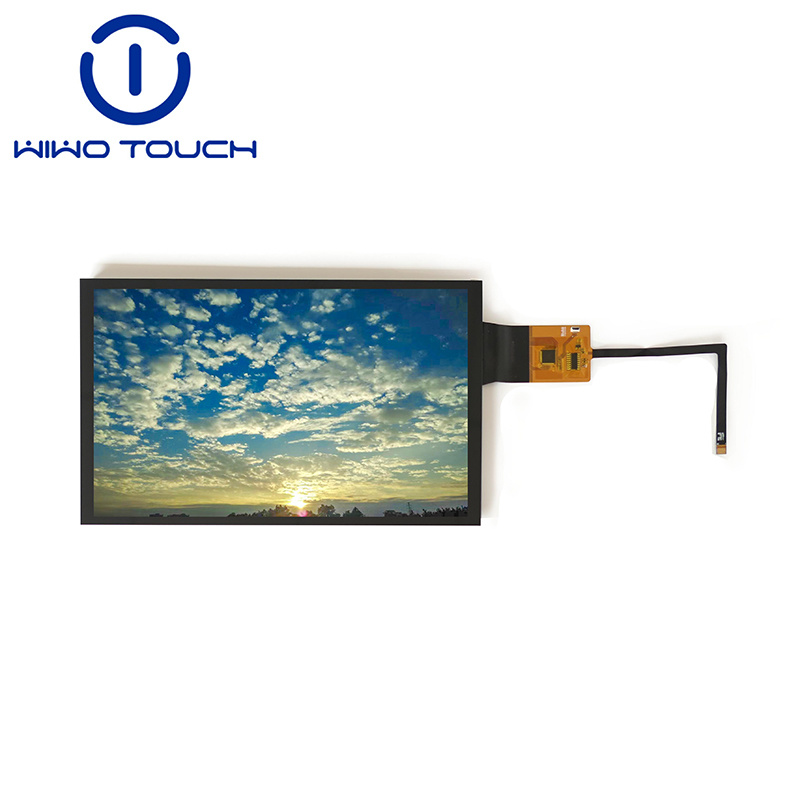

10.1 inch capacitive touch panel
1. Model number of quality 10.1 inch touch screen: 157ACSR101GG 2. Structure: Glass Lens+ITO Glass+FPC 3. Touch type: Single-touch or Multi touch 4. Application: Smart control, Industrial, Intelligent robots, Handheld device, etc 5. Interface type: IIC control
Description
Product Feature
1.Industrial-Grade Durability
Constructed with high-quality sodalime glass and featuring a 6H surface hardness rating, our touch panels resist scratches and wear even in harsh operating conditions (-20℃~+70℃). This durability minimizes replacement costs and ensures consistent performance in manufacturing facilities.
2.Superior Performance Metrics
- Transmittance ≥85%: Ensures clear visibility in various lighting conditions
- Multi-OS Compatibility: Seamless integration with Android, Linux, and Windows systems
- Fast Response: Equipped with FT5526EEZ/CH554G IC for precise touch recognition
- Wide Operating Voltage: 2.8V-3.3V for versatile power integration
Product Parameter
| Product name | 10.1 inch capacitive touch screen |
| Brand Name | WIWOTOUCH |
| Material | Sodalime |
| Touch type | PCAP 10 points touch (Can be customized) |
| Application | Industrial, Handheld device, Smart control, etc |
| Interface type | IIC/USB |
| Structure | Glass Lens+ITO Glass+FPC |
| Cover Glass Dimension | 237.86±0.2*147.86±0.2 mm |
| Cover Lens VA | 216.98±0.15*135.76±0.15 mm |
| Cover Glass Thickness | 0.7±0.05 mm |
| ITO Glass Thickness | 0.55±0.05 mm |
| Total Thickness | 1.7±0.1 mm |
| LCD resolution | TBD(As you need) |
| FPC | 6 PIN |
| IC Model | FT5526EEZ/CH554G |
| Transmittance | ≥85% |
| Surface Hardness | 6H |
| Operating Environment | -20℃~+70℃,≤90%RH |
| Storage Environment | -30℃~+80℃,≤90%RH |
| Operating Voltage | 2.8 V-3.3 V |
| Interface Voltage | 2.8 V-3.3 V |
| Surface treatment | AR(Anti-reflective); AF(Anti-fingerprint); AG(Anti-glare); waterproof |
| General Tolerance | ±0.2mm |
| Available operating systems | Android/Linux/Windows |
| Certificates | RoHS/Reach/ISO9001 |
| Sample delivery | 15 working days |
| Mass production delivery | 2-4 weeks, according to customer requirements, the delivery time is slightly changed |
| Guarantee period | 12 months |
| Packing | Plastic tray or antistatic bag or foam box or vacuum bag + carton |
Flexible Customization Options
We understand that industrial applications have unique requirements. Our 10.1 inch touch screens support customization of:
- Touch point configurations (beyond standard 10-point)
- Surface treatments (AR anti-reflective, AF anti-fingerprint, AG anti-glare, waterproof)
- Interface types (IIC/USB)
- LCD resolution matching
- FPC specifications
Contact our sales team to discuss your specific needs and request a custom quotation for bulk orders.
