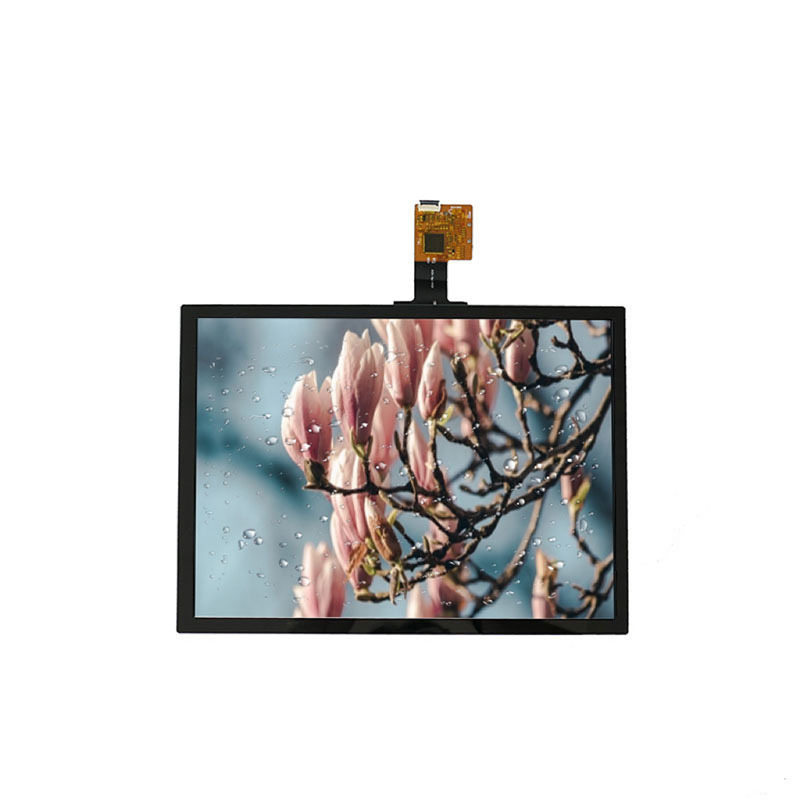

10.4 inch capacitive touch panel

Category:

1.Model number: 059ACMK104GG-V2.0 2.Application: Smart control, Touch table, Industrial control, etc 3.Structure: Glass Lens + ITO glass sensor+FPC 4.Touch type: Multi touch(can be customized) 5. Certificates: Reach, RoHS, ISO9001

Description

Product Feature

1.Materials and Structure
This touch panel adopts a structure of glass lens + ITO sensor + FPC. The glass lens is durable and scratch-resistant, while the ITO sensor ensures precise touch detection. The FPC (flexible printed circuit) facilitates connection and integration into different devices, thereby reducing the assembly cost of your production line.

2.Interface Type
This touch panel uses the IIC interface, providing a reliable and efficient communication protocol. It is compatible with various microcontrollers and systems, minimizing compatibility issues during integration.

3.Touchscreen
Our touchscreen supports multi-touch functionality and can be customized according to your needs. This enables users to have intuitive and seamless interactions, thereby enhancing the overall user experience.

Product Parameter

Product name	10.4 Inch projected capacitive touch screen
Brand Name	WIWOTOUCH
Touch type	Multi touch(can be customized)
Application	Smart control, Automotive, Self-Service Kiosk, etc
Material	TBD
Interface type	IIC
Color	Black
Structure	Glass Lens+ITO sensor+FPC
Cover Glass Dimension	229.2±0.15*176.65±0.15 mm
Cover Lens VA	212.8±0.2*159.80±0.2 mm
Cover Lens Thickness	0.7±0.05 mm
Film sensor Thickness	0.55 mm
SCA	0.2 mm
Total Thickness	1.5±0.15 mm
LCD resolution	TBD(As you need)
IC Model	ILI2511
FPC	6 PIN
Transmittance	≥85%
Surface Hardness	6 H
Operating Environment	-10℃~+60℃,≤90% RH
Storage Environment	-20℃~+70℃,≤90% RH
Operating Voltage	3.3 V
Interface Voltage	3.3 V
Surface treatment	As you need
General Tolerance	±0.2mm
Available operating systems	Android/Linux/Windows/Raspberry PI
Certificates	RoHS/Reach/ISO9001
Sample delivery	15 working days
Mass production delivery	2-4 weeks, according to customer requirements, the delivery time is slightly changed
Guarantee period	12 months
Packing	Plastic tray or antistatic bag or foam box or vacuum bag + carton

Product Application

Smart Control: Ideal for integrating into smart home systems, industrial control panels, and other smart devices.

Automotive: In the automotive industry, this touch panel can be used for in-car infotainment systems, navigation displays, and climate control interfaces.

Self-Service Kiosk: For self-service kiosks in retail stores, banks, and public areas, the 10.4 inch capacitive touch panel offers a user-friendly interface.
