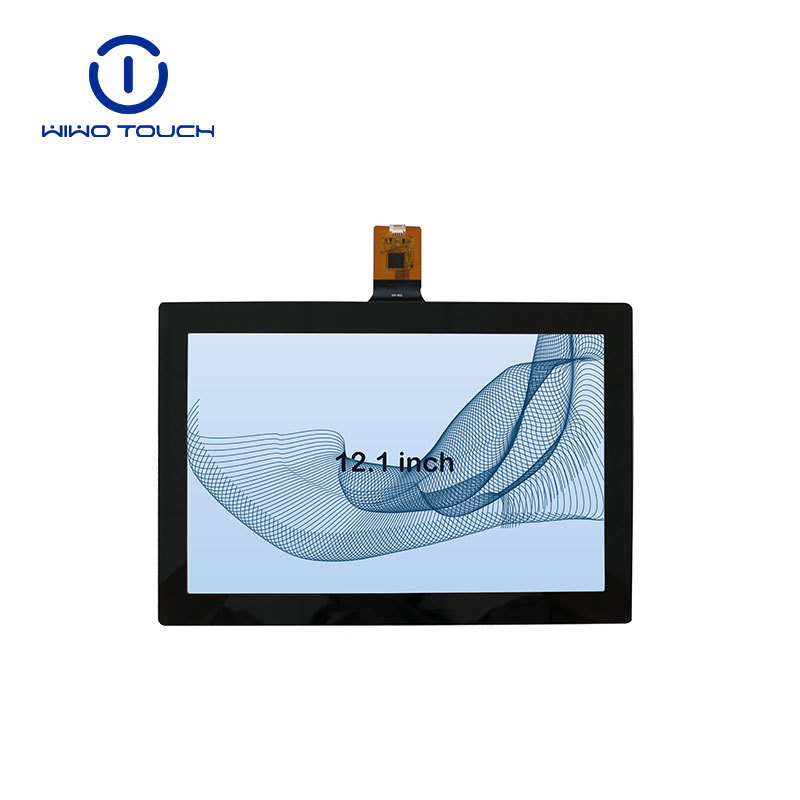

12.1 inch capacitive touch panel
1.Model number: 173ACJC121GG 2.Application: Self-service terminals 3.Structure: Glass Lens+ITO Glass+FPC 4.Touch type: Multi Touch
Description
Product Feature
- Touch type: PCAP 10 points touch. It supports glove operation, which is suitable for high - frequency touch scenarios of self - service terminals. Whether in cold weather or other situations where gloves need to be worn, the touch panel can respond sensitively.
- Interface type: USB. It reduces the integration difficulty for terminal manufacturers and no additional driver development is required, saving your time and cost in the integration process.
- Operating Environment: -20℃~+70℃, ≤45～90%RH. It is suitable for outdoor/industrial self - service terminals, reducing procurement losses in extreme environments. Whether it is hot summer or cold winter, the touch panel can work normally.
- Storage Environment: -30℃~+80℃, ≤45～90%RH. Facilitates the storage and transportation of the product.
Product Parameter
| Product name | 12.1" 10 points touch glass for self-service terminals |
| Brand Name | WIWOTOUCH |
| Touch type | PCAP 10 points touch |
| Application | self-service terminals |
| Interface type | USB |
| Structure | Glass Lens+ITO Glass+FPC |
| Cover Glass Dimension | 298.00±0.2*204.00±0.2 mm |
| Cover Lens VA | 261.12±0.2*163.20±0.2 mm |
| Cover Lens Thickness | 0.7 mm |
| ITO Glass Thickness | 1.1 mm |
| Total Thickness | 2.0±0.15 mm |
| LCD resolution | TBD(As you need) |
| IC Model | ILI2511 |
| Transmittance | ≥85% |
| Surface Hardness | 6H |
| Operating Environment | -20℃~+70℃,≤45～90%RH |
| Storage Environment | -30℃~+80℃,≤45～90%RH |
| Operating Voltage | 2.8 V-3.3 V |
| Interface Voltage | 2.8 V-3.3 V |
| Surface treatment | AR(Anti-reflective); AF(Anti-fingerprint); AG(Anti-glare); waterproof |
| General Tolerance | ±0.2mm |
| Available operating systems | Android/Linux/Windows |
| Certificates | RoHS/Reach/ISO9001 |
| Sample delivery | 15 working days |
| Mass production delivery | 2-4 weeks, according to customer requirements, the delivery time is slightly changed |
| Guarantee period | 12 months |
| Packing | Plastic tray or antistatic bag or foam box or vacuum bag + carton |
Stable Supply Chain
Bulk purchase guarantee: 2 - 4 weeks of mass production delivery time, supporting flexible orders (500 - 10000 pieces), which is adapted to the purchaser's JIT production plan. This ensures that you can get the required touch panels in a timely manner to avoid production delays caused by material shortages.
Certification Compliance
Passed RoHS/Reach/ISO9001 certifications, meeting global market access standards and reducing procurement compliance risks. You can safely use our products in various markets around the world without worrying about compliance issues affecting your business.
Customization Flexibility
Supports customization of cover glass size and surface treatment (AR/AF/AG), and provides one - to - one technical docking to shorten the R & D cycle of terminal products. We can tailor the touch panel according to your specific needs, making your terminal products more competitive in the market.
Message
If you are interested in our products, please leave your email and we will contact you as soon as possible. Thank you!
