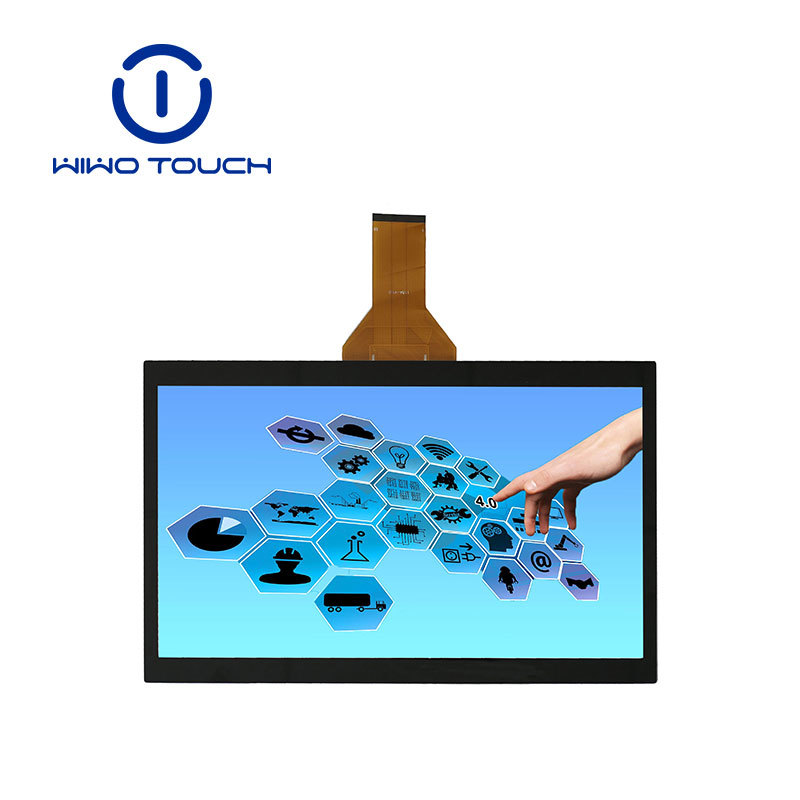

14 inch capacitive touch panel

Category:

1.Product attributes:118ACCD140GG-V1.0 2.Interface：USB/I2C 3.OS：Windows、WinCE、Android、Linux 4.Cover lens thinckness: 1.8mm 5.ITO Glass Thickness: 0.7mm

Description

Product Feature

1.Durability Guarantee
This touchscreen is equipped with 1.8mm tempered glass, with a surface hardness of 6H, which can effectively resist scratches and collisions during daily use. At the same time, it adopts various surface treatment technologies such as AR (anti-reflection), AF (anti-fingerprint), and AG (anti-glare), which not only reduces fingerprint residue and keeps the screen clean and beautiful, but also reduces the impact of environmental light on the display effect.

2.Superb Environmental Adaptability
This 14-inch capacitive touchscreen has excellent environmental adaptability. Its working temperature range covers -20℃ to +70℃, and it can operate stably in a humidity environment of ≤90%. Whether in cold outdoor conditions, hot industrial workshops, or humid working scenarios, it can maintain good performance, especially suitable for use in extreme environments such as military and outdoor operations.

3.High Compatibility
It widely supports mainstream operating systems such as Android, Linux, and Windows. It is designed with an IIC interface (6 PIN FPC) and can easily connect and integrate with various devices.

Product parameter

Model Number	118ACCD140GG-V1.0
Product Name	14 inch capacitive touch screen
Application	GPS navigation, smart furniture, industrial
Cover Glass Dimension	329.1±0.25*208.92±0.25mm
Cover Lens VA	310.37±0.2*175.02.±0.2mm
Sensor Dimension	327.1±0.2204.92.±0.2mm
Structure	Cover Lens + ITO Glass+FPC
Material	sodalime
Cover Lens Thickenss	1.8mm
ITO Glass Thickness	0.7mm
Other Tolerance	±0.2mm
FPC	68 PIN
Resolution	TBD
Transmittance	≥85%
surface hardnsee	≥6H
Operating Environment	-25℃~+60℃,≤95%RH
Storange Environment	-40℃~+70℃,≤95%RH
Interface	TBD
Touch points	Multi Point Touch
Touch panel	Support Customization
Customized Function	Logo surface treatment color and so on
Warranty	1 Year
Certificate	RoHS

Compliance and Certification

The 14-inch capacitive touchscreen of WIWOTOUCH has obtained a series of international authoritative certifications such as RoHS, Reach, and ISO9001, fully meeting the standards and requirements of global industrial procurement.
