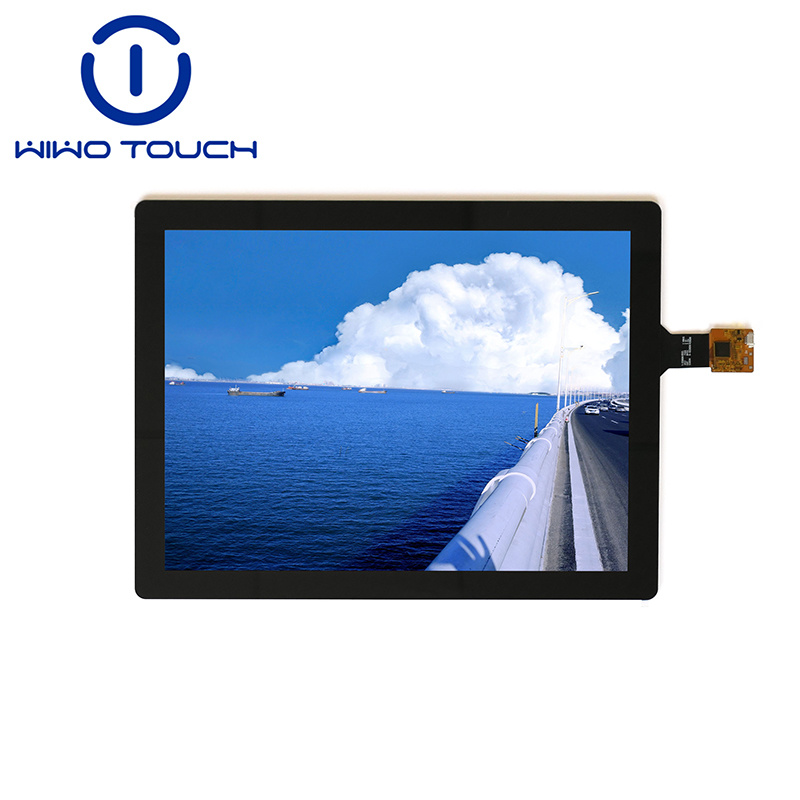

15 inch capacitive touch panel for POS machine
1.Model number: 112ACBL150GG-V2.0 2.Application: Interactive touch table, smart control, Industrial control, etc 3.Structure: Glass Lens + ITO Glass+FPC 4.Touch type: Multi touch(can be customized) 5. Certificates: Reach, RoHS, ISO9001
Description
Product Feature
1. Structure
The touch screen has a well - designed structure of Glass Lens + ITO Glass + FPC. The cover glass dimension is 345.58±0.3 * 269.52±0.3 mm, with a cover lens VA of 305 * 229 mm and a thickness of 1.1 mm. The ITO glass thickness is 0.7 mm, and the total thickness is 2±0.15 mm. This structure not only ensures durability but also provides excellent touch performance.
2.Clear Visuals
With a transmittance of ≥85%, the touch screen offers clear and vivid visuals. The LCD resolution can be customized as per your requirements (TBD - As you need), ensuring that your content is displayed with the highest quality.
3.Wide Operating Environment
It can operate in environments ranging from - 10℃ to +60℃ and with a relative humidity of ≤90% RH. The storage environment can be as low as - 20℃ to +70℃, ≤90% RH, making it suitable for both indoor and outdoor applications.
Product Parameter
| Product name | 15 Inch projected capacitive touch screen |
| Brand Name | WIWOTOUCH |
| Touch type | Multi touch(can be customized) |
| Application | Touch table, Electrical appliance, Medical, POS, etc |
| Material | Sodalime, Chemical Reinforcement |
| Interface type | IIC |
| Color | Black |
| Structure | Glass Lens+ITO Glass+FPC |
| Cover Glass Dimension | 345.58±0.3*`269.52±0.3 mm |
| Cover Lens VA | 305*229 mm |
| Cover Lens Thickness | 1.1 mm |
| ITO Glass Thickness | 0.7 mm |
| Total Thickness | 2±0.15 mm |
| LCD resolution | TBD(As you need) |
| IC Model | ILI2511 |
| FPC | 10 PIN |
| Transmittance | ≥85% |
| Surface Hardness | 6H |
| Operating Environment | -10℃~+60℃,≤90% RH |
| Storage Environment | -20℃~+70℃,≤90% RH |
| Operating Voltage | 5 V |
| Interface Voltage | 3.3 V |
| Surface treatment | As your need. |
| General Tolerance | ±0.2mm |
| Available operating systems | Android/Linux/Windows/Raspberry PI |
| Certificates | RoHS/Reach/ISO9001 |
| Sample delivery | 15 working days |
| Mass production delivery | 2-4 weeks, according to customer requirements, the delivery time is slightly changed |
| Guarantee period | 12 months |
| Packing | Plastic tray or antistatic bag or foam box or vacuum bag + carton |
Customization Options
We understand that different procurement needs vary. That's why we offer customization in surface treatment, as well as support for various available operating systems such as Android/Linux/Windows/Raspberry PI. Whether you need a specific look for your product or compatibility with a particular operating system, we can meet your requirements.
Quality Assurance
Our product comes with certificates such as RoHS/Reach/ISO9001, ensuring that it meets international quality and environmental standards. We also offer a 12 - month guarantee period, giving you peace of mind in your purchase.
Procurement Information
- Sample Delivery: We provide sample delivery within 15-20 working days, allowing you to test the product before making a bulk purchase decision.
- Mass Production Delivery: For mass production, the delivery time is 4 -5 weeks, which can be slightly adjusted according to customer requirements.
- Packing: The product is packed in a combination of plastic tray or antistatic bag or foam box or vacuum bag + carton, ensuring safe transportation.
