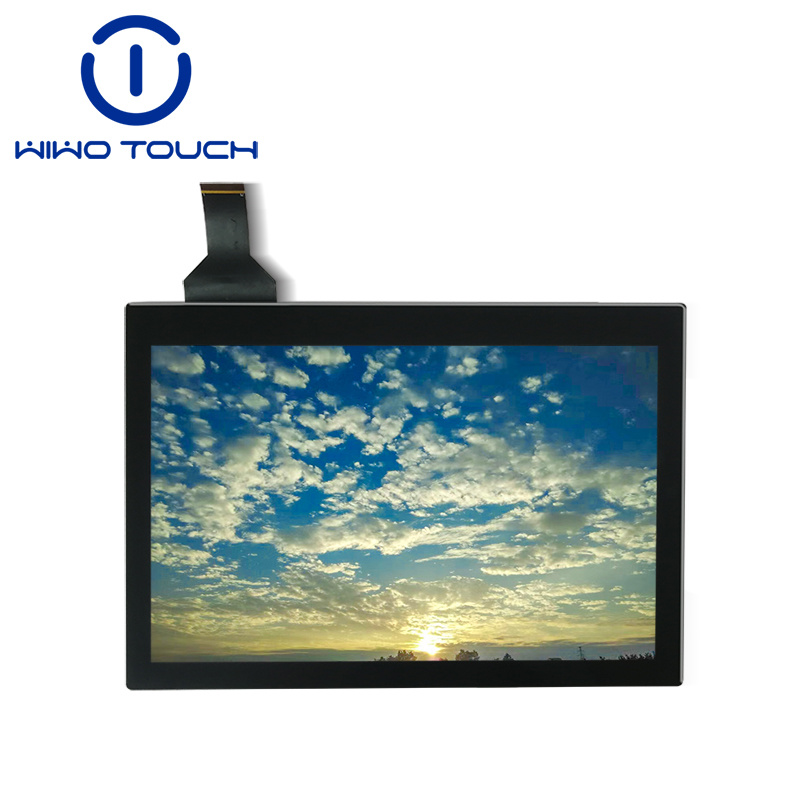

12.1 Inch Capacitive Touch Panel for industrial
1.Model number:CCX121GG213-V1.0 2.Application:Medical,Industrial,Smart control,etc 3.Structure:Glass Lens+ITO Glass+FPC 4.Touch type:Multi Touch
Description
Product Superiority
- Customizable Multi-Touch Functionality: Supports multi-touch operations for intuitive control, and can be adjusted to match your specific application needs—whether for industrial control panels, medical devices, or smart control systems. This flexibility eliminates the risk of mismatched solutions, saving you time and resources.
- Versatile Surface Treatments: Equipped with AR (Anti-reflective), AF (Anti-fingerprint), AG (Anti-glare), and waterproof features. AR ensures clear visibility in bright environments, AF keeps the screen clean from smudges (critical for medical devices), AG reduces glare, and waterproofing protects against moisture—perfect for diverse industrial and medical use cases.
- Superior Durability: Boasts a surface hardness of ≥6H (cover lens) to resist scratches, impacts, and daily wear. This extends the lifespan of your equipment, lowering maintenance and replacement costs— a key consideration for procurement teams focused on long-term value.
- Wide Temperature Adaptability: Operates reliably in temperatures from -20℃ to +70℃ and stores safely from -30℃ to +80℃, with humidity tolerance up to 90% RH. This makes it suitable for harsh industrial settings, cold storage facilities, and medical environments with strict temperature controls.
Product Parameter
| Product Name | 12 Inch PCAC Touch Screen |
|---|---|
| Brand Name | WIWOTOUCH |
| Touch Type | Multi Touch (Can be customied) |
| Application | Industrial, Medical device, Smart control, etc |
| Interface Type | TBD(As you need) |
| Structure | Cover Lens+ITO Glass Sensor +FPC |
| Cover Glass Dimension | 291±0.3*202.16.4±0.3 mm |
| Cover Lens VA | 262.62±0.3*164.70±0.3mm |
| Cover Lens Thickness | 0.55mm |
| ITO Glass Thickness | 1.8mm |
| Total thickness | 2.55±0.1mm |
| LCD Resolution | TBD (AS you need) |
| IC Modal | TBD (AS you need) |
| FPC | 71PIN |
| Transmittance | ≥85% |
| Surface Hardness | ≥6H |
| Operating Environment | -20℃~+70℃,≤45%-90% RH |
| Storage Environment | -30℃~+80℃,≤45%-90% RH |
| Surface treatment | AR(Anti-reflective); AF(Anti-fingerprint); AG(Anti-glare); waterproof |
| General Tolerance | ±0.2mm |
| Available operating systems | Android/Linux/Windows |
| Certificates | RoHS/Reach/ISO9001 |
| Sample delivery | 15 working days |
| Mass production delivery | 2-4 weeks, according to customer requirements, the delivery time is slightly changed |
| Guarantee period | 12 mouths |
| Packing | Plastic tray or antistatic bag or foam box or vacuum bag + carton |
Certifications
- Global Compliance Certifications: Fully certified with RoHS, Reach, and ISO9001—ensures adherence to international environmental, health, and quality standards.
Fast, Flexible Delivery
- Sample delivery: 15 working days (ideal for prototype testing, quality checks, and compatibility verification before bulk orders).
- Mass production delivery: 2-4 weeks (adjustable based on your order volume, timeline, and customization needs—we prioritize meeting your production schedules).
Warranty
- 12-Month Warranty: Covers manufacturing defects and performance issues, providing peace of mind and reducing post-purchase risks. This protects your budget and ensures long-term product reliability.
- Protective, Customizable Packaging: Options include plastic tray, antistatic bag, foam box, or vacuum bag + carton. Antistatic and shockproof packaging minimizes damage during shipping, reducing return rates and supply chain disruptions.
