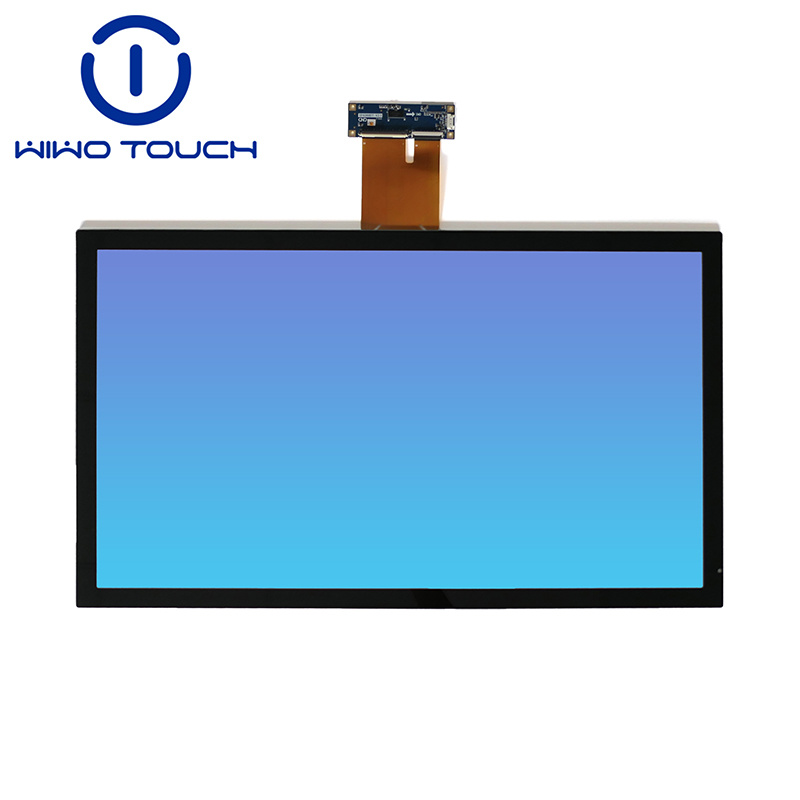

21.5 inch capacitive touch panel for industrial

Category:

Capacitive touch panel

Inquiry

PDF

1.Model Number：024ACCD215GG-V2.0 2.Structure：G+G 3.Drive IC:ILI2510 4.Application:Industrial medical equipment

Description

Product Feature

Advanced driver IC
Equipped with the ILI2510 driver IC, this advanced chip brings extremely outstanding response speed and precise touch recognition capability to the touchscreen. In terms of click instructions, ILI2510 can quickly and accurately capture and feedback, providing end-users with a smooth and natural touch interaction experience.

Precise size specifications
1.Cover Glass Dimension: The size is 512.24±0.3 * 303.71±0.3 mm. The strictly controlled tolerance range ensures the perfect fit between the glass cover plate and other components, reducing assembly problems caused by size deviations and improving production efficiency.
2.Window AA: The effective visible area is 476.9 * 268.3 mm, providing users with a broad and clear visual display space, meeting the requirements for information display in different application scenarios.
3.Sensor Dimension: The sensor size is 489±0.3 * 284.21±0.3 mm, precisely matching the touch operation area, ensuring that each touch can be accurately perceived, significantly improving the accuracy of touch operations.

Reliable structural design
Adopting the G+G (Glass + Glass) structure, this structure combines the advantages of two pieces of glass, not only enhancing the overall strength of the touchscreen, effectively resisting external force impacts, but also improving the sensitivity and light transmission performance of touch.

Product Parameter

Model Number	024ACCD215GG-V2.0
Product Name	21.5 inch capacitive touch panel
Material	sodalime
Drive IC	ILI2510
Cover Glass Dimension	512.24±0.3*303.71±0.3mm
Window AA	476.9*268.3mm
Sensor Dimension	489±0.3*284.21±0.3mm
Structure	G+G
Resolution	TBD
Channel Number	TX35*RX63
Cover Lens Thickenss	2.8mm
ITO Glass Thickness	0.7mm
Other Tolerance	±0.2mm
Interface Type	TBD
Transmittance	≥85%
surface hardnsee	≥6H
Operating Environment	-20℃~+70℃,≤90%RH
Storange Environment	-30℃~+80 ℃,≤90%RH
Touch Points	Multi Point Touch
Certificate	RoHS
