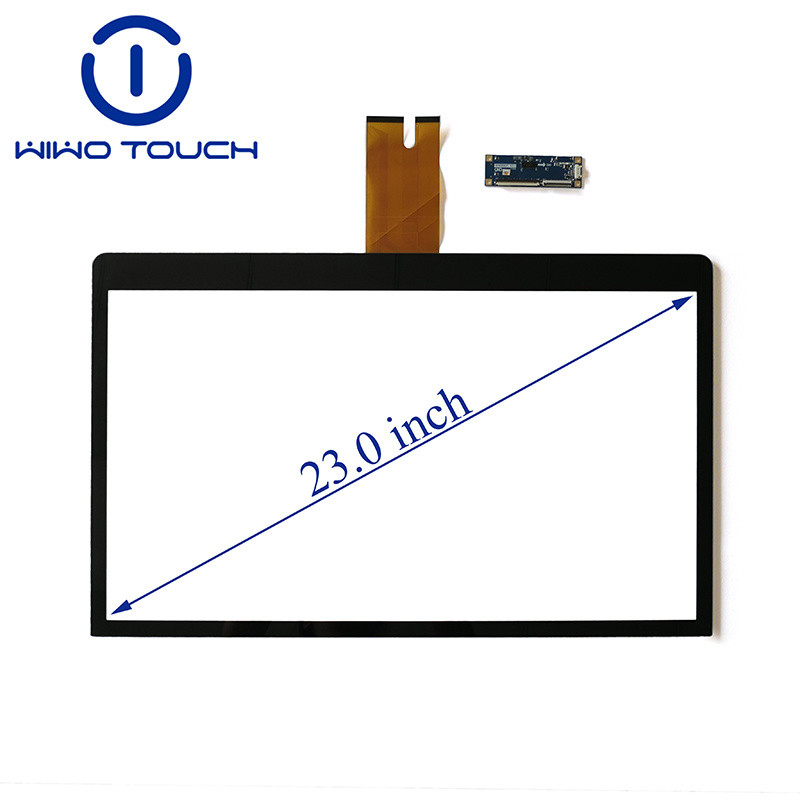

23 inch capacitive touch panel for indusrtial

Category:

1.Model number: 129ACGM230GG-V1.0 2.Application: Touch table, smart control, Industrial control, etc 3.Structure: Glass Lens + ITO Glass+FPC 4.Touch type: Multi touch(can be customized) 5. Certificates: Reach, RoHS, ISO9001

Description

Product Feature

Multi-touch function: Our touch screen supports multi-touch and can be customized according to your specific needs.
High-quality materials: The touch screen is made of sodium calcium glass, which is sturdy, durable and reliable. Sodium calcium glass is renowned for its strength and ability to resist environmental factors, ensuring the product can be used for a long time.
Convenient interface: Equipped with USB interface, the 23-inch touch screen is easy to connect and can be integrated into the existing system. The simplicity of this connection not only saves time during installation but also reduces the overall implementation cost.

Surface Hardness: The surface hardness of 6H provides good resistance to scratches and abrasions, ensuring the longevity of the touch screen.

Product Parameter

Product name	23 Inch projected capacitive touch screen
Brand Name	WIWOTOUCH
Touch type	Multi touch(can be customized)
Application	Electrical appliance, Touch table, TV monitor, etc
Material	Sodalime
Interface type	USB
Color	Black
Structure	Glass Lens+ITO Glass+FPC
Cover Glass Dimension	539.98±0.3*336.7±0.3 mm
Cover Lens VA	511.86*288.82 mm
Cover Lens Thickness	3 mm
LCD display Thickness	0.7 mm
Total Thickness	3.95±0.3 mm
LCD resolution	TBD (As your need)
IC Model	COM-ILI2510
FPC	4 PIN
Transmittance	≥85%
Surface Hardness	6H
Operating Environment	-20℃~+70℃,≤45-85% RH
Storage Environment	-30℃~+80℃,≤45-85% RH
Operating Voltage	5 V
Interface Voltage	2.8 V- 3.3 V
Surface treatment	As your need.
General Tolerance	±0.2mm
Available operating systems	Android/Linux/Windows/Raspberry PI
Certificates	RoHS/Reach/ISO9001
Sample delivery	15 working days
Mass production delivery	2-4 weeks, according to customer requirements, the delivery time is slightly changed
Guarantee period	12 months
Packing	Plastic tray or antistatic bag or foam box or vacuum bag + carton

Applications

Electrical Appliances: The 23 - inch capacitive touch screen is an excellent addition to modern electrical appliances. It can be used in smart home devices, such as touch - controlled ovens or refrigerators, providing users with an intuitive and easy - to - use interface.

Touch Tables: In corporate meeting rooms, educational institutions, or entertainment venues, touch tables are becoming increasingly popular. Our 23 - inch touch screen can be integrated into touch tables, allowing for collaborative and interactive experiences.

TV Monitors: For digital signage, home entertainment systems, or public information displays, the 23 - inch touch screen can be used to upgrade traditional TV monitors into interactive displays.

Certificates and Quality Assurance

Certifications: The touch screen comes with RoHS/Reach/ISO9001 certifications. These certifications are a testament to the product's compliance with international standards for environmental protection and quality management.

Guarantee Period: We offer a 12 - month guarantee period, ensuring that you have peace of mind after your purchase. In the unlikely event of any product - related issues during this period, our dedicated customer support team will assist you in resolving them.
