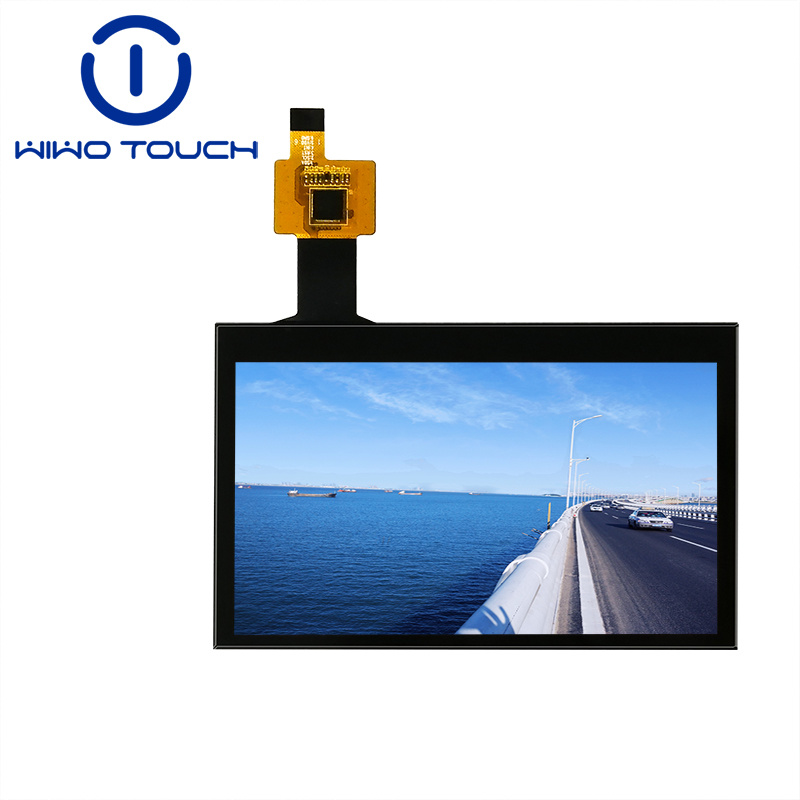

4.3 inch capacitive touch panel for farm equipment

Category:

1.Model number: CTL043GG0370-V1.0 2.Application: Smart home, Electrical appliance, Medical, Education, etc 3.Structure: Cover lens+Glass sensor+FPC 4.Touch type: Multi touch 5.Certificates: RoHS, Reach, ISO9001

Description

Product Feature

Touch Type: Multi - touch functionality, which can be customized to suit your specific operational needs. Whether it's for precision control in a greenhouse environment or easy - to - use interface for large - scale farming machinery, our multi - touch feature ensures smooth and accurate operation.

Interface Type: Equipped with an IIC interface, ensuring seamless communication and data transfer between the touch panel and other components of your farm equipment. This enables efficient integration into existing systems, reducing installation time and costs.

Structure: Composed of a Glass Lens + Glass sensor + FPC structure, our touch panel offers durability and high - quality performance. The glass lens provides protection against scratches and environmental factors, while the glass sensor ensures accurate touch detection. The FPC (Flexible Printed Circuit) allows for easy connection and flexibility in installation.

Product Parameter

Product name	4.3 Inch Capacitive touch panel
Brand Name	WIWOTOUCH
Touch type	Multi touch(can be customized)
Application	Smart home control, Electrical appliance, Medical, etc
Interface type	IIC
Structure	Glass Lens+Glass sensor+FPC
Cover Glass Dimension	105.1±0.1*66.8±0.1 mm
Cover Lens VA	96.24±0.15*55.06±0.15 mm
Cover Lens Thickness	0.7 mm
ITO Glass Thickness	0.55 mm
Total Thickness	1.45±0.1 mm
LCD resolution	480*272
IC Model	FT7311
FPC	6 PIN
Transmittance	≥85%
Surface Hardness	6H
Operating Environment	-20℃~+70℃,≤90% RH
Storage Environment	-30℃~+80℃,≤90% RH
Operating Voltage	2.8 V-3.3 V
Interface Voltage	2.8 V-3.3 V
Surface treatment	AR(Anti-reflective); AF(Anti-fingerprint); AG(Anti-glare); waterproof
General Tolerance	±0.2mm
Available operating systems	Android/Linux/Windows
Certificates	RoHS/Reach/ISO9001
Sample delivery	15 working days
Mass production delivery	2-4 weeks, according to customer requirements, the delivery time is slightly changed
Guarantee period	12 months
Packing	Plastic tray or antistatic bag or foam box or vacuum bag + carton

Product Application

Ideal for a wide range of agricultural applications, this touch panel can be used in smart home control systems for automated farmhouses, electrical appliances control in barns, and even in some medical devices used in livestock health monitoring. Its versatility makes it a must - have for modern farming operations.
