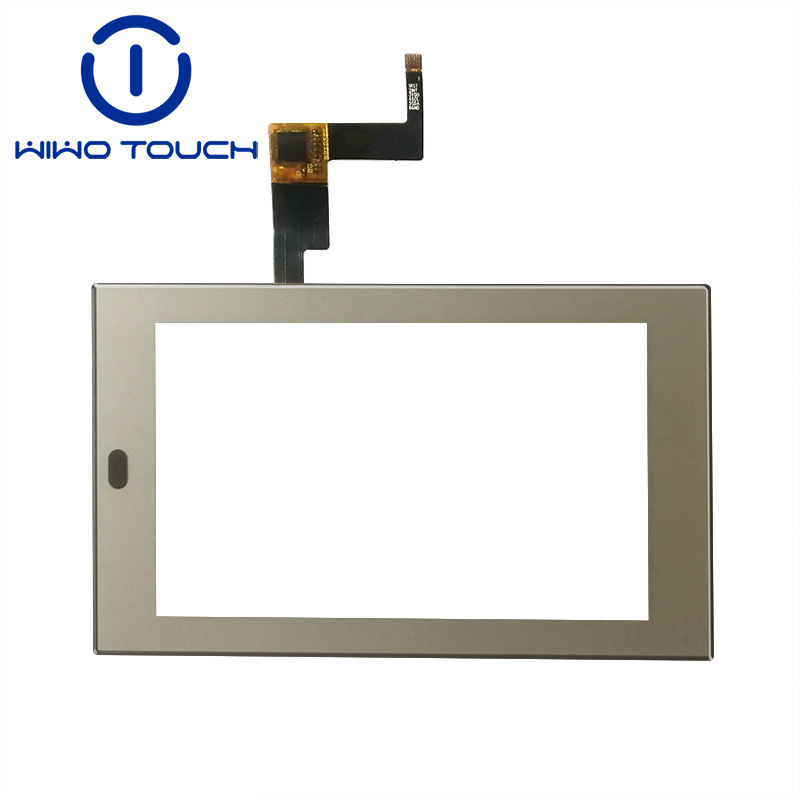

5 inch capacitive touch panel for smart home

Category:

1. Model number:CCX050FF089-V1.0 2. Structure: Glass lens+double film sensor+FPC 3. Touch type: Multi touch 4. Application: Smart control, Industrial, Handheld device, etc 5. Interface type: IIC 6. Color: Gold

Description

Product Feature

10-Point PCAP Touch Technology: Ensures accurate, multi-touch input (e.g., pinch-to-zoom, swipe) for intuitive user experiences—critical for industrial controls and smart home interfaces.
Rugged Durability: With a 6H surface hardness rating and anti-reflective (AR), anti-fingerprint (AF), anti-glare (AG), and waterproof surface treatments, it resists scratches, smudges, and environmental damage. Ideal for harsh industrial environments (-20℃~+60℃ operating temperature) and daily smart home use.
High Transmittance (≥85%): Maximizes display clarity, reducing energy consumption and enhancing visibility—perfect for devices where screen readability is non-negotiable.
Flexible Compatibility: Works seamlessly with Android, Linux, and Windows operating systems, supporting easy integration into your existing device ecosystems.
Global Compliance: Certified by RoHS, Reach, and ISO9001, ensuring adherence to international environmental and quality standards—eliminating compliance risks for global procurement.

Technical Specifications

Product name	5 Inch Capacitive touch panel
Brand Name	WIWOTOUCH
Touch type	PCAP 10 points touch
Application	Industrial, Handheld device, Smart control, etc
Interface type	IIC/USB
Structure	Glass Lens+double film sensor+FPC
Cover Glass Dimension	137.8±0.1*83.8±0.1 mm
Cover Lens VA	108.6±0.15*65.4±0.15 mm
Cover Lens Thickness	0.7 mm
ITO Glass Thickness	0.33 mm
Total Thickness	1.03±0.1mm
LCD resolution	TBD(As you need)
FPC	6 PIN
IC Model	GT970
Transmittance	≥85%
Surface Hardness	6H
Operating Environment	-20℃~+60℃,≤20～85%RH
Storage Environment	-30℃~+70℃,≤10～95%RH
Operating Voltage	2.8 V-3.3 V
Interface Voltage	2.8 V-3.3 V
Surface treatment	AR(Anti-reflective); AF(Anti-fingerprint); AG(Anti-glare); waterproof
General Tolerance	±0.2mm
Available operating systems	Android/Linux/Windows
Certificates	RoHS/Reach/ISO9001
Sample delivery	15 working days
Mass production delivery	2-4 weeks, according to customer requirements, the delivery time is slightly changed
Guarantee period	12 months
Packing	Plastic tray or antistatic bag or foam box or vacuum bag + carton

Customized Service

We offer customized solutions which are according to customer requirements.

Our touch screens mag be produced in a selected shape ,color , size of cover glass , touch IC ,thickness , packing,corner with logo and other additional element as per specification provided by the client.
Treament customizion: Anti-glare, Anti-fingreprint , Anti-reflective , Anti-UV , Antibacteral ,Waterproof, Vandal-proof , 3D curve sueface
IC: Atmel , ILITEK ,EETI , CYPRESS , etc.

Procurement Service Assurance

1. Flexible Delivery Plan

Sample Procurement Support: Samples will be delivered within 15 working days. The purchaser can quickly conduct performance tests and size matching verification to avoid compatibility issues after batch procurement;
Batch Delivery Cycle: 4 weeks (adjustable according to the purchase quantity), supports priority production for urgent orders to ensure that the purchaser does not delay the production progress of the terminal product, especially suitable for procurement scenarios with large fluctuations in seasonal demand.

2. Comprehensive After-sales and Packaging
12-Month Warranty Period: In the warranty period, if non-human-induced quality problems occur, new products will be replaced free of charge, and the purchaser does not need to bear the maintenance costs;
Customized Packaging: Four packaging options are provided: Plastic tray (anti-static tray), antistatic bag (anti-static bag), foam box (foam box), vacuum bag + carton (vacuum packaging + cardboard box). Cross-border procurement can choose moisture-proof vacuum packaging to avoid moisture damage during shipping.
