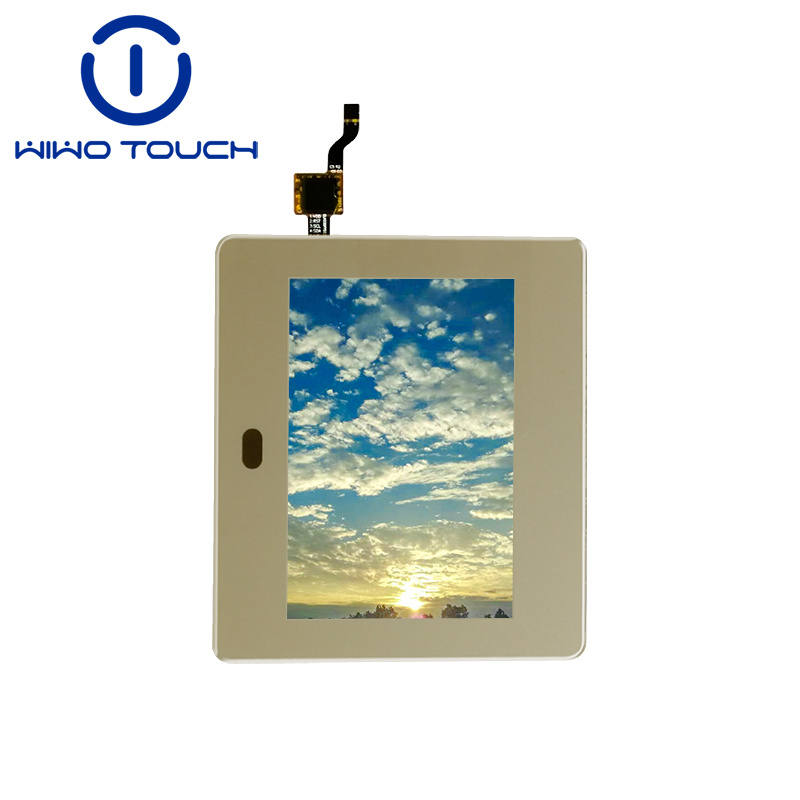

3.5 Inch Capacitive Touch Panel: 320*480 Resolution with Golden

Category:

1. Model number:CCX035FF0336-V1.0 2. Structure: Glass lens+double film sensor+FPC 3. Touch type: Multi touch 4. Application: Medical, Industrial, Handheld device, etc 5. Interface type: IIC 6. Shipment method: DHL EMS UPS TNT FEDEX

Description

Product Features

High Sensitivity Touch: Utilizes advanced capacitive touch technology, ensuring precise and rapid response.
High-Resolution Display: Provides clear and detailed display, making information easy to read.
Durability: Constructed from high-quality materials, offering excellent wear and impact resistance.
Wide Temperature Range: Capable of stable operation under various temperature and humidity conditions, suitable for diverse environments.
Compact Design: The 3.5-inch size is easy to integrate into various devices without occupying excessive space.

Technical Specifications

Product name	3.5 inch touch lcd screen
Brand Name	WIWOTOUCH
Touch type	Single touch, Gesture touch
Application	Industrial, Handheld device, Smart control, etc
Interface type	IIC
Structure	Glass Lens+ITO Glass+FPC
Cover Glass Dimension	93.4±0.1*82.8±0.1mm
Cover Lens VA	74.04±0.15*49.56±0.15mm
Cover Lens Thickness	0.7±0.05 mm
ITO Glass Thickness	0.425±0.05 mm
LCD resolution	320*480
FPC	6 PIN
IC Model	GT970
Transmittance	≥85%
Surface Hardness	6H
Operating Environment	-10℃~+60℃,≤90%RH
Storage Environment	-20℃~+70℃,≤90%RH
Operating Voltage	2.8 V-3.3 V
Interface Voltage	2.8 V-3.3 V
Surface treatment	AR(Anti-reflective); AF(Anti-fingerprint); AG(Anti-glare); waterproof
General Tolerance	±0.2mm
Available operating systems	Android/Linux/Windows
Certificates	RoHS/Reach/ISO9001
Sample delivery	15 working days
Mass production delivery	2-4 weeks, according to customer requirements, the delivery time is slightly changed
Guarantee period	12 months
Packing	Plastic tray or antistatic bag or foam box or vacuum bag + carton

Applications

Home Security Systems: Used for controlling and monitoring home security devices such as alarms and cameras.
Commercial Security Systems: Integrated into security equipment in commercial buildings, like access control and surveillance systems.
Industrial Safety Equipment: Suitable for use in factories and warehouses, providing equipment monitoring and control in high-reliability environments.
Vehicle Security Systems: Used in vehicle security devices, offering safety monitoring and control functions for drivers and passengers.

Customized Service

We offer customized solutions which are according to customer requirements.

Our touch screens mag be produced in a selected shape ,color , size of cover glass , touch IC ,thickness , packing,corner with logo and other additional element as per specification provided by the client.
Treament customizion: Anti-glare, Anti-fingreprint , Anti-reflective , Anti-UV , Antibacteral ,Waterproof, Vandal-proof , 3D curve sueface
IC: Atmel , ILITEK ,EETI , CYPRESS , etc.

Procurement Service Assurance

1. Flexible Delivery Plan
Sample Procurement Support: Samples will be delivered within 15 working days. The purchaser can quickly conduct performance tests and size matching verification to avoid compatibility issues after batch procurement;
Batch Delivery Cycle: 4 weeks (adjustable according to the purchase quantity), supports priority production for urgent orders to ensure that the purchaser does not delay the production progress of the terminal product, especially suitable for procurement scenarios with large fluctuations in seasonal demand.

2. Comprehensive After-sales and Packaging
12-Month Warranty Period: In the warranty period, if non-human-induced quality problems occur, new products will be replaced free of charge, and the purchaser does not need to bear the maintenance costs;
Customized Packaging: Four packaging options are provided: Plastic tray (anti-static tray), antistatic bag (anti-static bag), foam box (foam box), vacuum bag + carton (vacuum packaging + cardboard box). Cross-border procurement can choose moisture-proof vacuum packaging to avoid moisture damage during shipping.
